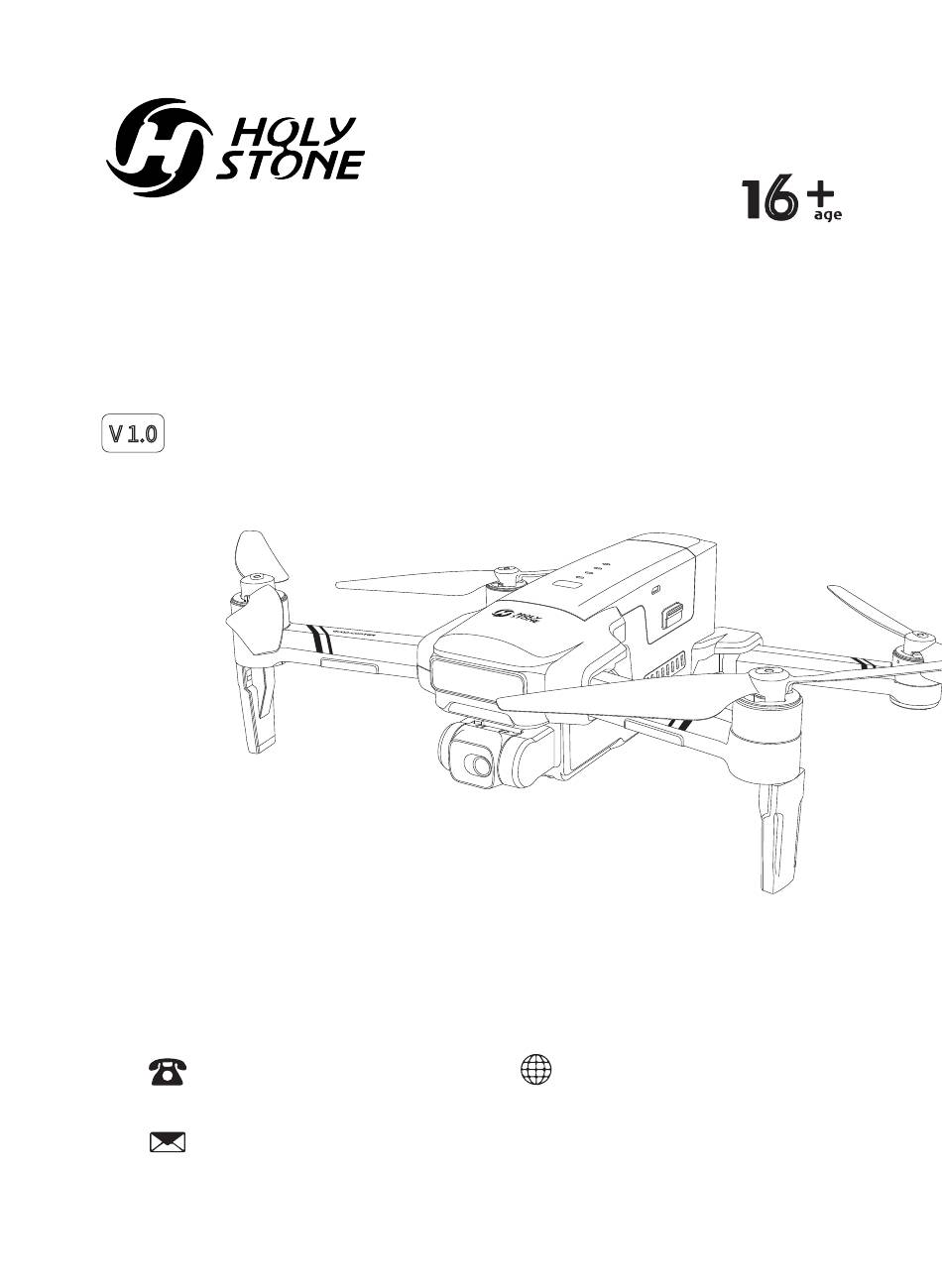

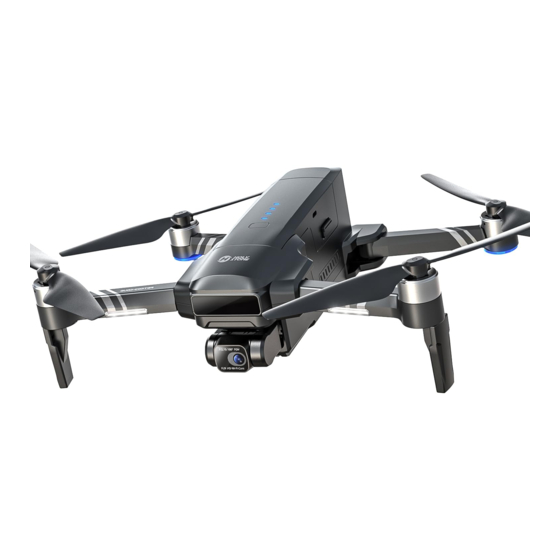

- Page 1 Instructions For Use Gebrauchsanweisung V 1.0 HS600 www.holystone.com +1(855) 888-6699 usa@holystone.com (USA) eu@holystone.com (EU) ca@holystone.com (CA)
- Page 2 English 01-44 Deutsch 45-88...
-
Page 3: Table Of Contents
Contents 1.0 Disclaimer&Warning ................. 2.0 Safety Guidelines ..................3.0 Maintenance ....................4.0 Package Contents ..................5.0 Drone Details ....................6.0 Transmitter Details 6.1 Transmitter Functions ................6.2 LCD Screen ....................7.0 Drone Battery ....................8.0 Joystick Mode ....................9.0 Installation 9.1 Download APP .................. - Page 4 11.5 Calibrating the Gyro ................11.6 Starting/Stopping the Motors ............11.7 Takeoff/Landing .................. 12.0 Functions Details 12.1 Gimbal Dial ..................... 12.2 Trimmer ....................12.3 Return to Home ..................13.0 APP Operation Instruction 13.1 Operation Interface ................13.2 Follow Me .................... 13.3 Waypoint Mode .................
-
Page 5: Disclaimer&Warning
. You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and all applicable polices and guidelines Holy Stone may make available. 2. When using this product, please be sure to strictly abide by the specifica- tion requirements and safety guidelines stated in this document. - Page 6 ④ Ensure to do a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear of the propeller, battery power and effectiveness of the indicator, etc. If after doing a complete check of the drone any problems are found, please refrain from using it until the problem has been resolved.
- Page 7 2.3 Operation Requirements： ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in case of an emergency. ③ Fly the drone back to you as soon as you are notified that the battery is running low.
- Page 8 ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery as they are a different voltage.
-
Page 9: Maintenance
3.0 MAINTENANCE ① Clean the product after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected in water under any circumstance. -
Page 10: Package Contents
Transmitter Drone Battery ×4 ×1 ×1 USB Charging Gimbal Cover Spare Propeller Cable Instructions For Use Gebrauchsanweisung V 1.0 HS600 +1(855) 888-6699 www.holystone.com ×1 ×1 usa@holystone.com (USA) eu@holystone.com (EU) ca@holystone.com (CA) Tool for Fixing Instructions For Use Propeller Tips: The gimbal cover is pre-installed on the fuselage. -
Page 11: Drone Details
5.0 DRONE DETAILS Power Button Power Indicator Propeller A Propeller B Propeller B Propeller A Gimbal and Camera TF Card Slot Foldable Arms -07-... -
Page 12: Transmitter Details
6.0 TRANSMITTER DETAILS 6.1 Transmitter Functions Phone Holder Antennas Left Joystick Right Joystick Return to Home Speed Switch (RTH) Emergency Stop Power Button Foldable Handle LCD Screen Zoom Trigger Tilt Trigger (right: zoom in; (right: tilt down; left: zoom out) left: tilt up) Take Photo Record Video... - Page 13 •GPS Mode Switch When turning on the transmitter, the default mode is the GPS Mode. Turn off GPS by pressing and holding the button ( ) for 3 seconds, and the drone enters the ATTI mode. Check the icon “ ”on the transmitter to confirm the strength of the GPS signal.
-
Page 14: Lcd Screen
6.2 LCD Screen GPS Signal Strength Transmitter Battery Level Transmitter Signal Strength Camera Status Long-distance Signal Drone Battery Flight Speed Level System Status Prompt Rate of Ascend Flight Distance and Descend Flight Speed Flight Altitude - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7.0 DRONE BATTERY Charging Port Power Indicators... -
Page 15: Joystick Mode
8.0 JOYSTICK MODE 8.1 MODE 2 (Left hand throttle MODE 2 will be default setting.) Left Joystick Right Joystick Forward Ascend Descend Down Backward Down Right Left Right Left Fly to Fly to Rotate Left Rotate Right Left Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8.2 MODE 1 Press and hold the “Take Photo”... -
Page 16: Installation
9.0 INSTALLATION 9.1 Download APP Android APP on Google play Scan the QR code, corresponding to either App Store™ or Google Play™ Store and download the HS FLY app for free. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9.2 Gimbal Cover A. -
Page 17: Drone Battery
9.3 Drone Battery Click Installation: Insert the battery into the battery compartment of the drone. Make sure it is mounted securely and that the battery buckles are clicked into place. Removal: Press the battery extraction buttons on the sides of the battery to remove it from the compartment. -
Page 18: Propellers
9.4 Propellers HEAD Installation: After distinguishing the corresponding fan blades, when installing the corresponding fan blades, align the propeller against the clamp of the motor shaft, press the blade down and then follow the direction of the lock icon “ ”... -
Page 19: Tf Card
9.6 TF Card To store your photos and videos, insert the TF card (not included) into the slot as shown above before turning on the drone. The drone supports TF card up to 128 GB. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9.7 Phone Holder Expand the phone holder and place your mobile phone adjust the clamp to secure. -
Page 20: Antenna
9.8 Antenna Before starting the flight, you can expand the two antennas on the transmitter separately. Weak Strong Optimal Transmission Zone: The signal between the drone and the transmitter is most reliable when the antennas are positioned in relation to the drone as depicted above. -16-... -
Page 21: Charging
10.0 CHARGING 10.1 Drone Battery USB Adapter (5V/3.0A) Power Bank ① Please charge the battery in the closed state. Connect the Battery to the USB Charging Cable. ② Connect the USB Charging Cable with Power Bank or a USB Adapter (5V/3.0A ) for charging. -
Page 22: Transmitter Battery
10.2 Transmitter Battery USB Adapter (5V/3.0A) Power Bank ① Please charge the battery in the closed state. Connect the Transmitter to the USB Charging Cable. ② Connect the USB Charging Cable with Power Bank or a USB Adapter (5V/3.0A ) for charging. -
Page 23: Operation Guide
11.0 OPERATION GUIDE · Pre-Flight Checklist 1. Make sure the transmitter, mobile device, and the drone battery are fully charged. 2. Make sure the drone battery and the propellers are mounted securely. 3. Make sure the drone arms are unfolded. 4. -
Page 24: Connect To Wi-Fi
③ It takes about 40 seconds for the transmitter to connect to the drone. During the connection, the transmitter will continue to emit a “Di-DiDi... Di-DiDi...” sound. Once the transmitter sends out a long beep sound, it means that the drone has been successfully paired with the transmitter. Tips: When changing another battery, you don’t need to close the transmitter and exit the APP, the drone and the transmitter can be connect-... -
Page 25: Calibrating The Compass
11.3 Calibrating the Compass Step 1: As shown above, push both joysticks to the top inner corners to enter the compass calibration. Step 2: Hold the drone horizontally and rotate the drone in 2 complete circles until the rear lights turn solid Purple. Step 3: Hold the drone vertically and rotate the drone in 2 complete circles until the front White lights and the rear Blue lights are flashing. -
Page 26: Gps Searching
11.4 GPS Searching (DO NOT use GPS Mode indoors) HEAD — Place the drone on a flat and dry surface where is unobstructed and lit . — Indicator lights will turn to blink Blue (rear) and White (front) . This means the drone is searching the GPS Signal. -
Page 27: Calibrating The Gyro
11.5 Calibrating the Gyro As shown above, push both joysticks to the top outer corners to calibrat- ing the gyro. When the drone's front white indicator lights and rear blue indicator lights change from quick flash to solid, which means the gyroscope calibration is completed. -
Page 28: Takeoff/Landing
11.7 Takeoff/Landing · Please unlock the motor before takeoff. Throttle Joystick Takeoff ① After starting the motor, push up the throttle joystick slowly and the drone rise slowly. Long Press Landing ② Long press the button on the transmitter and the drone will land automatically. -
Page 29: Functions Details
12.0 FUNCTION DETAILS 12.1 Gimbal Dial 80° The gimbal provides a steady platform for the attached camera, allowing you to capture clear, stable images and video. The gimbal can tilt the camera within a 80° range. Use the gimbal dial ( ) on the transmitter to control the tilt movement ANGLE of the camera. -
Page 30: Trimmer
12.2 Trimmer (Trim under NO GPS mode) F/B Sideways Drift Trim: If the drone tends to drift forward, hold down the Take Photo button ( ) and do not release it while pushing the direction joystick down to balance the drone. If the drone tends to drift backwards, hold down the Take Photo button and do not release it while pushing the direction joystick up to balance the drone. -
Page 31: Return To Home
12.3 Return to Home (RTH) The Return to Home (RTH) function brings the drone back to the last recorded Take-off Point. This function can only be achieved in GPS mode. There are three types of RTH: Smart RTH/Low Battery RTH/Failsafe RTH. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12.3.1 Smart RTH If the GPS signal is sufficient, Smart RTH can be used to bring the drone back... -
Page 32: App Operation Instruction
13.0 APP OPERATION INSTRUCTION 13.1 Operation Interface 1. Homepage ( ): Tap this icon to return to the main menu. 2. System Status ( ): This icon indicates drone flight status and various warning messages. 3. Transmitter Battery Level ( ) Real-time display of the current remaining battery level of the transmitter. - Page 33 6. Setting ( ): Tap the icon to enter the setting interface, settings for flight height/distance and return altitude, etc. The drone is in Beginner Mode by default, and the operator can exit Beginner Mode by setting. 7. One Key Takeoff/Landing ( ): Tap this icon once, and the drone will take off automatically to 5 feet.
- Page 34 16. Waypoint Mode: ( ) The drone will fly along the flight path drawn on screen. 17. Camera Filter ( 18. Gimbal Dial ( ): Tap this button to open the Pitch Scroll Bar which you can scroll left and right to control the camera pitch movement. 19.
-
Page 35: Follow Me
13.2 Follow Me When the Follow Me function is enabled, the drone will follow the GPS in your smart phone to follow you wherever you go. 1. Ensure the drone's flight range is within 30~160 feet/10~50m. 2. Click the “ ”... -
Page 36: Waypoint Mode
13.3 Waypoint Mode It is recommended to enlarge the map if you want to use Waypoint Mode. 1. Click the“ ” icon on the app interface, then click the “ ” icon, read and understand the prompts. 2. Set any point (16 points at most) on the screen to create a path. Click“ ”... -
Page 37: Point Of Interest
13.4 Point of Interest 1. Click the “ ” icon first, then select the “ ” icon, and follow the prompt box to enter the Point of Interest function. 2. The drone will record it’s flight position the moment you enter this function as the point of interest. -
Page 38: Take Photo/Video
13.5 Take Photo/Video 1. Click the “ ” icon to switch between photo and video recording modes. 2. Click the “ ” icon to take photo, click once to take a photo. 3. Click the “ ” icon to record video, click once to start recording, and click again to stop recording. -
Page 39: Specifications
14.0 SPECIFICATIONS DRONE Model: HS600 Weight: 541g/19.08oz Max Flight Time: 28 minutes (per battery) Operating Temperature Range: 32° to 104°F Size: 177 × 104 × 58 mm (Folded) 337 × 240 × 58 mm (Unfolded) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -... - Page 40 CAMERA Operating Frequency: 5.15 ~ 5.35GHz , 5.725 ~ 5.825GHz Photo Resolution: 3840×2160P (stored in TF card) 3840×2160P (stored on mobile phone) Video Resolution: 3840×2160P (stored in TF card) 1280×720P (stored on mobile phone) Transmission Distance: 6500~9800 feet/2000~3000m (outdoor and unobstructed) Lens: FOV:100°...
- Page 41 TRANSMITTER Operating Frequency: 2.402-2.478GHz Transmitter Power (EIRP): <16dBm Flight Distance: 6500~9800 feet/2000~3000m (outdoor and unobstructed) Battery Type: 3.7V 1500mAh Li-Po Battery Mobile Device Holder: 4.7˝ to 6.5˝ Smart Phones Operating Temperature Range: 32° to 104°F Charging Time: about 2 hours - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - USB TYPE-C CHARGING CABLE Voltage: 5V...
-
Page 42: Trouble Shooting
15.0 TROUBLE SHOOTING Problem Solution The drone is in the gyroscope When the drone is powered on, calibration state. Please place the the indicator light keeps flashing. drone on an flat and level surface. Place the drone on a flat, level The drone cannot hover after surface and repeat the gyro takeoff and tilts to one side. -
Page 43: General Information
17.0 GENERAL INFORMATION FCC Statement: Any Changes or modifications not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interfer-... - Page 44 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 45 2) I'utillsateur de I'appareil doit accepterbrouillage radioélectrique subi meme si le brouillage est susceptible d'encompromettre le fonctionnement. mauvais fonctionnement de I'appareil. Cet appareil numériquie de la classe B est conforme à la norme NMB-003 du Canada. CAN NMB-3 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
- Page 46 BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery may cause a fire, smoke or explosion as well. 2. Always check the battery’s condition before charging or using it. 3. Replace the battery if it has been dropped, or any odor, overheating, discolouration, deformation or leakage happens.
- Page 47 We, Xiamen Huoshiquan Import & Export CO.,LTD hereby, declare that the essential requirements compliance with the Directive 2014/53/EU, the RoHS Directive 2011/65/EU and Safety Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: REMOTE CONTROL MODEL/RADIO CONTROLLED Model/Mark : HS600/HOLYSTONE -43-...
- Page 48 The Statement of compliance is available at the following address: http://www.holystone.com/Download/CE/HS600_EU_DOC.pdf This product can be used across EU member states. MANUFACTURER INFORMATION Manufactured by Xiamen Huoshiquan Import & Export CO.,LTD Room 703,No. 813-2 Xiahe Road, Siming District, XIAMEN, China +1(855) 888-6699 FAA REGISTRATION: PLEASE FOLLOW ALL FEDERAL, STATE AND LOCAL FAA LAWS.
