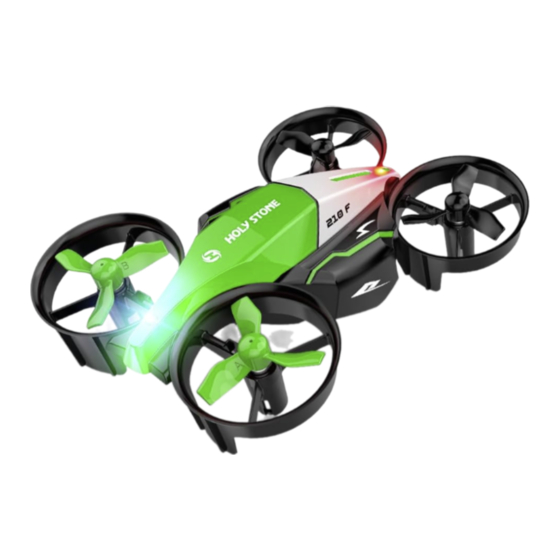

- Page 1 Instructions For Use Gebrauchsanweisungen V 1.0 HS210F +1(855) 888-6699 www.holystone.com eu@holystone.com (EU) usa@holystone.com (USA) jp@holystone.com (JP) ca@holystone.com (CA)
- Page 3 English 01-32 33-58 日本語 59-87 Deutsch...
-
Page 4: Table Of Contents
Contents Disclaimer & Warning ................Safety Guidelines ..................Maintenance ....................Package Contents ..................Drone Details ....................Transmitter Functions ................Joystick Mode ....................Pre-Flight Preparations Charging ....................Drone Battery ..................Propellers ....................Pairing ....................... Flight One Key Takeoff ..................One Key Landing .................. Flight Functions Speed Switch .................. - Page 5 The Land Mode Basic Operations ..................360° Rotation ..................Fixed Speed Cruise ................Attitude Adjustment Trimmer ....................Calibrate the Gyro ................Specifications ....................Contact Us ..................... General Information ...................
-
Page 6: Disclaimer & Warning
DISCLAIMER & WARNING 1. Please read this Disclaimer & Warning and Safety Guidelines carefully before using our product. This product is not recommended for people under the age of 14. By using this product, you hereby agree to this disclaimer and signify that you have read it fully. You agree that you are responsible for your own conduct and any damage caused while using this product, and any consequence. - Page 7 SAFETY GUIDELINES ④ Please perform a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear off on the propellers, battery power and effectiveness of the indicator, etc. If there is any problem found after checking the drone, please refrain from using it until the problem is resolved.
- Page 8 SAFETY GUIDELINES OPERATION REQUIREMENTS ① DO NOT use this product to follow any moving vehicles. ② During the flight, turn off the motors only in case of an emergency. ③ When the battery runs low, return the drone back to your starting point.
- Page 9 SAFETY GUIDELINES ⑦ Only use the USB charging cable that comes with the drone to charge the battery. ⑧ DO NOT connect the battery directly to wall outlets or car cigarette -lighter sockets as this will damage your battery since they have different voltages.
-
Page 10: Maintenance
MAINTENANCE ① Clean the drone after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone or batteries. ③ This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 11: Package Contents
PACKAGE CONTENTS Drone Transmitter Drone Battery USB Charging Propellers Screwdriver Cable Instructions For Use Gebrauchsanweisungen V 1.0 HS210F +1(855) 888-6699 www.holystone.com usa@holystone.com (USA) eu@holystone.com (EU) ca@holystone.com (CA) jp@holystone.com (JP) Propellers Instructions For Spanner... -
Page 12: Drone Details
DRONE DETAILS Propeller A Propeller B Propeller B Propeller A HEAD HEAD Drone Battery Power Switch... -
Page 13: Transmitter Functions
TRANSMITTER FUNCTIONS Power Indicator 360° Flip Speed Switch (Short Press)/ (Short Press)/ Headless Mode Calibrate the Gyro (Long Press) (Long Press) Left Joystick/ Trimmer Right Joystick (Short Press) One Key Takeoff Fixed Speed Cruise & Landing (Short Press)/ (Short Press)/ Light Switch Emergency Stop (Long Press) -
Page 14: Joystick Mode
JOYSTICK MODE MODE 2 (Left hand throttle MODE 2 will be the default setting.) Left Joystick Right Joystick Forward Ascend Descend Down Down Backward Left Right Left Right Fly to Fly to Rotate Rotate Left Right Left Right MODE 1 To enter MODE 1, turn on the transmitter while holding the “Speed Switch”... -
Page 15: Pre-Flight Preparations
PRE-FLIGHT PREPARATIONS CHARGING USB Adapter (5V/2A) Power Bank ① Plug one end of the USB Charging Cable into drone’ s battery. ② Plug the other end of the USB Charging Cable into a power bank or a USB adapter (5V/2A). ③... -
Page 16: Drone Battery
PRE-FLIGHT PREPARATIONS DRONE BATTERY ② ① Installation: Put the battery onto the battery slot, which is underneath the fuselage. Push the battery forward until you hear a click, which indicates that it is firmly installed. The battery should be installed firmly. Otherwise, the flight safety of your drone may be affected. -
Page 17: Propellers
PRE-FLIGHT PREPARATIONS PROPELLERS HEAD Installation: As depicted above, an “A” “B” is printed on each propeller. Put each propeller onto the correct motor shaft and press it into place. - The propellers are installed before the drone is packaged at the factory. -
Page 18: Pairing
PRE-FLIGHT PREPARATIONS All of the following operations in this manual use MODE 2. PAIRING HEAD TAIL ① Slide the Power Switch button ② Place the drone on a flat and to the right to turn on the drone. level surface, with its head facing forward and its tail pointing towards the pilot. -
Page 19: Flight
FLIGHT * The FLIGHT mode enables the drone to fly in the air. ONE KEY TAKEOFF There are two methods for takeoff. Method 1: Press the ( ) button, the drone will automatically take off and hover at 4 feet. At this time, you can control this drone using the joysticks. -
Page 20: One Key Landing
FLIGHT ONE KEY LANDING Landing When in flight, you can press the ( ) button, the drone will land automatically. You must keep your drone in visual line of sight all the time. If you can't see it, you can't control it. -15-... -
Page 21: Flight Functions
FLIGHT FUNCTIONS SPEED SWITCH Short Press This drone comes with 3 speed modes (Low/Medium/High). Short press the ( ) button to switch between low, medium, and high speed. The transmitter beeps once to indicate Low Speed, twice to indicate Medium Speed and three times to indicate High Speed. (The Low Speed is the default speed mode.) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -... -
Page 22: 360° Flip
FLIGHT FUNCTIONS 360° FLIP Short Press 10 ft After you get familiar with all the functions of the drone, you can try this amazing flip mode. When the drone is at least 10ft from the ground, press down the ( ) button, then push the right joystick forward/back- ward or leftward/rightward. -
Page 23: Headless Mode
FLIGHT FUNCTIONS HEADLESS MODE The Headless Mode is a great training tool for beginner pilots. It is also useful when the drone is too far from the pilot (which makes it difficult to tell its orientation). It keeps the drone traveling forward, backward, left, or right when you move the right joystick in those directions, regardless of which way the front of the head of the drone points to. -
Page 24: Altitude-Hold Function
FLIGHT FUNCTIONS * Why is the orientation of the drone important? In normal flying mode, the control of the drone movement can sometimes be counter-intuitive for beginners. For instance, when the drone is in the air with its head pointing to your right, if you push the right joystick forward, the drone will fly to your right, instead of flying forward. -
Page 25: Emergency Stop
FLIGHT FUNCTIONS EMERGENCY STOP The Emergency Stop function should only be used in case of emergency during the flight to avoid any damage or injury. Long Press ① Long press the ( ) button on the transmitter, the motors will stop immediately. -
Page 26: The Land Mode
THE LAND MODE * In Land mode, the drone just glide over the floor when moving. 1. Only use the LAND mode on an area that is flat, clean, smooth and free of obstacles. 2. Be sure to remove any dust, hairs or, other debris on the drone before using the LAND mode. -
Page 27: 360° Rotation
THE LAND MODE 360° ROTATION After the pairing, push the right joystick downward and hold it there. The drone will start to spin on the ground. Release the right joystick to stop this function. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - FIXED SPEED CRUISE Short press the ( ) button, the transmitter beeps once. -
Page 28: Attitude Adjustment
ATTITUDE ADJUSTMENT TRIMMER If the drone drifts or is unstable in the air when there is no wind at all, you can use the trim function to stabilize the drone. The Forward Trim If the drone tends to drift forward: 1. -
Page 29: Calibrate The Gyro
ATTITUDE ADJUSTMENT CALIBRATE THE GYRO Long Press Make sure to place the drone on a level surface before calibrating the gyro. Long press the ( ) button for 2 Seconds to calibrate the gyro. The transmitter will beep once, which indicates that the calibration is completed. -
Page 30: Specifications
SPECIFICATIONS DRONE Model: HS210F Weight: 35g/1.2oz Max. Battery Life: 7 Min. (in the air only) 12 Min. (on land only) Motor Model: 615 Operating Temperature Range: 14° to 104°F (-10° to 40°C) Size: 122×82×40mm DRONE BATTERY Capacity: 300mAh Voltage: 3.7V Battery Type: Lithium-ion Polymer Battery Charging Temperature Range: 41°... -
Page 31: Contact Us
CONTACT US Please do not hesitate to contact us if you need further support. 4:00 PM ~ 7:00 AM (PST) usa@holystone.com (USA) ca@holystone.com (CA) eu@holystone.com (EU) jp@holystone.com (JP) +1(855) 888-6699 For online support, please scan this code with Live Chat -26-... -
Page 32: General Information
GENERAL INFORMATION FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 33 GENERAL INFORMATION WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
- Page 34 GENERAL INFORMATION CAN NMB-003 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.
- Page 35 GENERAL INFORMATION BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery may cause a fire, smoke or explosion as well. 2. Always check the battery’s condition before charging or using it. 3.
- Page 36 GENERAL INFORMATION 13. Batteries MUST be inserted with the correct polarity. 14. The supply terminals MUST not to be short-circuited. Regular examination of transformer or battery charger for any damage to their cords, plugs, enclosures and other parts MUST be done. If there is damage, they MUST not be used until the damage has been repaired.
- Page 37 Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: Remote control four axis series Model/Mark: HS210F/HolyStone The Statement of compliance is available at the following address: http://www.holystone.com/Download/CE/HS210F_EU_DOC.pdf This product can be used among EU member states.
