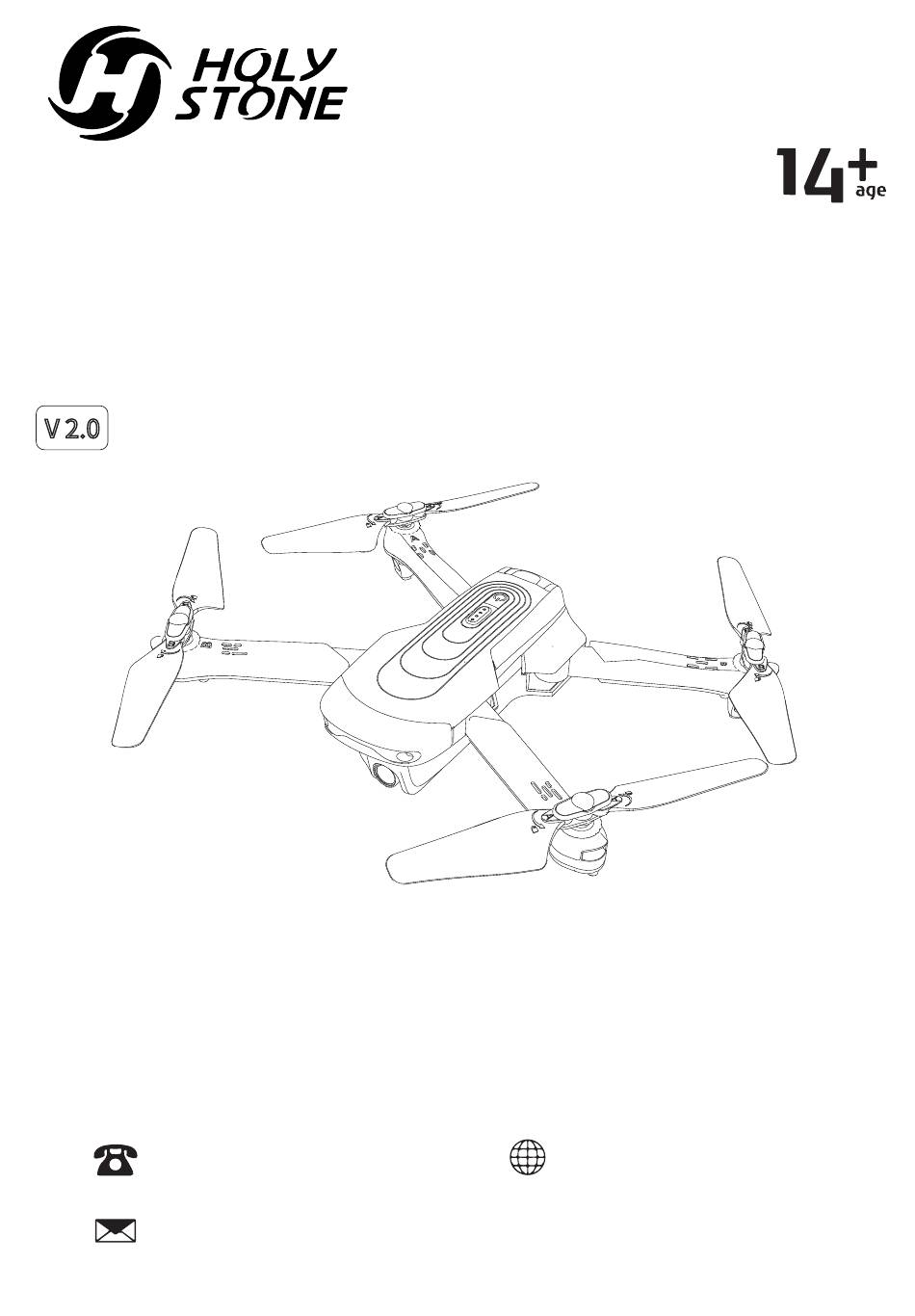

Instructions For Use
Gebrauchsanweisung
V 2.0
+1(855) 888-6699
usa@holystone.com (USA)
ca@holystone.com (CA)
HS175
www.holystone.com
eu@holystone.com (EU)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS175 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Holy Stone HS175

  • Page 1 Instructions For Use Gebrauchsanweisung V 2.0 HS175 www.holystone.com +1(855) 888-6699 eu@holystone.com (EU) usa@holystone.com (USA) ca@holystone.com (CA)
  • Page 3 English 01-35 Deutsch 36-67...
  • Page 4: Table Of Contents

    Contents 1.0 Disclaimer&Warning ..................2.0 Safety Guidelines ................... 3.0 Maintenance ....................4.0 Package Contents ................... 5.0 Drone’s Details ....................6.0 Transmitter Details ..................7.0 Mode Switch ..................... 8.0 Installation 8.1 Propellers ....................8.2 TF Card ......................8.3 Drone Battery ................... 8.4 Propeller Guard ..................
  • Page 5 11.0 Functions Details 11.1 Camera Angle Adjustment ............... 11.2 Speed Switch ..................11.3 Trimmer Function ................11.4 Take Photo/ Video ................11.5 Headless Mode ................... 11.6 Return to Home (RTH) ................ 11.7 Optical Flow Positioning ..............12.0 Specifications .................... 13.0 Trouble Shooting ..................14.0 Contact Us ....................
  • Page 6: Disclaimer&Warning

    . You agree to use this product only for purposes that are proper and in accordance with local regulations, terms and all applicable polices and guidelines Holy Stone may make available. 2. When using this product, please be sure to strictly abide by the specifica- tion requirements and safety guidelines stated in this document.
  • Page 7 ④ Please do a thorough check of the product before each use. Inspect the integrity of the parts, any signs of cracks and wear of the propeller, battery power and effectiveness of the indicator, etc. If after doing a complete check any issues are found, please refrain from using the product until the issue has been resolved.
  • Page 8 2.3 Operation Requirements: ① Please don’t use this product to follow any moving vehicles . ② During the flight, only turn off the motor in case of an emergency. ③ As battery becomes low return the drone back to your starting point. ④...
  • Page 9 ⑦ It is recommended to only use the USB charging cable that comes with the drone to charge the battery. ⑧ Don't connect the battery directly to wall outlets or car cigarette -lighter sockets. ⑨ Don't attempt to disassemble or modify the battery in any way. ⑩...
  • Page 10: Maintenance

    3.0 MAINTENANCE ① Clean the product after each use with a clean, soft cloth. ② Avoid prolonged exposure to direct sunlight and avoid buildup of heat on the drone. ③ This device is not waterproof and must not be submerged in water under any circumstance.
  • Page 11: Package Contents

    Transmitter Drone Battery ×2 ×2 ×1 USB Charging USB Charging Cable Spare Propeller Cable for Transmitter Instructions For Use Gebrauchsanweisung V 2.0 HS175 ×4 ×1 +1(855) 888-6699 www.holystone.com usa@holystone.com (USA) eu@holystone.com (EU) ca@holystone.com (CA) Propeller Guard Instructions For Use -06-...
  • Page 12: Drone's Details

    5.0 DRONE’S DETAILS Power Indicator Propeller A Power Switch Propeller B Propeller B Propeller A HD Camera Optical Flow Lens Drone Battery -07-...
  • Page 13: Transmitter Details

    6.0 TRANSMITTER DETAILS Built-in Phone Holder Take Photo Lens Up Record Video Lens Down Right Joystick Left Joystick / Speed Switch Folded Handle Power Switch Charging Port One Key Takeoff/ Return to Home Landing Calibrating the Compass -08-...
  • Page 14: Mode Switch

    7.0 MODE SWITCH 7.1 MODE 2 (Left hand throttle MODE 2 will be default setting.) Left Joystick Right Joystick Forward Ascend Descend Down Backward Down Left Right Right Left Fly to Fly to Rotate Right Rotate Left Left Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7.2 MODE 1 To enter MODE 1, turn on the transmitter while holding the “Record Video”...
  • Page 15: Installation

    8.0 INSTALLATION 8.1 Propellers ① Press and hold the knob on the motor shaft. ② Connect each propeller to its corresponding motor shaft, either position “A/B” , then rotate it to tighten the propeller as shown on the “ ” icon on the propeller.
  • Page 16: Drone Battery

    8.3 Drone Battery Pic 1 Pic 2 Installation: Push the battery correctly into the drone battery compartment. Make sure that you hear a click sound indicating the battery is firmly installed. (Pic 1) Removal: Press the lock button on the battery and pull it back to remove the battery from the fuselage.
  • Page 17: Charging

    9.0 CHARGING 9.1 Drone Battery USB Adapter (5V/2.0A) Battery USB charging cable Power Bank 1) When the drone battery runs low, the indicator lights on the drone will flashes continuously. 2) Remove the battery and connect the USB charging cable to the battery charging interface.
  • Page 18: Transmitter Battery

    9.2 Transmitter Battery Unfold the transmitter Fold the transmitter USB Adapter (5V/1.0-2.0A) Power Bank 1) When the transmitter battery runs low, the transmitter will continue to sound the “DiDiDi...” alarm. 2) Connect the USB charging cable to the charging interface. 3) Plug the USB charging cable into a USB charging port on the computer, power bank or USB adapter (5V / 1.0 to 2.0A ).
  • Page 19: Operation Guide

    10.0 OPERATION GUIDE 10.1 Download APP Android APP on Google play Scan the QR code, corresponding to either App Store™ or Google Play™ Store and download the HS GPS V5 app for free. 10.2 Connect to Wi-Fi Connect your smart phone to the Wi-Fi network created by the drone. Check the drone’s status in the HS GPS V5 app.
  • Page 20: Paring

    All of the operations shown in this manual are demonstrated using MODE 2. 10.3 Pairing ① Long press the power switch to turn on the drone and the indicator lights on the drone begin to flash. HEAD ② Place the drone on a flat and level surface with the head forward and the tail towards the pilot.
  • Page 21: Calibrating The Compass

    10.4 Calibrating the Compass ① Short press Compass Calibration button to enter the compass calibration state. ② Hold the drone horizontally and rotate it until the rear indicator lights change from flashing slowly to flashing quickly. ③ Hold the drone vertically and rotate it until the rear indicator lights change from flashing quickly to solid -16-...
  • Page 22: Gps Searching

    10.5 GPS Searching HEAD Place the drone on a flat and dry surface where is unobstructed and lit area. When the indicator lights change from yellow to green, it means that the search for GPS signal is completed. This process may take about a minute. ATTENTION: ・If the search for GPS signal fails, please repeat all the Compass Calibration operations until the process is successful.
  • Page 23: Unlocking The Motor

    10.7 Unlocking the Motor Please unlock the motor before take-off. Pic. 1 Pic. 2 Method 1: Simultaneously push the left joystick to the bottom right corner and the right joystick to the bottom left corner. The motors rotate and the drone is unlocked.
  • Page 24: Functions Details

    11.0 FUNCTION DETAILS 11.1 Camera Angle Adjustment 90° As shown in the figure above, you can adjust the camera to tilt up or down through the two buttons “ ” and “ ”. (The camera has an 90° tilt range.) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11.2 Speed Switch This drone comes with 2 speed modes (Low/ High).
  • Page 25: Trimmer Function

    11.3 Trimmer Function F/B Sideways Drift Trim: If the drone drifts forward, press the Throttle joystick and push the Direction joystick down at the same time to re-balance the drone. If the drone drifts backward, press the Throttle joystick and push the Direction joystick up at the same time to re-balance the drone.
  • Page 26: Take Photo/ Video

    11.4 Take Photo/ Video Take Photo: Short press the Photo button on the transmitter to take pictures. One beep can be heard from the transmitter, indicating the camera has successfully taken one photo. Record Video: Short press the Video button on the transmitter, two beeps from the transmitter will be heard.
  • Page 27: Headless Mode

    11.5 Headless Mode 1. After pairing/calibration, hold down the right joystick for about 3 seconds to enter the Headless Mode. The indicator lights on the drone continue to flash to indicate that it is in Headless Mode. 2. Hold down the right joystick for about 3 seconds again, and you will hear a beep, the indicator lights on the drone will turn solid which indicates the drone exits the Headless Mode.
  • Page 28: Return To Home (Rth)

    11.6 Return to Home (RTH) The Return to Home (RTH) function brings the drone back to the last recorded take-off point. This function can only be achieved in GPS mode. There are three types of RTH: Smart RTH / Low Voltage RTH / Failsafe RTH. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11.6.1 Smart RTH Short press the Return to Home button to enter the return procedure.
  • Page 29 11.6.2 Low Voltage RTH When the drone's indicator lights flash continuously, it means that the battery is in low voltage. The drone will enter the Low Voltage RTH mode and fly back to the take-off point. ・When the flight distance is lower than 65 feet, you can exit Low Voltage RTH.
  • Page 30: Optical Flow Positioning

    11.7 Optical Flow Positioning Optical Flow Lens The Optical Flow Positioning System consists of optical flow lens modules, which acquires the position information of the drone through visual images to ensure precise positioning of the drone. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - The Optical Flow Positioning System is typically used in indoor environ- ment when GPS is weak or unavailable.
  • Page 31 1. Fly fast at an altitude below 0.5m. 2. Fly over monochrome surfaces (like pure black, pure red, pure red and pure green). 3. Fly over strong light reflective surfaces or surfaces prone to reflection. 4. Fly over water or transparent object surfaces. 5.
  • Page 32: Specifications

    12.0 SPECIFICATIONS DRONE Model: HS175 Weight: 201g / 7.09oz Max Flight Time: 22 minutes (per battery) Operating Temperature Range: 32° to 104°F Size: 145 × 90 × 60 mm (Folded) 360 × 300 × 70 mm (Unfolded) DRONE BATTERY Capacity: 1300 mAh Voltage: 7.6 V...
  • Page 33 CAMERA Operating Frequency: 5 GHz Photo Resolution: 4096×3072P (stored in TF card) 2048×1080P (stored on mobile phone) Video Resolution: 2048×1080P (stored in TF card) 1920×1080P (stored on mobile phone) Lens: FOV 110° Max Transmission Distance: 984 feet / 300m (outdoor and unobstructed) Live View Quality: 25 fps Photo Formats: JPEG...
  • Page 34: Trouble Shooting

    13.0 TROUBLE SHOOTING Problem Solution 1. Charge the drone battery. The drone does not respond. 2. Charge the transmitter battery. 1. Change the batteries. The drone’s response is intermit- 2. Move to a different area where tent. there is no interference. Place the drone on a flat, level The drone drifts to one side while surface and repeat the gyro...
  • Page 35: General Information

    15.0 GENERAL INFORMATION FCC Statement: Any Changes or modifications not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interfer-...
  • Page 36 WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF Exposure The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator &...
  • Page 37 2) I'utillsateur de I'appareil doit accepterbrouillage radioélectrique subi meme si le brouillage est susceptible d'encompromettre le fonctionnement. mauvais fonctionnement de I'appareil. Cet appareil numériquie de la classe B est conforme à la norme NMB-003 du Canada. CAN NMB-3 (B) RF Exposure Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
  • Page 38 BATTERY WARNING: 1. Failure to follow all the instructions may result in serious injury, irreparable damage to the battery and may cause a fire, smoke or explosion. 2. Always check the battery’s condition before charging or using it. 3. Replace the battery if it has been dropped, or in case of odor, overheat- ing, discolouration, deformation or leakage.
  • Page 39 We, Xiamen Huoshiquan Import & Export CO.,LTD hereby, declare that the essential requirements compliance with the Directive 2014/53/EU, the RoHS Directive 2011/65/EU and Safety Directive 2009/48/EC have been fully fulfilled on our product with indication below: Product Name: REMOTE CONTROL MODEL/RADIO CONTROLLED Model/Mark : HS175/HOLYSTONE -34-...
  • Page 40 The Statement of compliance is available at the following address: http://www.holystone.com/Download/CE/HS175_EU_DOC.pdf This product can be used across EU member states. MANUFACTURER INFORMATION Manufactured by Xiamen Huoshiquan Import & Export CO.,LTD Room 703,No. 813-2 Xiahe Road, Siming District, XIAMEN, China +1(855) 888-6699 -35-...
