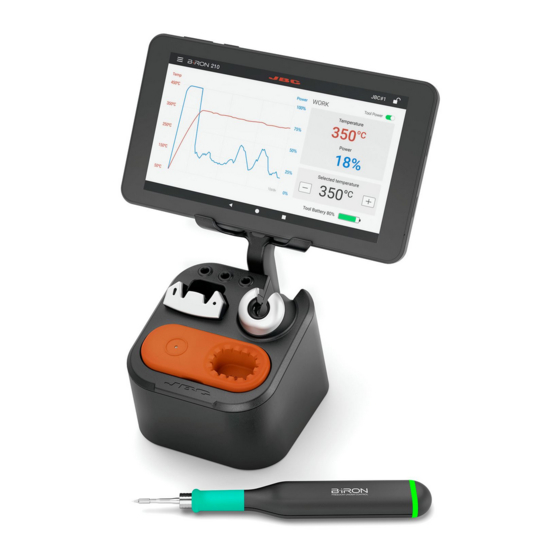

Battery-powered soldering station
Hide thumbs Also See for B-IRON 210:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
B·IRON 210
Battery-Powered Soldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-IRON 210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc B-IRON 210

Summary of Contents for jbc B-IRON 210

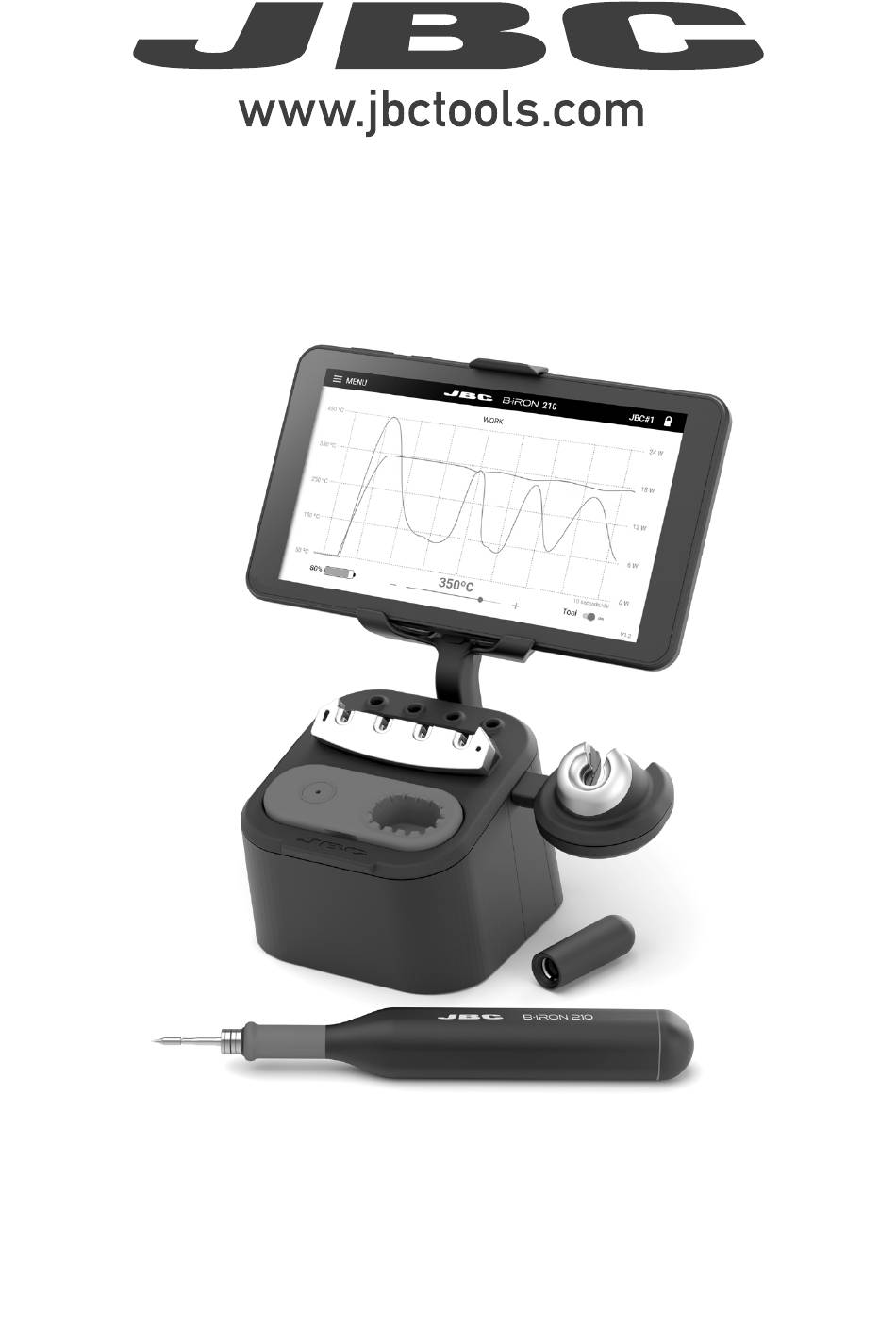

  • Page 1 INSTRUCTION MANUAL B·IRON 210 Battery-Powered Soldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: BIS-5A* *according to purchased station model, suitable for: 120V - N. America / Taiwan 230V - India / Europe / United Kingdom Packing List The following items are included: B115 / B210 Charging Base ....1 unit Portable Display 7”...

  • Page 3: Usb Cable

    para manuales - color gris 200 mm 130 mm 130 mm 100 mm 80 mm Holder for Portable Display 5” to 7” ... 1 unit USB Cable ....1 unit (USB A to Micro USB) Ref. 0030723 Ref. 0028092 Includes fixing knob 60 mm 50 mm 40 mm...
  • Page 4 Please read this manual and its safety guidelines thoroughly before using the product. Features & Connections Portable Display 7” for B·IRON Cartridge Exchanger Cartridge Holder Adjust. Tool Holder CL0300 and Charger Brass Wool for B·IRON (inside) CL0301 Wiper for B·IRON B115 / B210 Charging Base Antisplash Membrane...
  • Page 5 para manuales - color gris 200 mm 130 mm 130 mm Features and Connections 100 mm Portable Display 7” for B·IRON 80 mm 60 mm Holder for Portable Display 5” to 7” 50 mm Ref. 0030723 B210 40 mm Precision Handle for B·IRON Display Support Tool Cap...

  • Page 6: Quick Start

    Quick Start 1. Display Holder Assembling 2. Display Holder Setting Tablet Holder Insert the thin end of the display holder into the Insert the fi xing knob (3) and tighten it just enough upper area of the rear rail of the charging base so that it stays in its place but the display holder (1).
  • Page 7 para manuales - color gris 200 mm 130 mm 130 mm 5. Turning on the Portable Display Power Button 100 mm Turn on the display by holding down the power button and then open the B·IRON app*: 80 mm * Note: The app can also be downloaded to your own devices.

  • Page 8: Compatible Cartridges

    7. Cartridge Insertion and Charging Inserting Fixing Charging Place the tool over a cartridge Make sure that the cartridge is Place the tool on the tool holder and press the tool down to insert appropriately inserted* into the (4) to charge it. A beep will the cartridge (1).
  • Page 9 Update para manuales - color gris 200 mm 8. Tool Selection 130 mm 130 mm Select the tool from the device list. If the tool is 24 W 100% not displayed on screen, make sure that the cap Tool1 Tool2 Tool3 is off and the tool has some battery.

  • Page 10: Operation

    Operation The JBC Most Efficient Soldering System MENU JBC#1 This revolutionary technology can recover tip temperature extremely quickly. This allows the user to JBC#1 MENU MENU WORK JBC#1 work at a lower temperature. 24 W 100% 450 ºC 450 º...

  • Page 11: Work Screen

    350ºC 350ºC 10 seconds/div 10 seconds/div Tool tool in use. Tool V1.2 V1.2 100 mm Temperature and Power Graph JBC#1 MENU 80 mm CHARGE Updat 24 W 450 ºC Tool I 348ºC 60 mm 18 W 350 ºC 12 W 250 ºC...
  • Page 12 50 ºC 350ºC 350ºC 10 seconds/div 10 seconds/div Tool Work Screen Tool V1.2 V1.2 Connected Tool and Tool Selector JBC#1 MENU CHARGE Updat 24 W 450 ºC Tool ID 348ºC 18 W 350 ºC 12 W 250 ºC 150 ºC 50 ºC...
  • Page 13 130 mm 130 mm V1.2 The cartridge exchanger saves time and allows to change cartridges safely without switching the tool off. MENU Return to Work JBC#1 Return to Work 100 mm 1. Removing Cartridges 2. Inserting Cartridges Documents User’s Manual...
  • Page 14 3. Fixing Cartridges Depending on the shape of the tip, use the holes on the sides of the cartridge exchanger to properly adjust the cartridge. Important: Push the cartridge in as far as it will go, making sure that it is firmly assembled*. Holes *Inserting C210 Cartridges *Inserting C115 Cartridges...

  • Page 15: Tip Cleaner

    It also includes a temperature-resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip on it. If the tip is very dirty, JBC recommends cleaning it first Wiper with the wiper to remove excess solder and then with the brass wool.
  • Page 16 Replacing Brass Wool 1. Lifting 2. Replacing Lift the wiper by using the recess on the edge. Remove the wiper and replace the brass wool with a new one. 3. Reassembling 4. Pressing on Assemble the new wiper onto the charging base. Press the wiper down.
  • Page 17 para manuales - color gris 200 mm Replacing Grips 130 mm 130 mm 1. Cutting 2. Removing Cutter 100 mm 80 mm Make a length-ways cut on the worn Remove the worn grip. grip. Be careful not to damage the 60 mm handle.
  • Page 18 OB4000 for B210 Handles For B210 handles the usage of OB4000 sealing plug is highly recommended for intensive applications when soldering is exposed to FOD environments or for applications where the soldering iron works close to a vertical position. 1. Removing Sealing Plug 2.
  • Page 19 - color gris 200 mm Menu 130 mm 130 mm MENU JBC#1 Work MENU MENU MENU Devices Work Devices W 100% 450 ºC 450 ºC 450 ºC Documents Settings Documents Tool ID Lock Parameters Sleep mode Sleep temperature...
  • Page 20 Settings Parameter Description Tool ID Allows to modify the tool identifier. Lock parameters Allows to lock the parameters of the station using a four-digit code. The default code is 0105, but a new code can be set by simply entering some other four digits of choice when locking the parameters.
  • Page 21 350ºC Disconnect 60 mm Documents MENU JBC#1 Work User manuals related to the station or to the tools can be consulted in this section or on JBC’s 50 mm website: www.jbctools.com Tool ID Lock Parameters Sleep mode Sleep temperature 150ºC...

  • Page 22: Updating The Firmware

    50 ºC 350ºC 350ºC 350ºC 10 seconds/div 10 seconds/div 10 seconds/div - Check if there is a folder named “JBC” in the internal storage of the Android device used as B·IRON Tool Tool Tool V1.2 V1.2 V1.2 display. If it doesn’t exist, create it.
  • Page 23 B·IRON soldering stations can be accessorized with some additional components specifically designed for them: 100 mm Display Holders JBC offers display holders in two different sizes. Choose the size that best suits your needs and the device you use as display. 80 mm 60 mm...

  • Page 24: Maintenance

    - Maintain the tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint. - Do not use liquids such as alcohol, thinner or benzene to clean the tablet. - Repairs should only be performed by a JBC authorized technical service. Clean contact surfaces...
  • Page 25 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.

  • Page 26: Safety - Battery

    - In the event of damage, leakage, or overheating of the batteries, discontinue use immediately and contact customer support or JBC technical service facility. - Dispose of devices with batteries inside, responsibly according to regulations. They must be disposed of in accordance with local regulations so that they can be recycled.

  • Page 27: Specifications

    para manuales - color gris 200 mm Specifications 130 mm 130 mm B·IRON 210 Battery-Powered Soldering Station Ref. BIS-5A 100 mm Charging Base - Input: 100 V - 240 V 50/60 Hz - Nominal Power: 40 W - Tool Output: 12 V / 1000 mA 80 mm - USB...

  • Page 28: Warranty

    In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
