3 Device Description

3.1

Front panel

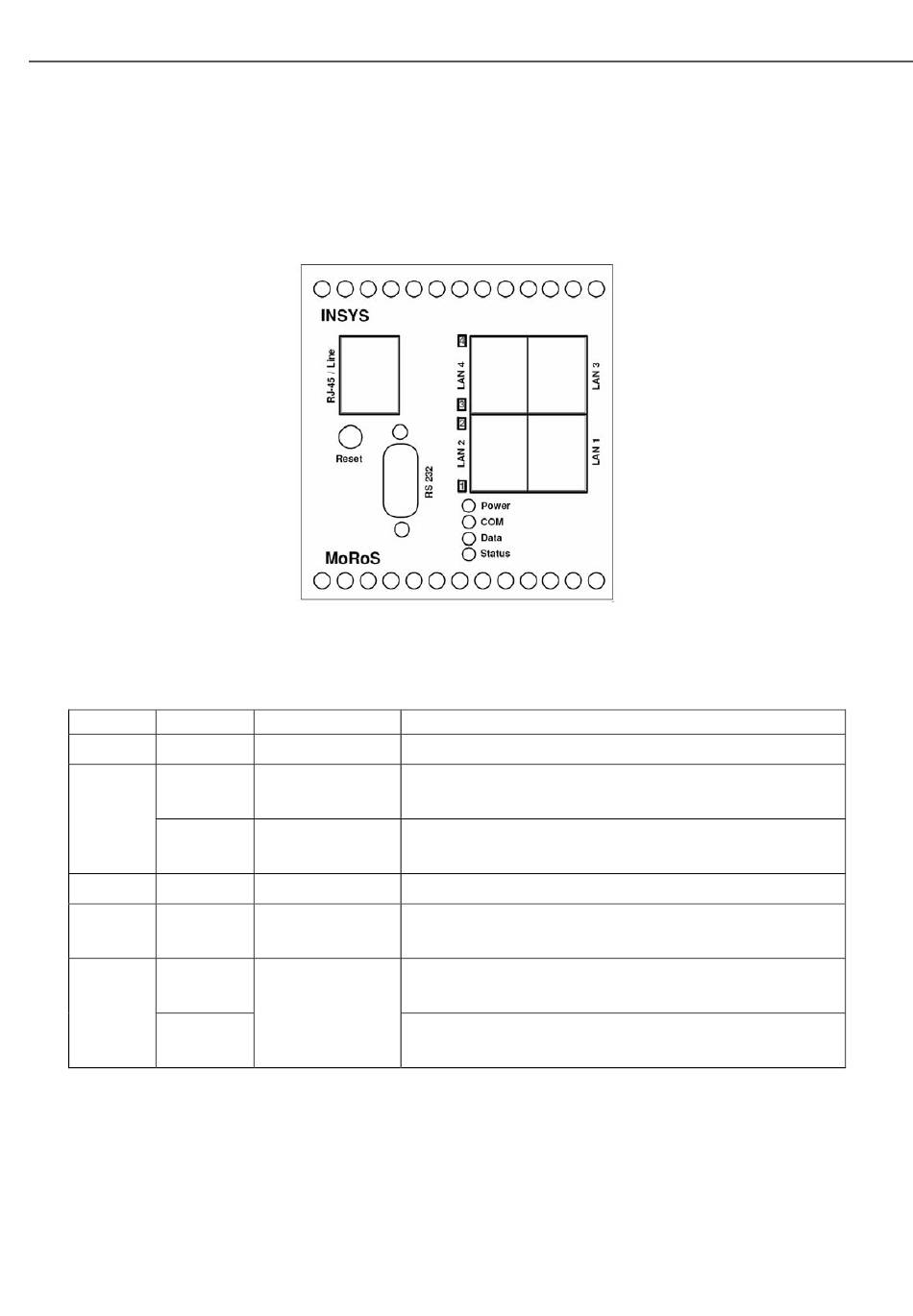

The MoRoS has LEDs to indicate the operating state:
Name Color
Power Green
COM Green
Orange
Data Yellow
Status Red
1 Green
2
3
Yellow
4
June 06
LED off LED on
No supply voltage Supply voltage available
MoRoS is offline. MoRoS is hooked to the phone line, but there is no usable
data connection yet (OH).
MoRoS has established a usable data connection via the
phone line (CONNECT).
A PPP data packet is transmitted via the phone line.
MoRoS is ready. MoRoS is not ready (e.g. after being switched on or when
restoring the standard settings).
No LAN cable An LAN cable is connected and the port is set to 100 MBit/s.
connected. This LED blinks during data traffic.
An LAN cable is connected and the port is set to 10 MBit/s.
This LED blinks during data traffic.
