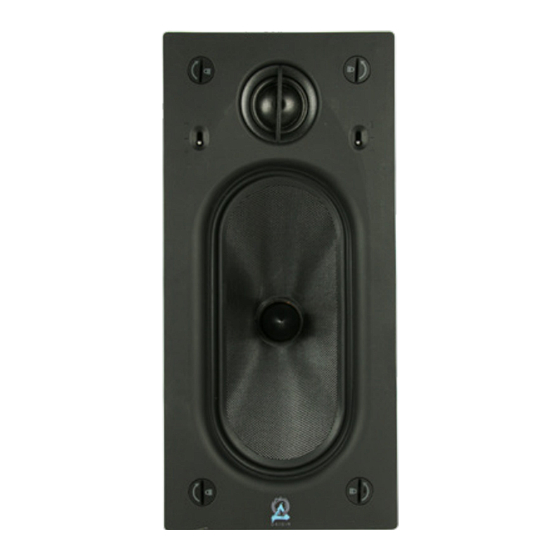

- Page 1 C60 SERIES COMPOSER COLLECTION • INSTALLATION MANUAL C69 | C67 | C65 | C63...
-
Page 2: Table Of Contents
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL Table of Contents 1. Introduction 2. Specifications 3. What’s Included 4. Required Tools 5. Wire Recommendation 6. Speaker Placement 7. About Speaker Wire 8. Cutting the Hole 9. Connecting the Wire 10. Installing the Speaker 11. -
Page 3: Introduction
Thank you for purchasing the Composer Collection . At Origin Acoustics, we take ™ pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 2. Specifications MODEL PART SWML12900 SWM12600 4 x 8” Kevlar® 4 x 8” Fiber Glass Woofer 1” Silk DPSD™ 1” Silk DPSD™ Tweeter Pivoting Pivoting 40Hz-20kHz 43Hz-20kHz Frequency Response 50 Watts 50 Watts Power RMS 125 Watts 125 Watts... -
Page 5: What's Included
Use a multi-stranded wiring designed for amplifier to speaker connections. Which gauge to select depends on the length of wire to be used on any particular speaker. Origin Acoustics The longer your run is, the larger your wire size must be. -
Page 6: Speaker Placement
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 6a. Speaker Placement (3 Speakers) Place the center channel (CC) speaker directly above or below the video display, preferably equidistant from the walls on the left and right. The left (L) and right (R) speakers should be on the same wall on either side of the video display, with the center speaker exactly between them. - Page 7 C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 6b. Speaker Placement (5 Speakers) In addition to the left, right, and center speakers described in the 3 speaker setup, install the surround left and right speakers on the left and right walls. They should be a few feet behind the listening area, and about 5 Listening Area feet (1.5 m) from the floor.
-
Page 8: About Speaker Wire
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 7a. About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle. - Page 9 C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 7c. Wire Routing Plan how you’ll route the wire to the desired speaker location. There are several methods for routing the wire, and you may need to combine several of them. Behind the Baseboard Through Walls The wire can be routed behind the When running wires through a wall, be...
-
Page 10: Cutting The Hole
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 8. Cutting the Hole When you’ve decided on the locations for all of the speakers, use the template to trace a circle lightly in pencil where the hole should be. (If you don’t have a template, check the Specifications section for cutout sizes.) If you’re unsure on whether there may be obstacles (such as pipes or wires) where you plan on installing the speaker, drill a ⅛... -
Page 11: Installing The Speaker
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 10. Installing the Speaker On the speaker, make sure all the SpringLocks are loaded in the upper notch, fac- ing inward. Fit the speaker into the hole, and using the included guitar pick, or a screwdriver/ coin, turn the SpringLock Release Tab 90°... -
Page 12: Testing & Adjustments
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 11. Testing & Adjustments The tweeter can be pivoted to direct the sound towards the listening area. Or for a more diffused surround sound experience, the rear speakers can be aimed towards the wall. To aim the tweeter, gently apply pressure to the rim with your thumbs to pivot the tweeter. -
Page 13: Painting The Grille
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 13. Painting the Grille In some situations the speakers may look better if the color matched the walls, ceiling, or trim in the room. This can be accomplished by painting the grille. The grille must be painted with spray paint, and most hardware stores will mix a can of paint to match whatever color you need. -
Page 14: Troubleshooting
C60 SERIES • COMPOSER COLLECTION INSTALLATION MANUAL 14. Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. -
Page 15: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 16: Warranty
If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 17: Return Process
Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product. - Page 18 03-24-23 6975 S Decatur BLVD, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461 ©2023 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
