Summary of Contents for Origin Acoustics E60
-
Page 1: Installation Manual
Installation Manual E n t e r t a i n e r S p e a k e r Model: V 1.1... -
Page 2: Table Of Contents
Table of Contents Introduction Installation Requirements and Recommendations 1 What’s included Required Tools/Items Optional Tools/Items Speaker Placement Home Theater (5 Speakers) Installation 1) Installing the Wire 2) Painting the Grille 3) Cutting the Hole (Retrofit Installation) 4) Connecting the Wires 5) Installing the Speaker 6) Aiming the Tweeter 7) Installing the Grille... -
Page 3: Introduction

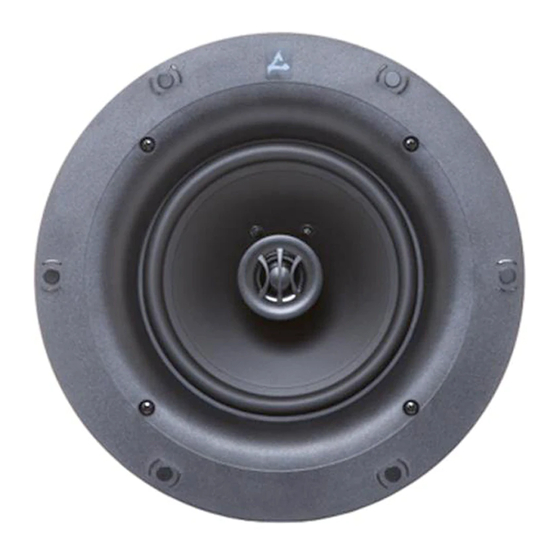

Introduction Thank you for purchasing the E60 In-Ceiling Entertainer Speaker. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Optional Tools/Items
Speaker Wire Recommendations For this setup, use a multi-strand- the shorter the run the smaller ed wiring designed for amplifier the wire size you can use, how- to speaker connections. The ever you can never go wrong by gauge of wire used can have an using a thicker gauge. -
Page 5: Speaker Placement
E60 INSTALLATION MANUAL Speaker Placement Auxiliary Room (2 Speakers) Left Speaker Right Speaker Ideally the two speakers would be placed an equal distance 6’ from the listener and no less (2m) Listener than 6’ (2m) apart. If the room has a lower ceiling or if the... -
Page 6: Installation
Installation 1) Installing the Wire Strip ¼ to ½ inches (6 to 12 mm) of the insulation off both ends of the wire. To avoid stray strands, twist them at the end. Connect the wire to the am- plifier, and make sure the wire connected to the left speaker output will be routed to the left speaker, right output to right... -
Page 7: Painting The Grille
E60 INSTALLATION MANUAL About Speaker Wire You will need a wire that has at least two conductors; one that can be identified as the positive and the other as the negative. All two conductor wires have some means of identifying which conductor is which, but at times this identification may be subtle. -
Page 8: Cutting The Hole (Retrofit Installation)
For these situa- the Specifications section for tions it’s recommended you pur- cutout sizes.) If you’re unsure chase an Origin Acoustics BR68 bracket (for the Director 6/8 col- on whether there may be ob- lection), though the BRP6 (for... -
Page 9: Installing The Speaker
E60 INSTALLATION MANUAL 5) Installing the Speaker The E60 has the ability to fit two different sized new con- struction brackets from Origin Acoustics. If the ceiling already has BR68 brackets then the E60 can be installed using the stan- dard dog mounting system (see following paragraph). -
Page 10: Troubleshooting
Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 11: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process. -
Page 12: Specifications
Specifications Model Number Part Number SCE60000 Tweeter Dome Silk Tweeter Diameter 0.5” (13mm) Woofer Cone Polypropylene Woofer Diameter 6.5” (165mm) Frequency Response 48Hz-20kHz Impedance 8 ohm Power Handling 5-100 watts Sensitivity 86dB ± 3dB Diameter 9.75” (248mm) Grille Diameter 10” (254mm) Cutout Diameter 8.25 or 8.75”... -
Page 13: Warranty
Warranty Limited Lifetime Warranty Origin Acoustics warrants to the original retail purchaser only that this Origin Acoustics product will be free from defects in materials and workmanship, provided the speaker was purchased from an Origin Acoustics authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’... -
Page 14: Requirements And Warranty Coverage
• Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Origin Acoustics or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues • Damage caused by voltage inputs in excess of the rated maximum of the unit •... - Page 15 E60 INSTALLATION MANUAL WWW.ORIGINACOUSTICS.COM...
- Page 16 ©2014 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
