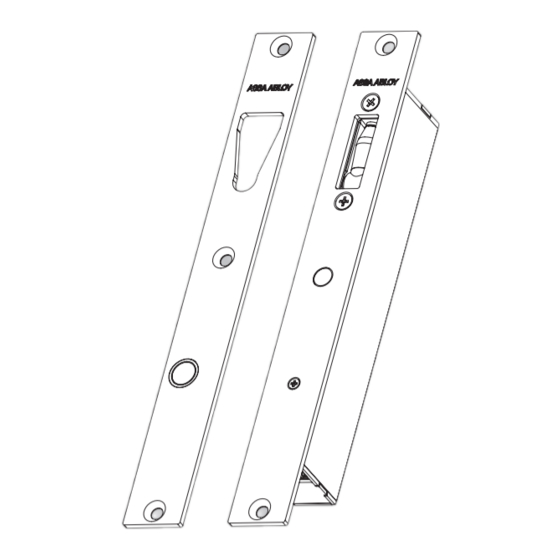

- Page 1 ES8100 : V-LOCK INSTALLATION GUIDE AND USER MANUAL ES8100-121 (2) ASSA ABLOY Australia Pty Limited, 235 Huntingdale Rd, Oakleigh, VIC 3166 ABN 90 086 451 907 ©2023 Experience a safer and more open world...
-
Page 2: Important Safety Instructions And Warnings
Obey and heed all warnings on the product and in the manual. Ensure the functionality, specification and configuration of the ES8100 : V-Lock is befitting for the intended application and environment. This may include in the event of a power failure and the ability to exit any building access point in an emergency. -
Page 3: Maintenance, Storage And Disposal
IMPORTANT INSTALLATION AND FIXING INSTRUCTIONS Ensure the electric lock meets your physical (dimensions), grade/rating and electrical specification before going any further. It is recommended to verify that the door & door frame construction allows the use of the device. Before fitting the electric lock to a fire/smoke resisting door, the fire certification should be examined to ensure the suitability of the electric lock for that door assembly. -
Page 4: Lock Specifications
IP rating IP53 FIRE DOOR INSTALLATION Before fitting the ES8100 : V-lock to a fire / smoke resistant door, the fire certification should be examined to ensure the suitability of the electrically operated lock for that particular door assembly. United Kingdom (UK) and Europe (CE) Customers: This product is only fire rated when used in Power to Open (PtO) configuration. - Page 5 CONTENTS ES8100 lock ES8100 strike plate Timber frame Hollow frame mounting kit mounting kit ES8100 cable AVAILABLE MOUNTING KITS AND SPARE PARTS Additional accessories are available for optional mounting & spare parts (not supplied): Use of accessories may affect fire and/or performance rating and EN 14846 certification.
-
Page 6: Wiring Schematic
WIRING NOTES 3 wire operation is recommended when using the ES8100 : V-lock. 2 wire operation is possible in PtL setting only. Lock will operate slower when operated in 2 wire mode. Ensure ground reference is common for both power (red) and control (blue) cables. - Page 7 SETTING LOCK FUNCTION Adjust the slide switch at the rear of the lock to select locking function. PtO ~ Power to Open or Fail Secure PtL ~ Power to Lock or Fail Safe For lock function setting changes to take effect, the lock has to be completely powered down (approx.
- Page 8 TIMBER FRAME PREPARATION FOR LOCK 3 45 TIMBER DOOR PREPARATION FOR STRIKE Ensure strike and lock are aligned.
-
Page 9: Mounting Orientation
LED activation before securing lock with supplied screws. Secure strike with supplied screws. MOUNTING ORIENTATION The ES8100 : V-lock can be installed horizontally or vertically. When mounting the V-lock vertically, the orientation must be as per the direction shown THIS on the product label. - Page 10 HOLLOW FRAME PREPARATION FOR LOCK 80° 10.5 Countersink details (2 PLACES) LOCK INSTALLATION IN HOLLOW FRAME Connect power cable and complete lock setting and indication LED activation before securing lock. Loosely fit mounting plates using screws and nut. Fit lock then tighten all screws.
-
Page 11: Troubleshooting Guide
Refer to FAQ’s online in Downloads section for further assistance. Available at: www.assaabloy.com/au/en/solutions/products/electromechanical-locking/es8100-v-lock. MANUFACTURER AND IMPORTER DETAILS Manufacturer details UK Representative ASSA ABLOY Australia Pty Ltd. ASSA ABLOY Opening Solutions 235 Huntingdale Road, Melbourne School Street, Willenhall, West Midlands Victoria, 3166, Australia WV13 3PW, United Kingdom... - Page 12 CERTIFICATION EU CE DECLARATION OF CONFORMITY (DoC) Hereby, ASSA ABLOY Australia Pty Ltd declares that the ES8100 : V-Lock is in compliance with the CE Directives including the Electromagnetic Compatibility (EMC) directive, Restriction of Hazardous Substances (RoHS) directive & Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Regulation.
