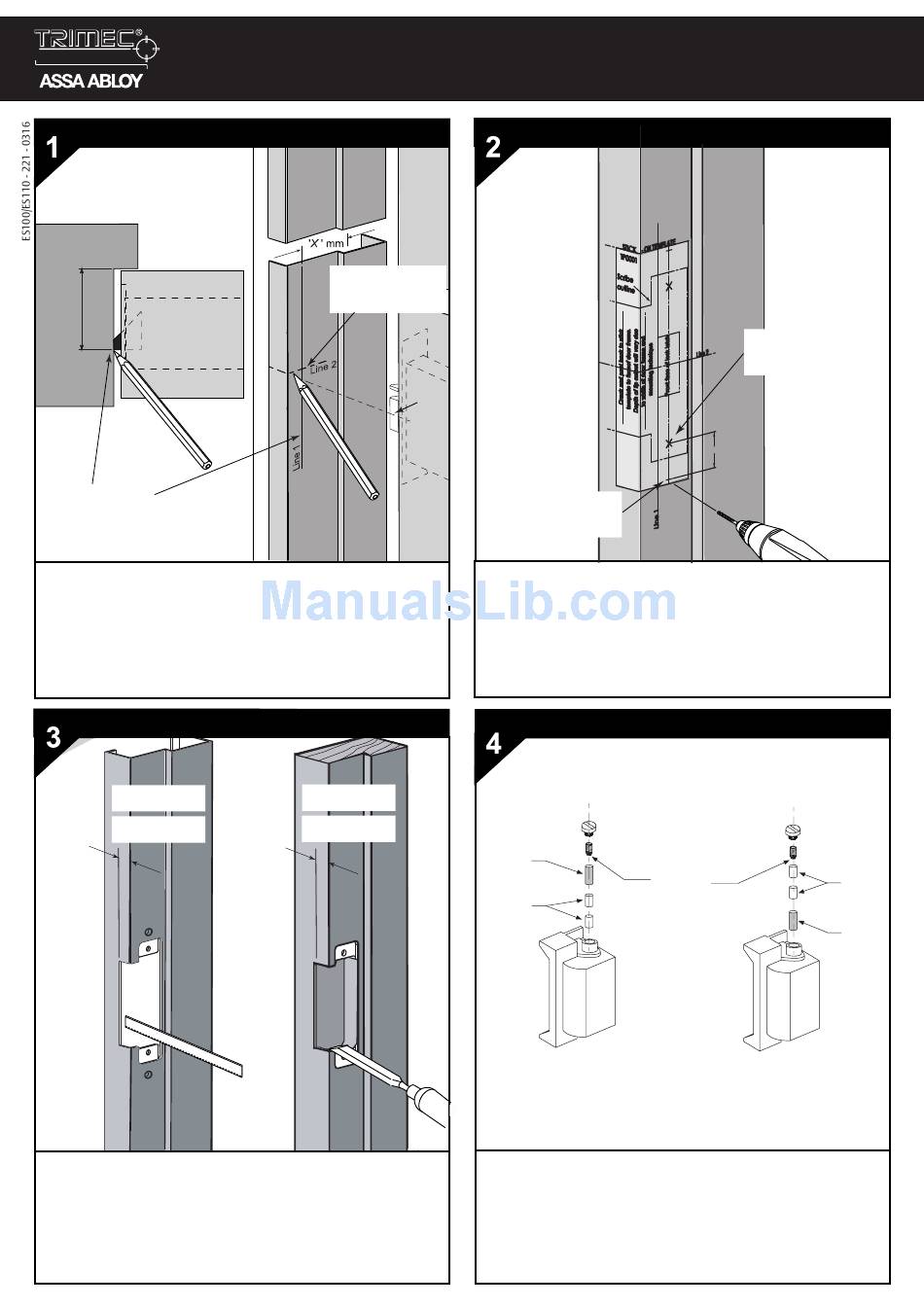

Assa Abloy ES100 Series Installation Instructions

MARKING OF STRIKE POSITION

P/n
"X"
mm
Door
Frame
Mark Door latch
front face on frame
(Line 1).
• To enable the Electric strike to be located in the door frame, first
mark the position of the Door Latch front face on the door frame
with the door in the closed position, ("X"mm).
• Mark where centre of latch meets door frame:
- For new installations, mark frame where front of latch touches
the door frame at the midpoint of the latch bolt.
- For retrofit installations, remove existing strike plate and ensure
the latch fits into and is centred in existing hole.
100A series - 17mm
110A series - 20mm
100B series - 17mm
110B series - 20mm
• Using the template as a guide, mortice out the door frame to the
required size.
• Countersink holes in metal frame to accept screws.
Status Approved 2016-03-24
ES100/ES110 SERIES ELECTRIC STRIKE
Mark centre of Door
latch on frame
(Line 2).
Latch
Door
Frame

MORTICING REBATE

100A series - 17mm
110A series - 20mm
100B series - 17mm
110B series - 20mm
INSTALLATION INSTRUCTIONS
Hole 'A' for
metal frame
• Peel backing off adhesive template and centrally locate in the
marked position, lining up both the mark for the door latch front
face (Line 1) and the centre mark of the latch (Line 2).
• For the metal door drill two Ø5mm holes (A) 24mm above and
below the "X" mark on the template, for a timber door drill
two Ø3mm holes (B).
• Ensure secondary bolt is not within the strike cavity.

CHANGING MODE OF LOCK OPERATION

Long Pin
Short Pins
Power to Open
(Fail-Secure)
Fig 1
To change electric strike's mode of lock operation, remove brass screw from
top of strike body.
Invert strike and carefully release the small spring and 3 locking pins
(2 x Short pin, 1 x Long pin).
Re-insert pins in in the manner shown for the desired mode of lock
operation (Power to Open / fail Secure): see Fig. 1;
(Power to Lock / fail safe): see Fig. 2, followed by replacing the spring.
Screw in the brass screw to strike body. This will secure the spring and
locking pins.

POSITIONING OF STRIKE

Hole 'B' for
timber frame
24
Small End of
spring
Power to Lock
(Fail-Safe)
Fig 2
Short Pins
Long Pin
