Invertek Drives OPTIDRIVE P2 Service Manual page 4

SERVICE MANUAL
2017
ODP-2/HVAC FRAME SIZE 3

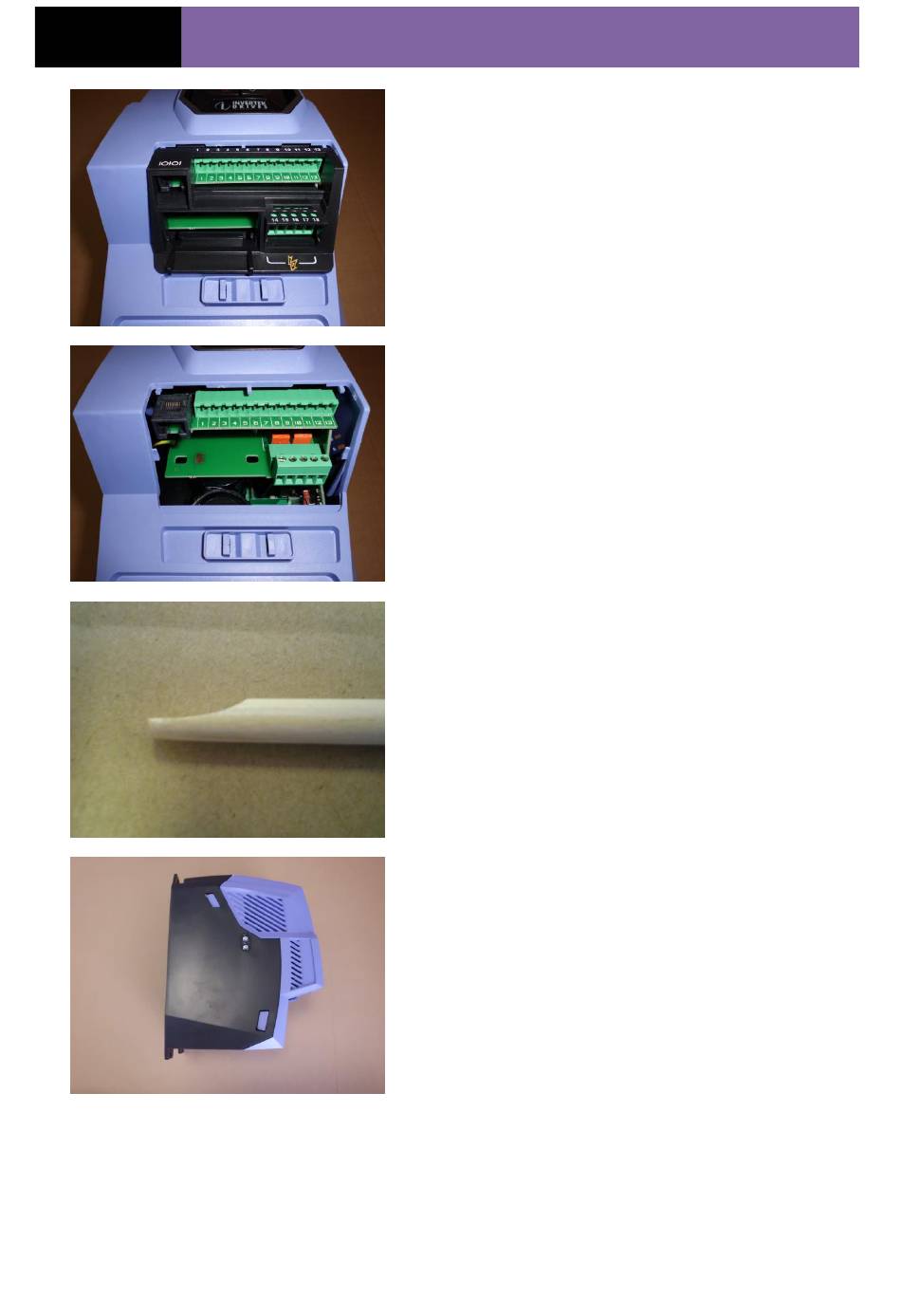

The example opposite shows the
plastic cover after it has been
clicked out of position
With the cover removed, access
can now be made through the
terminal section of the drive
The end of a wooded brush will
be used to remove the plastics
cut to a wedge shape. Wood is
used to prevent damage to the
plastics.
Place the drive on it's side
Page 4 of 10
