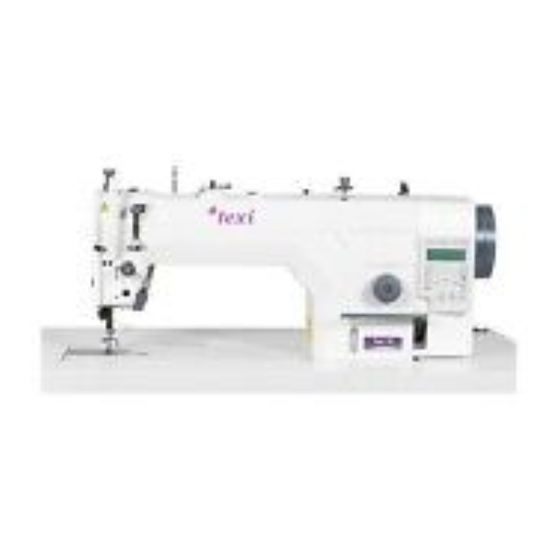

- Page 1 Operation manual for high speed direct drive lockstitch machine Tronic 1...
-
Page 3: Table Of Contents
TEXI Tronic 1 operation manual Contents Safety precautions User’s manual 1. Before starting work 2. Installation of the oil reservoir 3. Lubrication 4. Machine oil level 5. Correct oil dosage to the hook 6. Fastening the needle 7. Insertion of bobbin into bobbin case 8. -
Page 4: Before Starting Work
TEXI Tronic 1 operation manual SAFETY PRECAUTION This instruction manual contains important guidelines regarding correct, safe and economical method of use of the machine. Following recommendations contained in this manual will decrease work down-time, increase machine reliability and durability, and will make work safer. - Page 5 TEXI Tronic 1 operation manual USER’S MANUAL The lockstitch machine TEXI, model Tronic 1 is a high speed sewing machine, designed for sewing woven or knitted materials or other textiles. Attention! The machine is not to be used for other materials than those for which it has been designed.
-
Page 6: Installation Of The Oil Reservoir
TEXI Tronic 1 operation manual 2. Installation of the oil reservoir 1. Fasten the two-armed washer (1) on side A of the oil reservoir (3), in the direction of the operator. Fasten the two-armed washer (2) on side B of the oil reservoir (3), in the direction of the hinges and fasten t he reservoir (Fig. -
Page 7: Machine Oil Level
TEXI Tronic 1 operation manual 4. Machine oil level 1. Information about lubrication 1) During first machine start-up, or after long idle time, it should be started in idle mode (2000 to 2500 rpm for about 10 minutes) 2) During machine operation, insert a paper oil level indicator under the hook in order to check if the amount of oil dosed to it is correct. -
Page 8: Fastening The Needle
TEXI Tronic 1 operation manual 6. Fastening the needle ATTENTION: Turn machine off before carrying out the below operations. Select the needle appropriate to the sewn material. 1. Turn pulley until the needle bar reaches its highest point. 2. Loosen screw (2) and hold the needle with part A directed in direction B. -
Page 9: Threading The Machine
TEXI Tronic 1 operation manual 9. Threading the machine Before threading, set the needle bar in its highest point. Hold the end of the thread and thread the machine in the following manner: 10. Stitch length regulation 1. Turn the stitch length regulation dial (1) in the direction of the arrow and set the desired value at indicator A on the machine arm. -
Page 10: Installing The Thread Stand
TEXI Tronic 1 operation manual 11. Installing the thread stand 1. Assemble the thread stand and insert it into the opening in the machine table top. 2. Fasten the fixing nut (1) in order to secure the stand. 12. Setting presser foot lifting height using the knee lifter 1. -
Page 11: Thread Tension Regulator
TEXI Tronic 1 operation manual 14. Thread tension regulator 1. Adjusting thread tension: 1) After turning the pressure regulator knob to the right (direction A) pressure will in- crease. 2) After turning the knob to the left (direction B) pressure will decrease. -
Page 12: Presser Foot Regulation
TEXI Tronic 1 operation manual 17. Presser foot regulation 1. Loose nut (2). After turning the pressure reg- ulator to the right (direction A) pressure will crease. 2. After turning the regulator to the left (direction B) pressure will decrease. -
Page 13: Feed Dog Tilting
TEXI Tronic 1 operation manual 20. Feed dog tilting To tilt the feed dog loosen screw B and turn screw A in the correct direction. Attention: After this regulation feed dog height is changed, and should be re-checked. 21. Needle bar and hook regulation 1. -
Page 14: Thread Guide Regulation
TEXI Tronic 1 operation manual 23. Thread guide regulation 1. During sewing light materials, the thread guide (1) should be moved to the right (direction B) in order to increase the length of thread pulled by the thread take-up. 2. During sewing of thick materials, the thread... -
Page 15: Ask Your Supplier About
TEXI Tronic 1 operation manual 26. Ask your supplier about:... -
Page 16: Ce Declaration Of Conformity
TEXI Tronic 1 operation manual CE DECLARATION OF CONFORMITY Distributor: Strima Sp. z o.o. Swadzim, st. Poznańska 54 62-080 Tarnowo Podgórne, Polska We declare, that the following product: Lockstitch machine model Tronic 1 (ZJ9503B/01) which this declaration relates, complies with the following directives:... - Page 17 TEXI Tronic 1 operation manual NOTES...
