10.10 LTC input

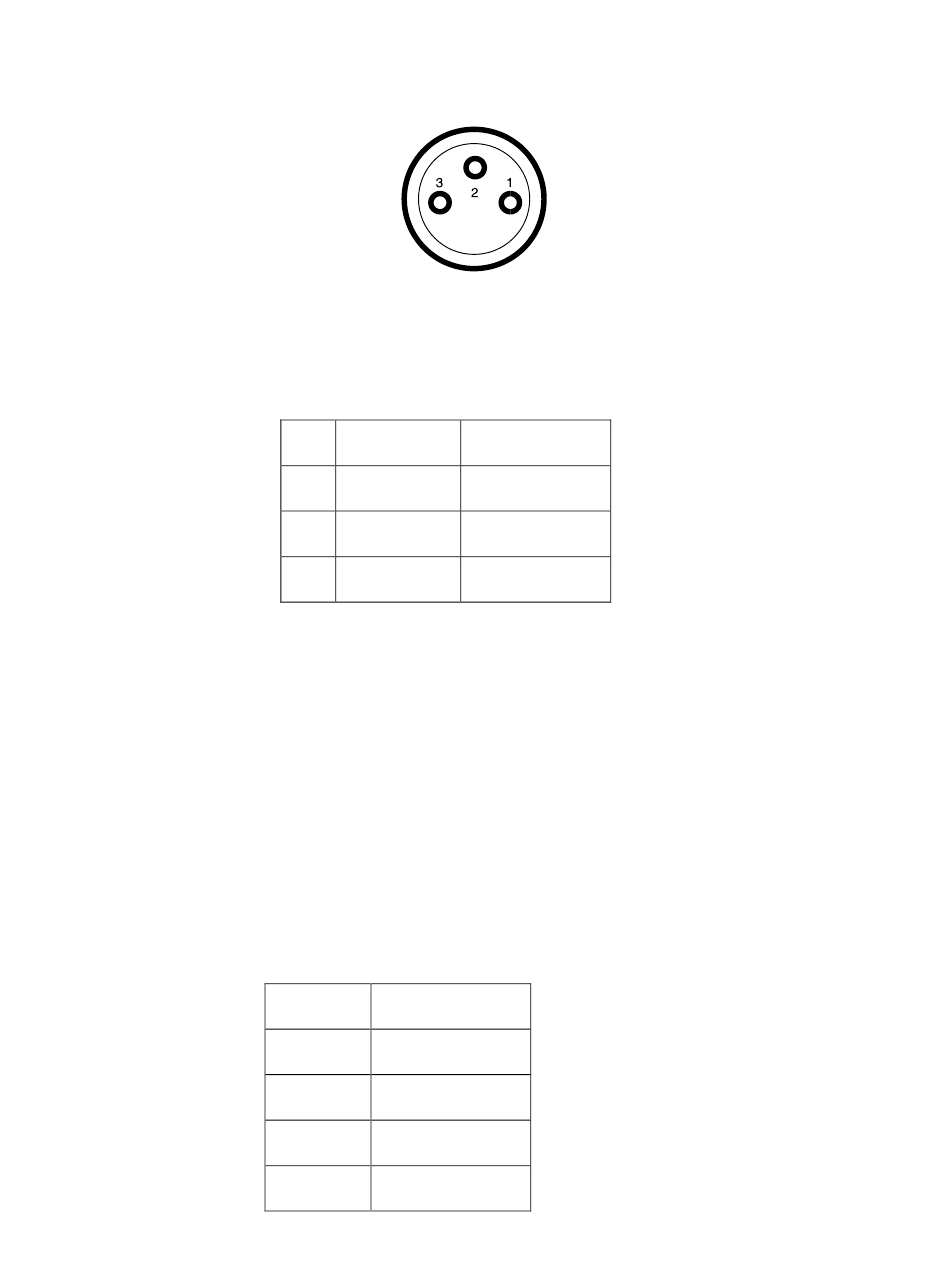

This connector can accept balanced or unbalanced inputs. Below is the front view of the input
connector.
This connector can accept balanced or unbalanced inputs. Below is the table for wiring the mating
flying lead connector:
The mating connector is the Neutrik 3-pin mini-XLR "P/N: RT3FC-B".

10.11 Accessory DC Power Out

Provides a 12V DC @ 4A supply to operate external accessories. Fused internally. This output is only
available when supplying the prompter with AC power (minimum supply rating 100VA).
Prompter Connector type:
Mating (cable) connector: 4 pin XLR Male plug; example is Neutrik NC4MX
SW Rev:1.25
Pin Balanced
1 Ground
2 LTC+
3 LTC-
4 pin XLR Female socket
Pin Description
1 Ground
2 No Connection
3 No Connection
4 +12 VDC
Unbalanced
No connection
LTC
Ground
