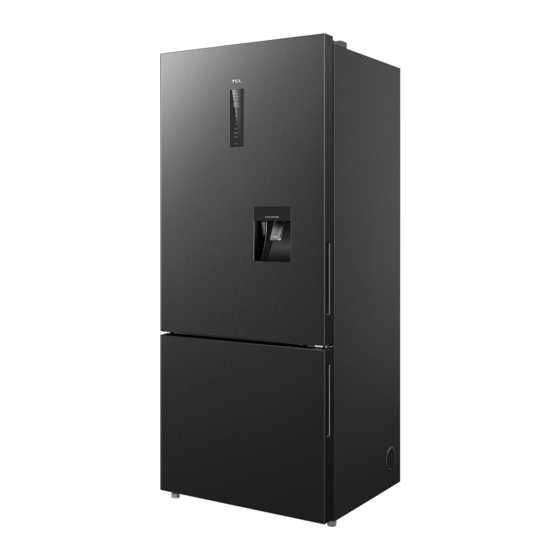

- Page 1 Frost-free Refrigerator Operating Instructions C440BFB C440BFG C440BFC C440BFN C440BFS C440BFW ■Please carefully read the operation instructions before powering on, and keep them safe for future reference. ■The products may subject to changes without notice.
-
Page 3: Table Of Contents
Contents Congratulations on purchasing this TCL refrigerator. We hereby express our thanks. Safety instructions ------------------------------------------------------------------------ Product introduction ---------------------------------------------------------------------- Handling and placement ----------------------------------------------------------------- Preparations prior to use ---------------------------------------------------------------- Operation keys ---------------------------------------------------------------------------- Operation and diagram of display board -------------------------------------------- Food storage -------------------------------------------------------------------------------... - Page 4 & Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensu e that all people using the appliance 「...
- Page 5 Risk of fire/flammable materials Do not place multiple portable socket outlets (power boards) or power supplies at the rear of the appliance.
- Page 6 & Safety information • Power cord must not be lengthened. ．心WARNING! When positioning the appliance ensure the supply cord is not trapped or damaged. A squashed or damaged power plug may overheat and cause a fire. • Make sure that you have easy access to the mains plug of the appliance.
- Page 7 & Safety inf ormation Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
- Page 8 & Safety info rmation Environment Protection � This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities.
- Page 9 Lighting Strip Bottle Shelf Refrigerating shelf Refrigeration Air Duct Back Plate Water Tank Humidity-Controlled Crisper Drawer Half-Bottle Shelf Variable Temperature Zone Shelf Variable Temperature Zone Component (T-Temp) Upper Freezer Half Drawer Twist ice maker Middle Freezer Drawer Lower Freezer Drawer Product specifications subject to change.
-
Page 10: Handling And Placement
Handling and placement The refrigerator shall be placed in an environment which is dry, has good ventilation, far from direct sunshine and heat source. >30cm >10cm >10cm T he refrigerator shall be Never place the refrigerator Do not operate the refrigerator on the foam base it was shipped on. -
Page 11: Preparations Prior To Use
Preparations prior to use 1.Remove all packing materials such as adhesive tape, plastic bags, etc., especially the foam base. 2.Use a warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added to warm water). 3. - Page 12 Operation and diagram of the electronic control panel...
- Page 13 Powering on for the first time Variable greenhouse Temperature adjustment in the variable temperature zone (T-Temp) (C440BFB/W/S/N/C/G ) In the unlocked state, repeatedly press the "Zone" button until the T-temp space lights up, then press the "Regulate" button to adjust the temperature in the variable temperature space. Each press of the "Regulate"...
- Page 14 freezing function after it is under in high freezing status for 4 hours. refrigerator chamber...
-
Page 15: Food Storage
4℃: Ideal for storing fruits and vegetables, locking in nutrients and preventing nutrient loss. -1℃: Suitable for storing eggs, dairy products, beverages, sausages, etc. -3℃: Perfect for storing ready-to-eat fresh meat, seafood, fish, and shrimp. Door Reversal For Door Reversal, please contact TCL Customer service for detailed instruction... - Page 16 Twist Ice Maker Operation Instructions(Available on selected models) Slowly lift the twist ice maker, and remove it toward the operator. Fill the ice box with drinking water via kettle. After a period of time in the refrigerator, twist the knob on the ice maker to release the ice cubes onto the ice box. Slowly lift the twist ice Fill the ice box with m aker, and remove it...
- Page 17 Disassembly and assembly method of accessory --Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out. --Fruit and vegetable box: for storing vegetables and fruits.
-
Page 18: Operation Keys
Operation keys -- Water dispenser: The users can take the drinking water through the equipment at any time according to the own needs, - Water taking: When the users want to drink water, they need to press (extrude) the water-taking handle or use the rigid container to press (extrude) the water-taking handle until the water outlet flows the water and after meeting the needs. - Page 19 Phenomenon:Heat on two sides and spacing part surface between refrigerating Temperature difference,and thus the light case will have condensation...
- Page 20 C440BFS C440BFN C440BFW C440BFB C440BFG C440BFC 412L 412L 412L 412L 412L 412L 270L 270L 270L 270L 270L 270L 106L 106L 106L 106L 106L 106L 220-240V〜50Hz 220-240V〜50Hz 220-240V〜50Hz 220-240V〜50Hz 220-240V〜50Hz 220-240V〜50Hz 1.65A 1.65A 1.65A 1.65A 1.65A 1.65A 249kWh/y 249kWh/y 249kWh/y 249kWh/y...
- Page 21 TCL Electronics Australia Pty Ltd. ABN 83 111 032 896 Telephone: 1300 738 149 sales.au@tcl.com www.tcl.com/au...
