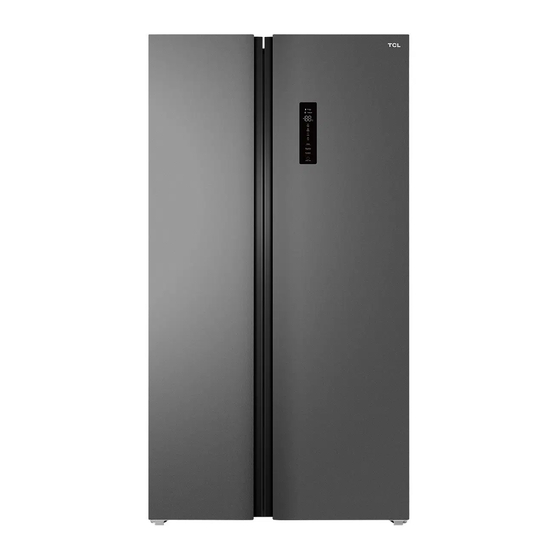

- Page 1 Frost-free Refrigerator Operating Instructions P525SBC P525SBB P525SBW P525SBS P525SBN P525SBG ■Please carefully read the operation instructions before powering on, and keep them safe for future reference. ■The products may subject to changes without notice.
-
Page 3: Table Of Contents
Contents Congratulations on purchasing this TCL refrigerator. We hereby express our thanks. Safety instructions ------------------------------------------------------------------------ Product introduction ---------------------------------------------------------------------- Handling and placement ----------------------------------------------------------------- Preparations prior to use ---------------------------------------------------------------- P 10 Operation keys ---------------------------------------------------------------------------- P 10 Operation and diagram of display board ---------------------------------------... - Page 4 & Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensu e that all people using the appliance 「...
- Page 5 Risk of fire/flammable materials Do not place multiple portable socket outlets (power boards) or power supplies at the rear of the appliance.
- Page 6 & Safety information • Power cord must not be lengthened. ．心WARNING! When positioning the appliance ensure the supply cord is not trapped or damaged. A squashed or damaged power plug may overheat and cause a fire. • Make sure that you have easy access to the mains plug of the appliance.
- Page 7 & Safety inf ormation Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
- Page 8 & Safety info rmation Environment Protection � This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities.
-
Page 9: Product Introduction
Product introduction Refrigerating chamber door Freezer chamber door Upper freezer glass shelf Refrigerator bottle holder Refrigerator drawer Freezer drawer Upper refrigerator glass shelf Freezer bottle holder The pictures are for reference only. Please refer to the object Product specifications subject to change. -
Page 10: Handling And Placement
Handling and placement Do not trolley the Certain space shall be left The refrigerator shall be refrigerator from the around the refrigerator, placed in an environment front or back. shown in the figure. which is dry, has good ventilation, far from direct sunshine and heat source. -
Page 11: Preparations Prior To Use
The outline dimension of the product and the space needed by the use of the product are shown int the following pictures: P525SBC/P525SBB >L1+380 >W1+600 P525SBW/P525SBS >L1+380 >W1+600 P525SBN/P525SBG >L1+380 >W1+600 Preparations prior to use 1. Remove all packing assemblies such as case fixing tape etc., especially the foam base. -
Page 12: Operation Keys
Operation keys Operation and diagram of the electronic control panel... - Page 13 Operation keys Powering on for the first time Under "Power Cool" state, the set temperature for the refrigerator chamber is 2℃ until Power Freezing function When the refrigerator is under unlock state, press “function” button repeatedly until the “Power Freezing” icon blinks, after that, stop the key operation and wait for 3 seconds to enter freezer chamber power freezing function.
- Page 14 Operation keys refrigerator chamber...
-
Page 15: Food Storage
Operation keys Foods storage refrigerator chamber (2℃~8℃) --The refrigerator chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink. --Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss. --The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing. -
Page 16: Disassembly And Assembly Method Of Accessory
Operation keys Disassembly and assembly method of accessory --Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out. -
Page 17: Failure Analysis
Failure analysis The following items shall be inspected before occurring failures which require maintenance: Failures:Refrigerator does not work,The refrigeration effect is poor Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator. -
Page 18: Technical Parameter
Technical prameter Technical parameter P525SBB P525SBW P525SBS P525SBG P525SBN P525SBC Model Climate type Electric shock resistance 505L 505L 505L 505L 505L 505L Total Storage Volume Storage 324L 324L 324L 324L 324L 324L Volume of Fridge Storage 156L 156L 156L 156L... -
Page 19: Packing List
Packing list P525SBB P525SBS P525SBN P525SBG P525SBW P525SBC... - Page 20 TCL Electronics Australia Pty Ltd. ABN 83 111 032 896 Telephone: 1300 738 149 sales.au@tcl.com www.tcl.com/au Material number:8B110-002053 Edition:202309-A.1...
