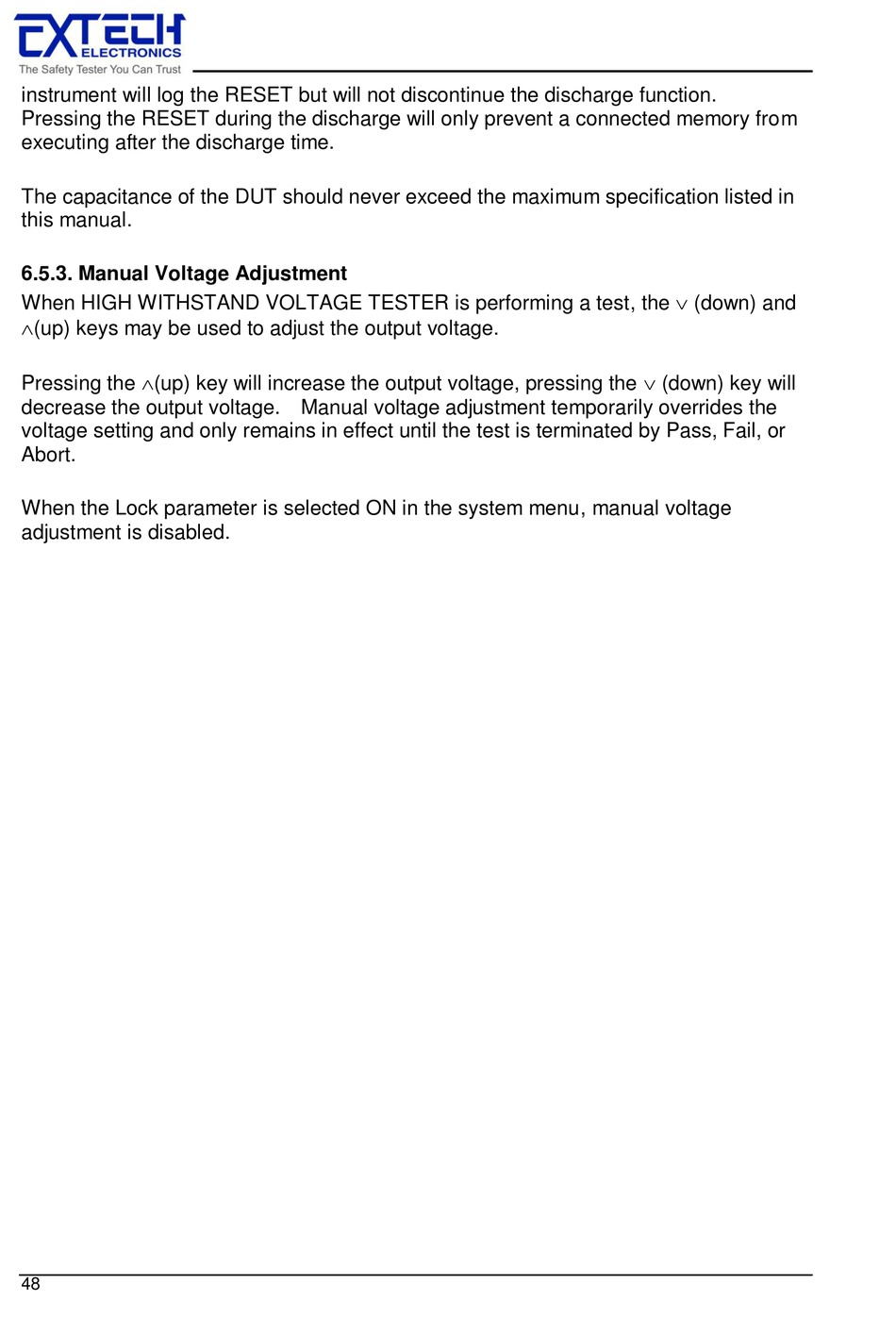

instrument will log the RESET but will not discontinue the discharge function.
Pressing the RESET during the discharge will only prevent a connected memory from
executing after the discharge time.
The capacitance of the DUT should never exceed the maximum specification listed in
this manual.
6.5.3. Manual Voltage Adjustment
When HIGH WITHSTAND VOLTAGE TESTER is performing a test, the (down) and
(up) keys may be used to adjust the output voltage.
Pressing the (up) key will increase the output voltage, pressing the (down) key will
decrease the output voltage. Manual voltage adjustment temporarily overrides the
voltage setting and only remains in effect until the test is terminated by Pass, Fail, or
Abort.
When the Lock parameter is selected ON in the system menu, manual voltage
adjustment is disabled.
48
