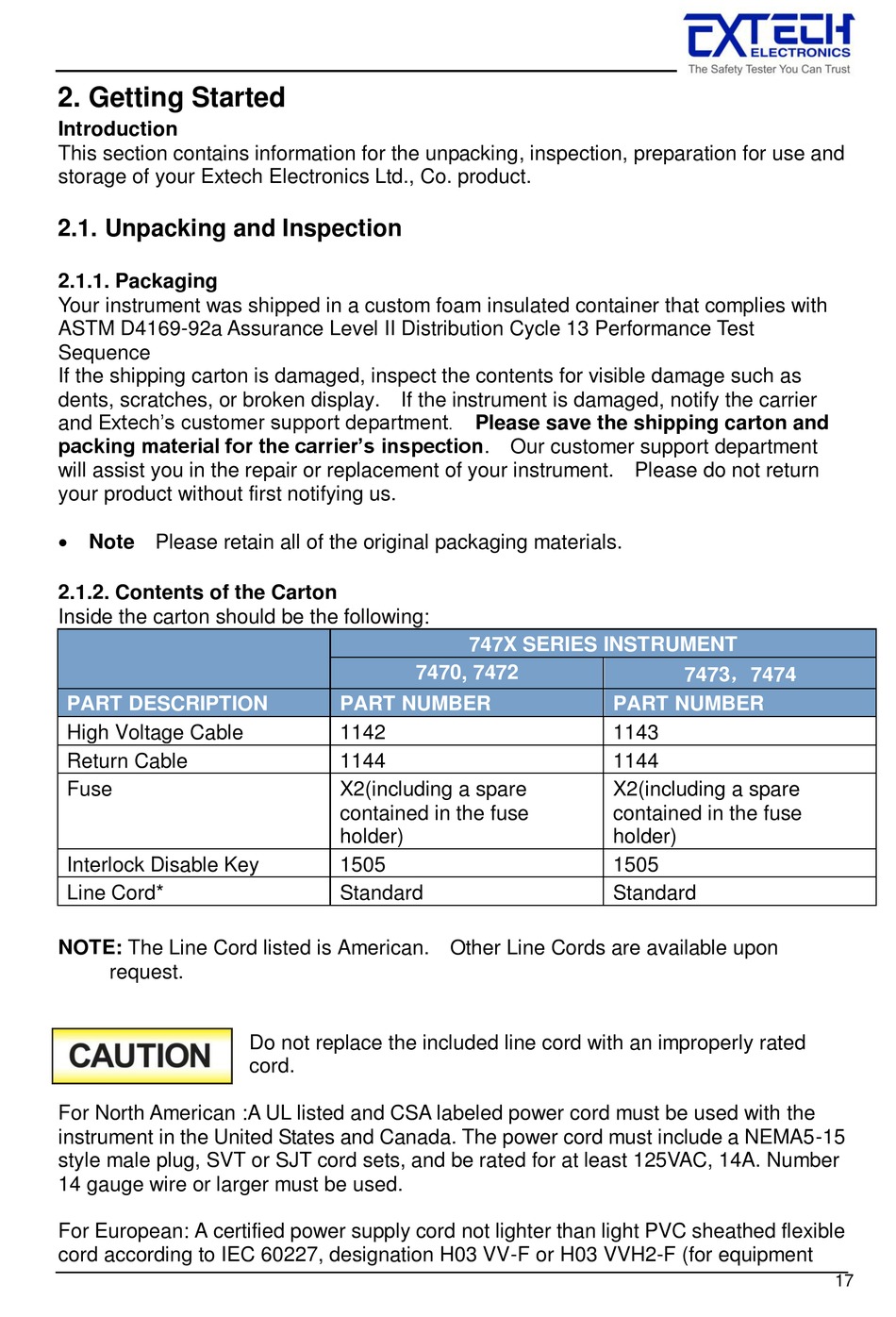

2. Getting Started

Introduction
This section contains information for the unpacking, inspection, preparation for use and
storage of your Extech Electronics Ltd., Co. product.

2.1. Unpacking and Inspection

2.1.1. Packaging
Your instrument was shipped in a custom foam insulated container that complies with
ASTM D4169-92a Assurance Level II Distribution Cycle 13 Performance Test
Sequence
If the shipping carton is damaged, inspect the contents for visible damage such as
dents, scratches, or broken display. If the instrument is damaged, notify the carrier
and Extech's customer support department. Please save the shipping carton and
packing material for the carrier's inspection. Our customer support department
will assist you in the repair or replacement of your instrument. Please do not return
your product without first notifying us.
 Note Please retain all of the original packaging materials.
2.1.2. Contents of the Carton
Inside the carton should be the following:
PART DESCRIPTION
High Voltage Cable
Return Cable
Fuse
Interlock Disable Key
Line Cord*
NOTE: The Line Cord listed is American. Other Line Cords are available upon
request.
For North American :A UL listed and CSA labeled power cord must be used with the
instrument in the United States and Canada. The power cord must include a NEMA5-15
style male plug, SVT or SJT cord sets, and be rated for at least 125VAC, 14A. Number
14 gauge wire or larger must be used.
For European: A certified power supply cord not lighter than light PVC sheathed flexible
cord according to IEC 60227, designation H03 VV-F or H03 VVH2-F (for equipment
7470, 7472
PART NUMBER
1142
1144
X2(including a spare
contained in the fuse
holder)
1505
Standard
Do not replace the included line cord with an improperly rated
cord.
747X SERIES INSTRUMENT
PART NUMBER
1143
1144
X2(including a spare
contained in the fuse
holder)
1505
Standard
7473，7474
17
