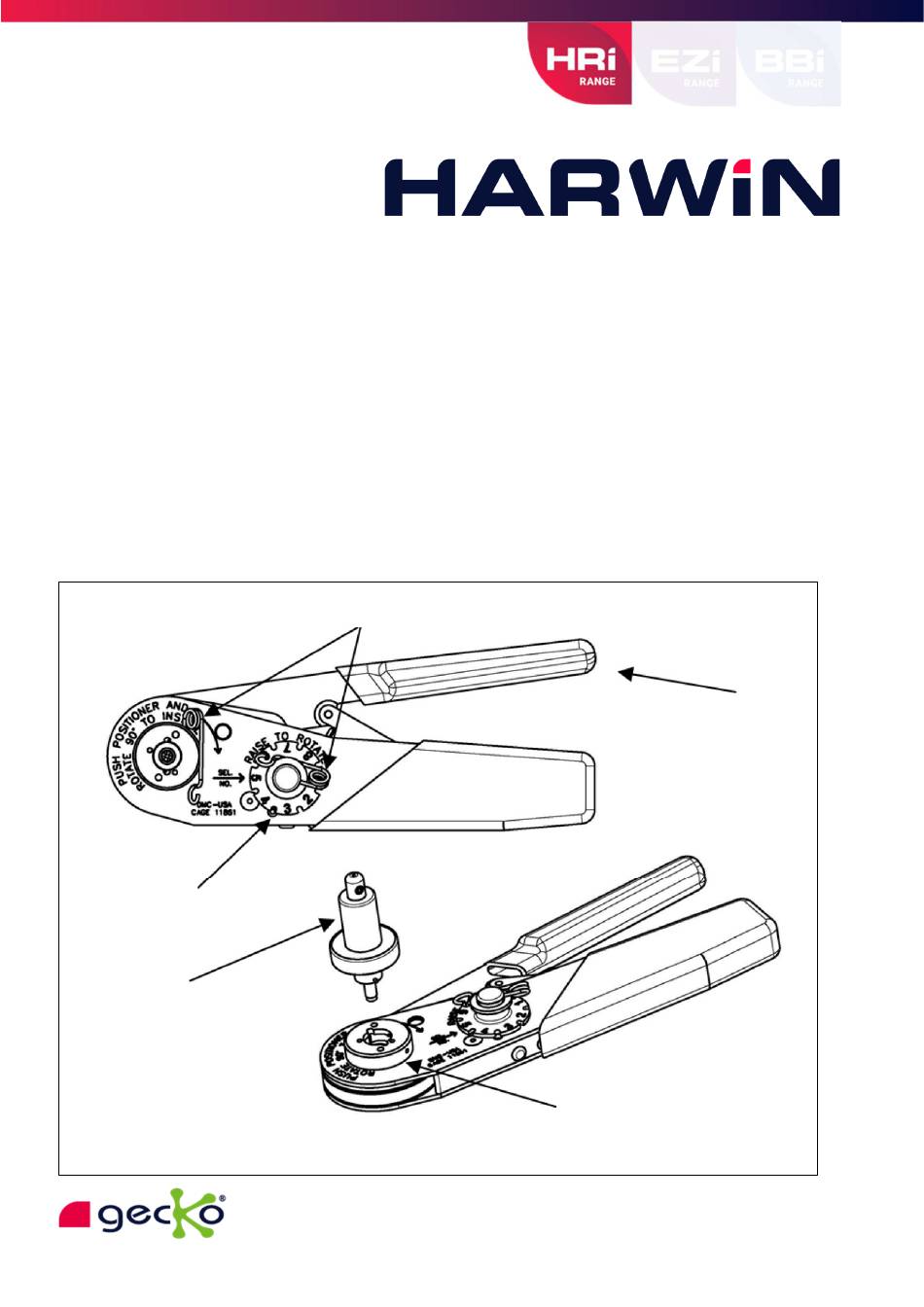

- Page 1 Instruction Sheet IS-37 Gecko Hand Crimp Tool Z125-900 Safety clip Tool in nearly closed position Crimp Setting Selector knob Positioner Positioner location guide // HARWIN.COM...
- Page 2 IS-37 Instruction Sheet for Z125-900 Gecko Hand Crimp Tool CRIMP CONTACT INFORMATION This Hand Crimp Tool has been designed for use with the following Gecko Crimp Contacts (when used with Positioner Z125-901): G125-0010005 ....Large bore Female crimp contact for 26 AWG wire ...
- Page 3 IS-37 Instruction Sheet for Z125-900 Gecko Hand Crimp Tool Cut the end of the cable to be terminated so that there is a clean cut end (Figure A). Strip the cable to the correct length (Figure B). We recommend that when the wire is stripped, it is clamped or supported close to the stripping area - this will prevent insulation slippage.
- Page 4 IS-37 Instruction Sheet for Z125-900 Gecko Hand Crimp Tool Apply light pressure to the wire in the direction shown by arrow in Figure G. Slowly release pressure on the plunger, and allow it to return to its default position as shown. Figure G Caution: Failure to allow the positioner plunger to return to its default position may result in indentor damage during crimping.
- Page 5 IS-37 Instruction Sheet for Z125-900 Gecko Hand Crimp Tool CONTACT ASSEMBLY TO HOUSING PROCEDURE Contacts are assembled to housings using the Assembly Tool Z125-902. See Instruction Sheet IS-38 for details on assembly. CARE OF TOOL There is virtually no maintenance required for the Z125-900 tool. However, it is good practice to keep the indenter tips free of debris.
