This Hand Crimp Tool has been designed for use with the following crimp contacts:
M30-1050046............... 1.25mm Pitch Crimp Contacts for 26-30 AWG, Reeled, Tin
M30-1060046 .............. 1.25mm Pitch Crimp Contacts for 26-30 AWG, Bag of 100, Tin
Harwin recommend the use of BS 3G 210 Type A PTFE Equipment Wire, MIL-W-16878/4 and UL
style 1213 or near equivalents.
Contact
M30-1050046
OR
M30-1060046
Harwin North America
T: +1 603 893 5376
E: misboston@harwin.com
IS-36
Issue: 3
Date: 27.04.2022

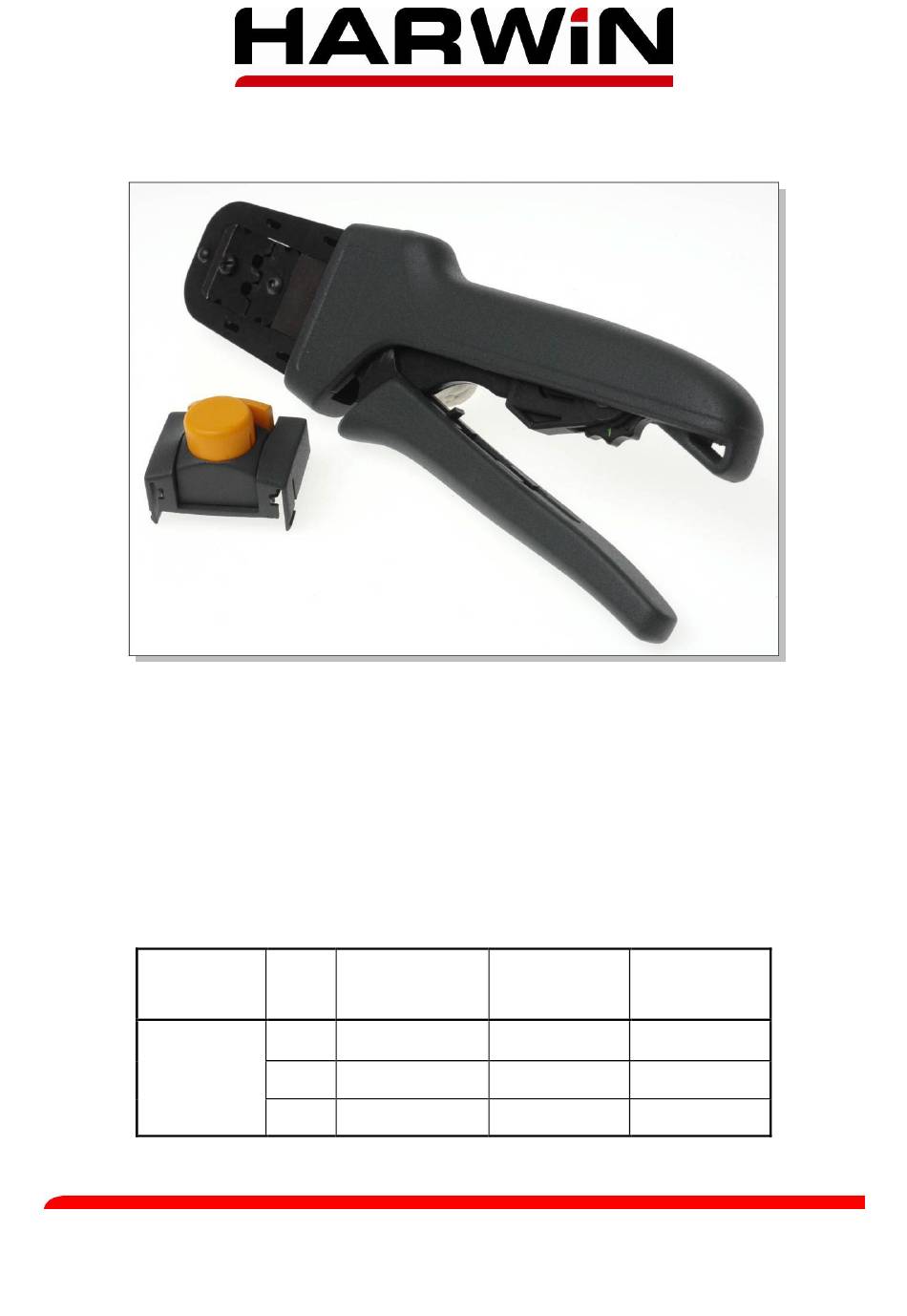

HAND CRIMP TOOL Z30-021
Wire
Typical Stranding
Gauge
(no of strands/Ø
(AWG)
mm)
26
7/0.15
28
7/0.12
30
1/0.25
Harwin Europe
T: +44 (0) 23 9231 4545
E: mis@harwin.co.uk
C/Order: 31490
Conductor
Minimum Pull-
cross-sectional
off Force (N)
area (mm²)
0.1237
0.0792
0.049
Harwin Germany
T: +49 (0) 89 3791 9400
E: wpohl@harwin.com
18.5
8.5
7.0
Harwin Asia
T: +65 6 779 4909
E: mis@harwin.com.sg
Page 1 of 7
Advertisement
Related Manuals for Harwin Z30-021
Summary of Contents for Harwin Z30-021
- Page 1 M30-1050046....1.25mm Pitch Crimp Contacts for 26-30 AWG, Reeled, Tin M30-1060046 ....1.25mm Pitch Crimp Contacts for 26-30 AWG, Bag of 100, Tin Harwin recommend the use of BS 3G 210 Type A PTFE Equipment Wire, MIL-W-16878/4 and UL style 1213 or near equivalents.
- Page 2 General information The Hand crimp tool Z30-021 consists of a Rigidus Hand Crimp Tool with a die-set designed for M30 crimp contacts. The tool is supplied with a locator, fitted to the rear of the tool, to ensure correct and consistent location of the crimp contacts within the tool.
-
Page 3: Wire Preparation
Correct position for the Rotate the locator down, snapping the lower tabs on the locator locator. into the bottom slots on the tool. WIRE PREPARATION Ensure that the wire to be crimped is within the specified range of sizes for the contact and the crimp tool. -
Page 4: Crimp Inspection
Whilst holding the locator in the forward position, insert the crimp contact into the correct locator nest. The wire size is marked on the crimp die, above each location. Release the locator button, allowing Close the handle, until the second the crimp contact to move back ratchet position engages. - Page 5 However, over time, this force may fall off slightly. The tool can be adjusted to cater for this wear and raise the preload force to give correct crimps. If you need to carry out this procedure, Harwin recommend that you crimp several samples before and during adjustment, until the pull-off force achieved is up to your standards.
- Page 6 If you need to remove the dies to clean the tool, or replace the dies due to damage, then this section will tell you how to remove the locator and the dies. Spare die sets are not available from Harwin, but here is how to do it. Removing the Locator: 2.
-
Page 7: Advice On Use
This tool is designed for hand use only, and must not be used with clamping, fixturing or use of handle extensions. If you have any questions about this instruction sheet, or the M30 connector range, please contact technical@harwin.co.uk. IS-36 Issue: 3 Date: 27.04.2022...
