HAND CRIMP TOOL M22520/2-01
This Hand Crimp Tool has been designed for use with the following Datamate crimp
sockets (when used with Positioner T5747):
M80-0110001......... Large bore crimp socket (22 AWG), Tin shell/Gold clip
M80-0110005......... Large bore crimp socket (22 AWG), Gold shell/Gold clip
M80-0130001......... Small bore crimp socket (24-28 AWG), Tin shell/Gold clip
M80-0130005......... Small bore crimp socket (24-28 AWG), Gold shell/Gold clip
The following Datamate Power Crimp Sockets can also be crimped (when used with
Positioner Z80-058):
M80-0550001......... Power crimp socket (18-20 AWG), Tin shell/Gold clip
M80-0550005......... Power crimp socket (18-20 AWG), Gold shell/Gold clip
HARWIN Inc
U.S.A.
Tel:
812 285 0055
Fax:
812 285 0056
E-Mail:
mis@harwin.com
IS-01
Issue: 2
Date: 06.09.00
(used in M80-889XX01 and M80-899XX01)
(used in M80-889XX05 and M80-899XX05)
(used in M80-888XX01 and M80-898XX01)
(used in M80-888XX05 and M80-898XX05)
(used in M80-716XX01 and M80-719XX01)
(used in M80-716XX05 and M80-719XX05)
HARWIN plc
023 9231 4545
023 9231 4590
mis@harwin.co.uk
C/Note: 5393
U.K.
HARWIN pte
Singapore
65 779 1304
65 779 3868
mis@harwin.com.sg
Side 1
Advertisement
Table of Contents
Related Manuals for Harwin M22520/2-01
Summary of Contents for Harwin M22520/2-01
- Page 1 HAND CRIMP TOOL M22520/2-01 This Hand Crimp Tool has been designed for use with the following Datamate crimp sockets (when used with Positioner T5747): M80-0110001..Large bore crimp socket (22 AWG), Tin shell/Gold clip (used in M80-889XX01 and M80-899XX01) M80-0110005..Large bore crimp socket (22 AWG), Gold shell/Gold clip (used in M80-889XX05 and M80-899XX05) M80-0130001..

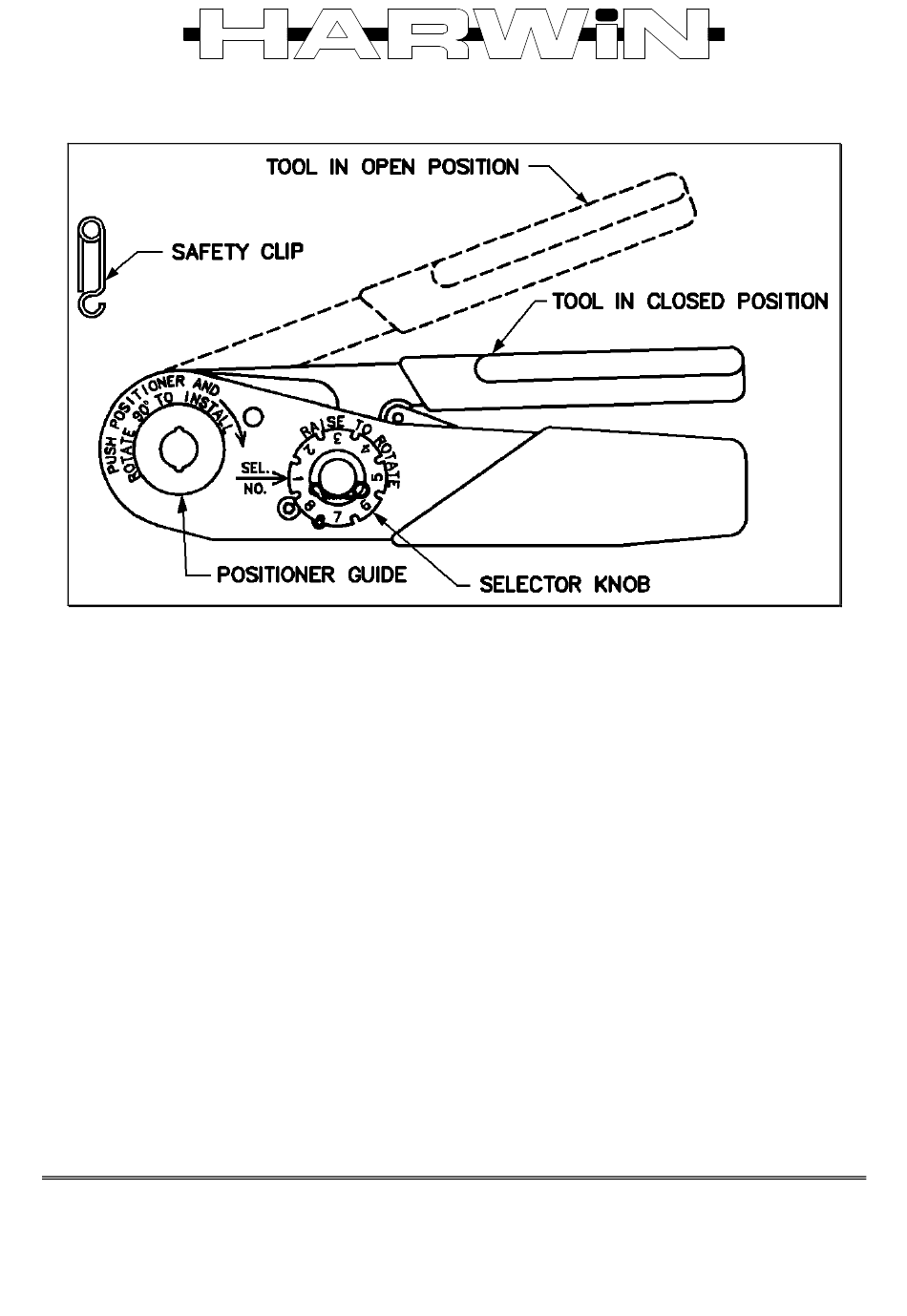

- Page 3 K3607-T6 ....Power crimp socket (18 AWG), Tin shell/ Tin clip GENERAL INFORMATION The Hand crimp tool M22520/2-01 consists of a basic hand tool, which should be used with a positioner. The contact is correctly crimped when the tool is free to open at the fully closed position, i.e., when the ratchet releases.
- Page 4 CRIMPING PROCEDURE Ensure that the wire to be crimped is within the specified range of sizes for the contact and the crimp tool. Failure to use the specified wire size will result in poor quality crimps and possible tool damage. Table 1 Contact Crimp Type...
- Page 5 Instruction Sheet IS-22 for details on assembly. CARE OF TOOL There is virtually no maintenance required for the M22520/2-01 tool. However, it is good practice to keep the indenter tips free of residual colour band deposits and other debris. A small wire brush may be used for this purpose.
- Page 6 Z1023-00 G125-MH15005L7P M80-8412042 M80-8662622 M80-5400622 M22520-02-01 M20-9760742 Z80-292 Z30-021 DEV-001 M20-9752046 M80-4801605 Z50-020 G125-MS12605M2P G125-FV12005F1P G125-9641600 M80-4D10605F2-02-327-00-000 G125- FC11005F0-0450L G125-FC11005F1-0150F1 M80-4051605 M80-FC325F1-04-0300L M80-5T10622MC M80-5T10805M2-02-331-00-000 M80-FC23468FC-0150L M80C150968C M22-6013005 M50-3111042 M80-4122042 M80-4123442 M80-5000000M3-10-332-00-000 M80- 9400605 M80-9424205 M80-MV311M2-06 H2039-01 M20-9970845 M80-4201442 Z80-300 Z1022-00 M83-LFT1F2N27-0000-000 M83- LFT1F2N36-0000-000 M80-8771722 M80-8871001 M22520/2-01...
