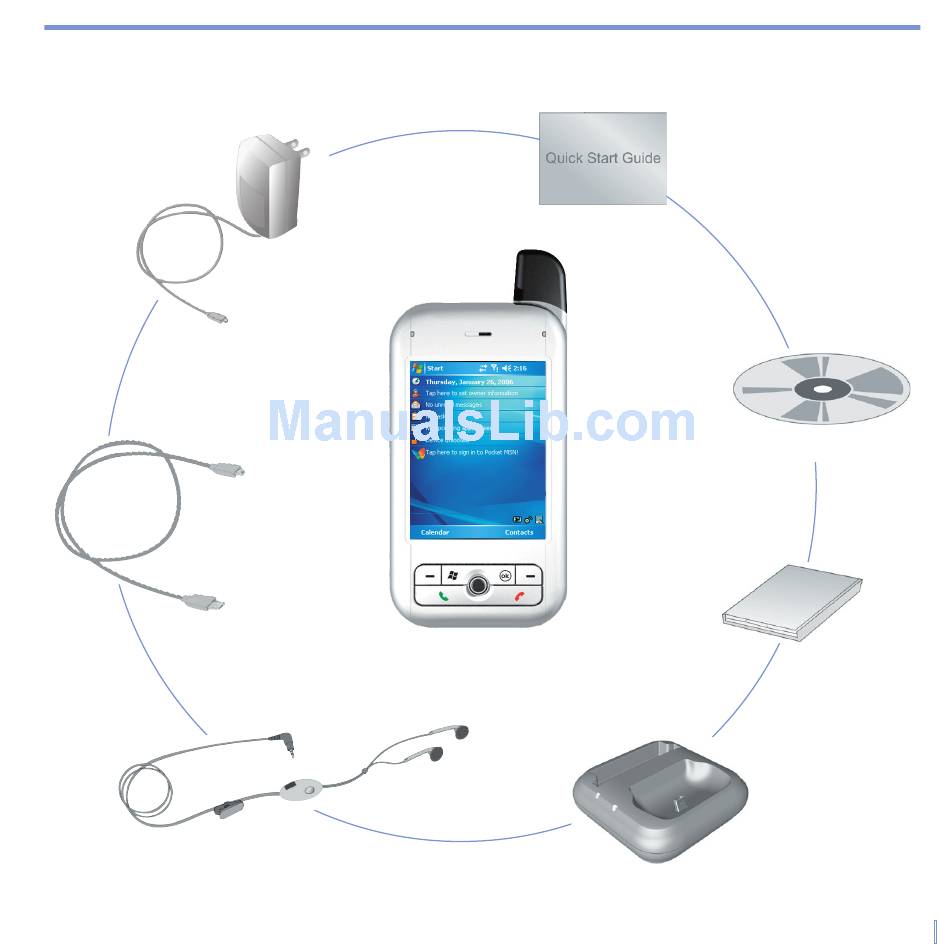

- Page 1 What’s in the Box? Quick Start Guide AC Adapter Getting Started CD / User Manual CD USB Cable Pocket PC Phone Battery Headset USB Cradle...
-
Page 2: Device View
Device view 24 25... -
Page 3: Device Components
Device components POWER/Backlight Button MiniSD Card Slot Voice Recorder Volume Internet Explorer Infrared Port Antenna Notification LED 1 Speaker Notification LED 2 Touch Screen Left SOFT KEY START Button OK Button Right SOFT KEY TALK Button NAVIGATION Control END Button Stylus and Stylus Slot Press to turn your device on/off. - Page 4 External Antenna Connector Camera Lens Flash Self-Portrait Mirror RESET Button Sync Connector Earphone Jack Microphone CAMERA Button Accessories AC adapter USB cable Stereo-wired headset with volume control jog dial and Send/End button USB cradle You can connect your device to an external antenna to utilize the superior reception quality.
-
Page 5: The Qwerty Keyboard
The QWERTY keyboard Your device provides you with a on your PC. To use the hardware keyboard, slide the main screen rightward to reveal the keyboard. Note: Once the keypad is revealed, the screen orientation changes from portrait to landscape. You can do the following with the QWERTY keyboard: •... -
Page 6: Getting Your Device Ready
Getting Your Device Ready Install and charge the battery New batteries are shipped partially charged. Before you can use your Pocket PC Phone, you need to install and charge the battery. To install the battery, remove the battery cover first, and then insert the battery by aligning the exposed copper part of the battery pack with the protruding copper conductor. -
Page 7: Making A Call
Making a Call Like a standard mobile phone, you can use your Pocket PC Phone to make, receive, and keep track of calls and send SMS messages. You can also take notes while talking, and dial directly from Contacts. The Phone screen From the Phone screen, you can access Call History, Speed Dial, and Phone settings. -
Page 8: Synchronizing With Activesync
Synchronizing with ActiveSync Using Microsoft ActiveSync , you can synchronize information on your device with ® ® information on your PC, such as Outlook content. ActiveSync is already installed on your device, but you need to install it on your PC if you don’t already have it. Insert the Getting Started CD into the CD drive of your PC. -
Page 9: Pc Requirement To Run Activesync
PC requirement to run ActiveSync 4.x To connect your device to the PC, you have to installed Microsoft on your PC. ActiveSync 4.x is included in the Installation CD, which is compatible with the following operating systems and applications: • Microsoft Windows 2000 Service Pack 4... -
Page 10: Setting Up An Email Account
Setting Up an E-mail Account You can send E-mail messages by synchronizing or by connecting directly to an E-mail server through your Internet service provider or a corporate network. www. mywindowsmobile.com - here you can customize email settings per your device and carrier. -
Page 11: Sending A Message
Sending a Message Messaging is where all of your e-mail accounts and your text message account are located. You can send and receive Outlook e-mail, Internet e-mail through an Internet service provider (ISP), and text messages (SMS). You can also access e-mail from work using a VPN connection. -
Page 12: Browsing The Internet
Browsing the Internet Your device features the powerful networking functions that enable you to connect to the Internet. You can set up connections to the Internet or to a corporate network to browse the Internet. The pre-loaded browser, Internet Explorer Mobile, is a full-featured Internet browser, and optimized for use on your mobile device. -
Page 13: Using Comm Manager
Using Comm Manager Comm Manager acts like a central switcher that lets you enable or disable phone features as well as manage your data connections easily. To open Comm Manager • Tap Start > Programs > Comm Manager. Simply tap the corresponding button to enable or disable a feature. Tap to toggle between enabling or disabling (turn on Flight mode) the phone. -
Page 14: Connect To A Wi-Fi Network
Connect to a Wi-Fi network On the Comm Manager screen, tap the Wi-Fi button to turn on/off the wireless function. Tap Settings > Wi-Fi Settings to configure the required settings. When the configuration is completed, you can connect to a Wi-Fi network using your device. Note Tap the Network Cards icon ( Configure Wireless Networks screen, which allows you to configure wireless networks... - Page 15 Check for a Wireless LAN signal You can check the current wireless connection status from the following three screens of your device: • Today screen. If your device detects a WLAN network connection, the WLAN connection icon appears at the top of the Today screen. •...
-
Page 16: Using Bluetooth
Using Bluetooth Bluetooth is a short-range wireless communications technology. Devices with Bluetooth capabilities can exchange information over a distance of about 10 meters without requiring a physical connection. You can even beam information to a device in a different room, as long as it is within range. -
Page 17: Beam Information Using Bluetooth
To accept a Bluetooth partnership: Ensure that Bluetooth is turned on and in discoverable mode. Tap Yes when prompted to establish a partnership with the other device. Enter a passkey (the same passkey that is entered on the device requesting the partnership) to establish a secure connection. -
Page 18: Using The Camera And Camcorder
Q.10 Using the Camera and Camcorder Taking photos and recording video clips along with audio is easy with your device’s built-in camera. Launch the camera • Start > Programs > -or- • Start > Programs > Pictures & tap the Camera icon. -or- •... -
Page 19: View Pictures
Use the Pictures & Videos program The Pictures & Videos program on your device collects, organizes, and sorts all of your captured images and video clips in the BMP, JPEG, AVI, and MP4 formats on your device. You can view/play pictures and video clips on your device. You can even view the pictures as a slide show, beam them, send them via e-mail, edit them, or set them as the background on the Today screen. -
Page 20: Using The Windows Media Player
Q.11 Using the Windows Media Player You can use Microsoft Windows Media Player 10 Mobile for Pocket PC to play digital audio and video files that are stored on your device or on a network, such as on a Web site. -
Page 21: About The Controls
About the controls The following are available controls on the Windows Media Player. This control Does this Plays/pauses a file. Skips to the beginning of the current file or to the previous file. Skips to the next file. Adjusts the playback progress of a selected file. -
Page 22: Entering Information
Q.12 Entering Information When you start a program or select a field that requires text or numbers, Input Panel automatically becomes available. Input Panel provides access to the various input methods available on your device, including Block Recognizer, Keyboard, Letter Recognizer, Phone Pad, and Transcriber. -
Page 23: Status Indicators
Q.13 Status Indicators The Today screen displays important information, such as upcoming appointments and status indicators. Following are some of the status icons that you may see on your device: Icon Description Indicates the battery is fully charged. Indicates the battery is very low. Battery charging. -
Page 24: Customizing Your Device
Q.14 Customizing Your Device You can customize the look and feel of your device and set the time and date according to the current time zone. Customize the Today screen Start > Settings > Personal tab > On the Appearance tab, select the desired theme for the background of the Today screen. -
Page 25: Protect Your Device With A Password
Q.15 Making Your Device More Secure You can prevent unauthorized access to any part of the device by using password protection. You create your own password when you begin using your device. Protect your device with a password Start > Settings > Personal tab > Select the Prompt if device unused for check box, and in the box to the right, select how long your device must be turned off before a password is required. -
Page 26: Finding More Information
Q.16 Finding More Information For more instructions, refer to the User Manual or tap Start > Help on your device for on-device help.
