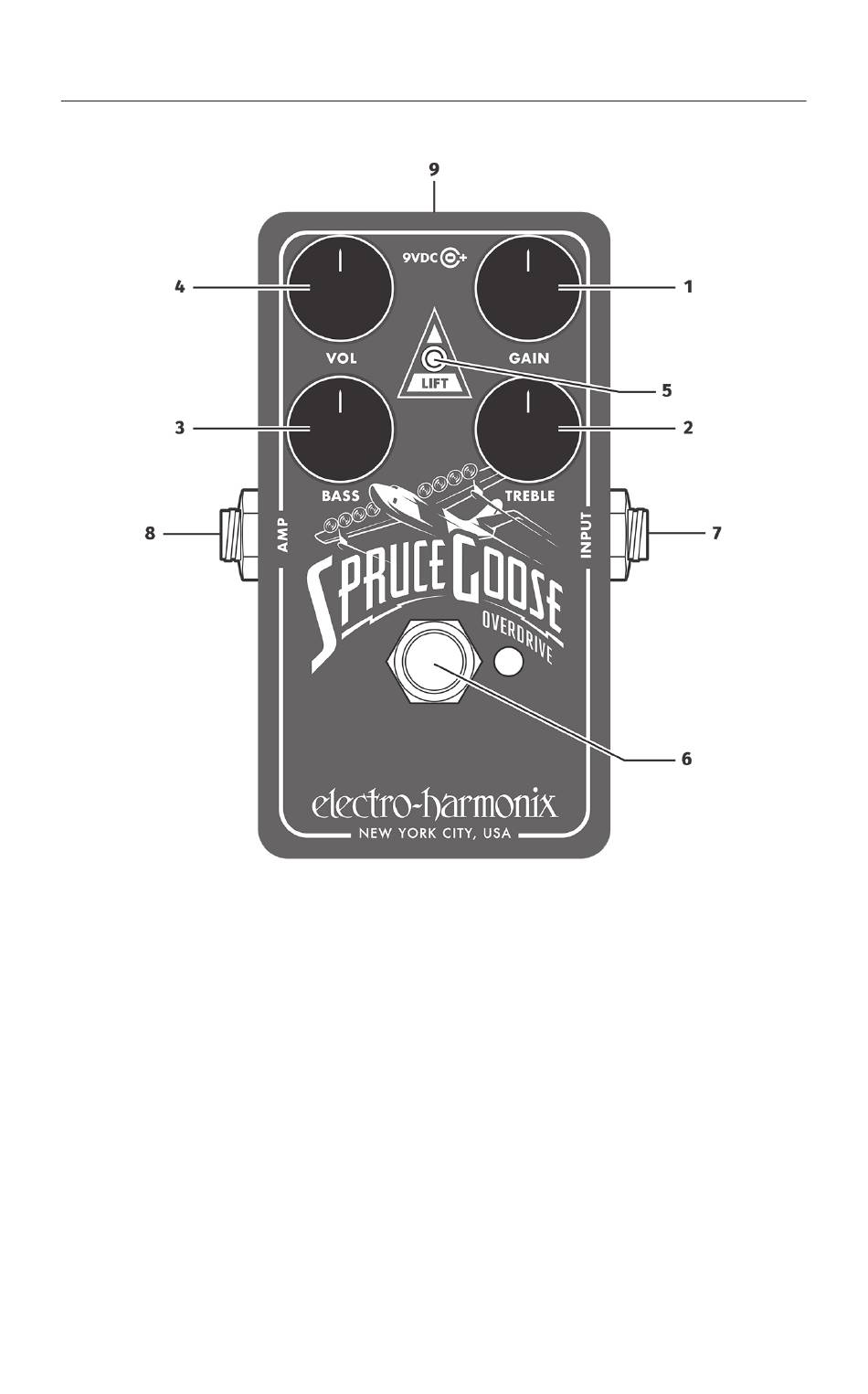

Controls and Connections

1. GAIN Knob Adjusts the amount of gain and distortion. As you turn this knob clock-
wise, your signal gets louder and more saturated.
2. TREBLE Knob Controls the high frequency EQ of your signal. The higher the setting,
the brighter the output signal.
3. BASS Knob Controls the low frequency EQ of your signal. The bass EQ is flat at noon.
As you turn BASS clockwise from noon, the bass response increases. As you turn
counterclockwise from noon, the bass response is cut.
4. VOL Knob Sets the output level of the Spruce Goose.
5. LIFT Switch LIFT gooses the input signal before it hits the overdrive circuit. The
mid position provides 9dB of gain, which helps get more drive from low output
pickups. The high position provides 21dB of gain, adding even more saturation and
distortion. The low position does not provide any additional gain.
6. FOOTSWITCH and STATUS LED The soft footswitch engages or bypasses the effect.
The status LED lights when the effect is engaged. The LED is off in bypass. The
