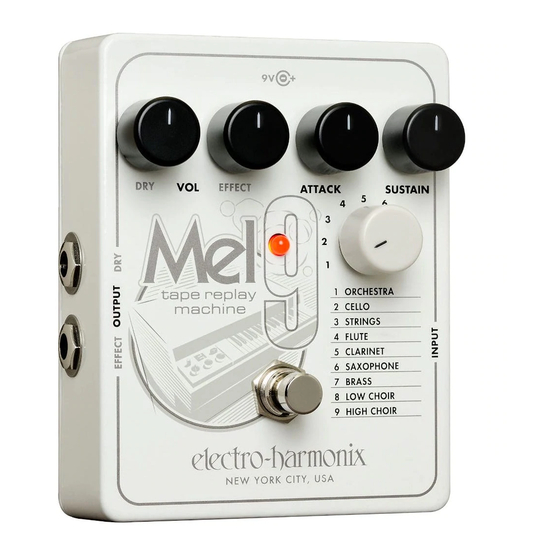

Congratulations on purchasing the Electro-Harmonix MEL9 Tape Replay Machine.
Now any electric guitar player can have access to nine magically quirky, dark and
unique Mellotron
cumbersome 13-pin MIDI pickups! In addition to electric guitar, you can trigger
the MEL9 with any instrument that produces an electrical output, such as a
keyboard or a bass, down to 55 Hz or A1.
The polyphonic MEL9 has superior tracking; you can create single notes or
chords with ease. The MEL9 will follow guitar bends, dive bombs, slurs, and any
other guitar expression/performance techniques you can throw at it!
WARNING: Your MEL9 comes equipped with an Electro-Harmonix 9.6DC-200BI power
supply (same as used by Boss
100mA at 9VDC with a center negative plug. Using the wrong adapter or a plug with the
wrong polarity may damage your MEL9 and void the warranty.

GETTING STARTED

Connect the supplied power adapter to the 9V power jack. Plug your instrument
into the INPUT jack; connect your amp to the EFFECT OUTPUT jack. Set the DRY
knob to minimum (fully counterclockwise) and set the other top row knobs to 12
o'clock. Select a preset ("ORCHESTRA" is a good starting point) and step on the
footswitch to turn on the LED. Play your instrument and adjust controls to your
liking.
Mellotron is a registered trademark of David Kean, M. Resch AB and
Markus Resch.
MEL9
Tape Replay Machine
®
sounds. No more extra devices such as special and
®
& Ibanez
®
: 9.6 Volts DC 200mA). The MEL9 requires

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEL9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electro-Harmonix MEL9

  • Page 1 55 Hz or A1. The polyphonic MEL9 has superior tracking; you can create single notes or chords with ease. The MEL9 will follow guitar bends, dive bombs, slurs, and any other guitar expression/performance techniques you can throw at it! WARNING: Your MEL9 comes equipped with an Electro-Harmonix 9.6DC-200BI power...
  • Page 2 The EFFECT OUTPUT jack sends the mix set by the DRY and EFFECT volume controls. BYPASS FOOTSWITCH Press the BYPASS footswitch to toggle the MEL9 OUTPUT jack between buffered BYPASS and EFFECT mode. The status LED lights when you are in EFFECT mode.
  • Page 3 PRESET DESCRIPTIONS 1. ORCHESTRA – This sound represents a full orchestra—including an octave below the normal guitar—and produces a gigantic, full sound. 2. CELLO – This sound of a solo cello includes the cello’s natural vibrato. 3. STRINGS – Presenting the sound of a small four-piece string section, including natural vibrato.
  • Page 4 TIPS ON GETTING OPTIMUM PERFORMANCE FROM THE MEL9 1. The MEL9 is generally best used as the first pedal in an effects chain. Place modulation, delay, and reverb effects after the MEL9. The unit will not perform well if placed in the effects loop of a guitar amp.
  • Page 5 WARRANTY INFORMATION Please register online at http://www.ehx.com/product-registration or complete and return the enclosed warranty card within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product that fails to operate due to defects in materials or workmanship for a period of one year from date of purchase.
  • Page 6 FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B Note: digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
