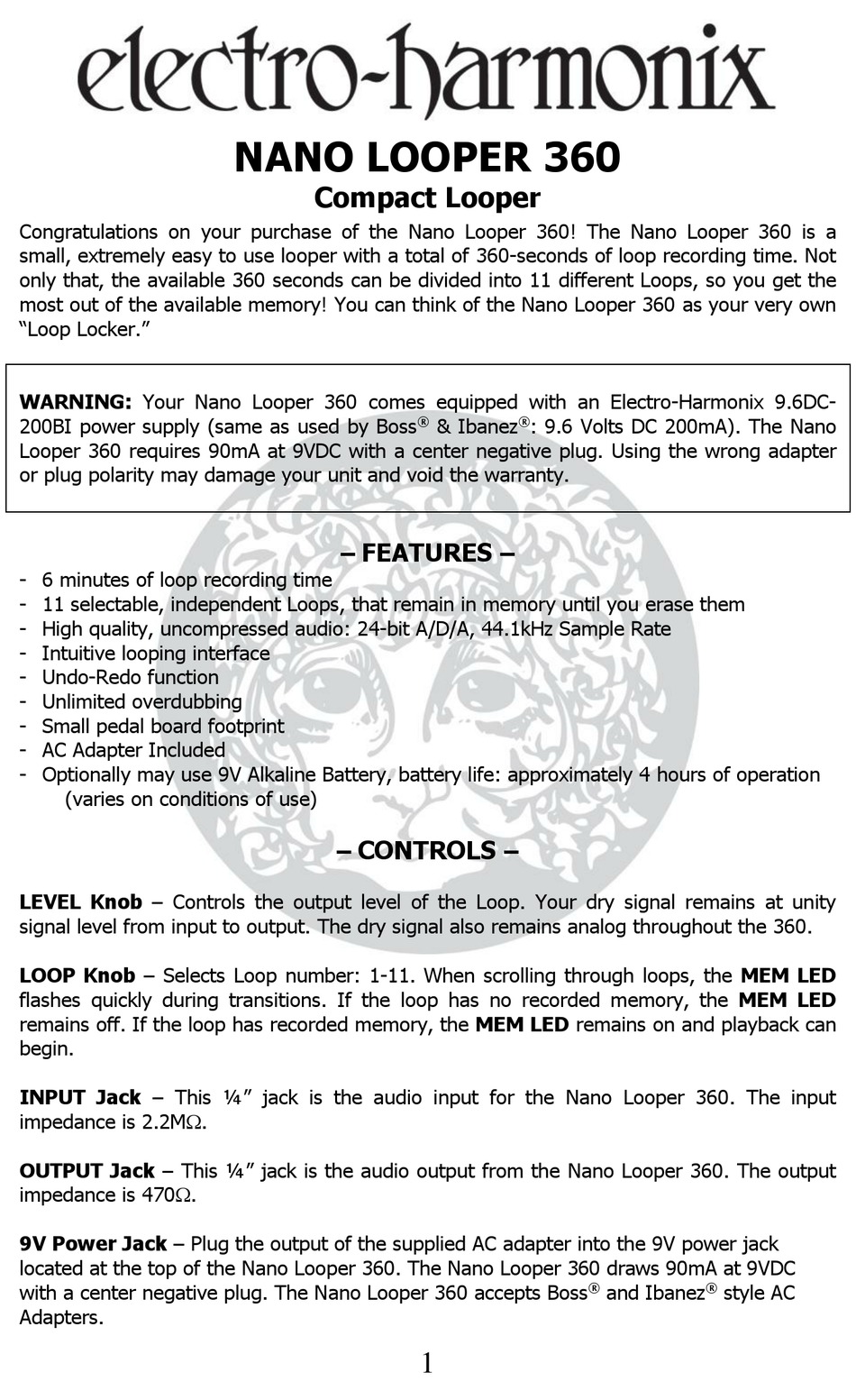

NANO LOOPER 360
Compact Looper
Congratulations on your purchase of the Nano Looper 360! The Nano Looper 360 is a
small, extremely easy to use looper with a total of 360-seconds of loop recording time. Not
only that, the available 360 seconds can be divided into 11 different Loops, so you get the
most out of the available memory! You can think of the Nano Looper 360 as your very own
"Loop Locker."
WARNING: Your Nano Looper 360 comes equipped with an Electro-Harmonix 9.6DC-
200BI power supply (same as used by Boss
®
& Ibanez
®
: 9.6 Volts DC 200mA). The Nano
Looper 360 requires 90mA at 9VDC with a center negative plug. Using the wrong adapter
or plug polarity may damage your unit and void the warranty.

FEATURES

- 6 minutes of loop recording time
- 11 selectable, independent Loops, that remain in memory until you erase them
- High quality, uncompressed audio: 24-bit A/D/A, 44.1kHz Sample Rate
- Intuitive looping interface
- Undo-Redo function
- Unlimited overdubbing
- Small pedal board footprint
- AC Adapter Included
- Optionally may use 9V Alkaline Battery, battery life: approximately 4 hours of operation
(varies on conditions of use)

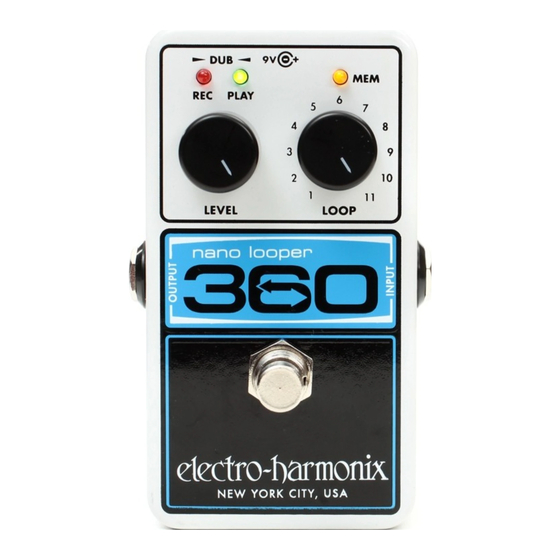

CONTROLS

LEVEL Knob – Controls the output level of the Loop. Your dry signal remains at unity
signal level from input to output. The dry signal also remains analog throughout the 360.
LOOP Knob – Selects Loop number: 1-11. When scrolling through loops, the MEM LED
flashes quickly during transitions. If the loop has no recorded memory, the MEM LED
remains off. If the loop has recorded memory, the MEM LED remains on and playback can
begin.
INPUT Jack – This ¼" jack is the audio input for the Nano Looper 360. The input
impedance is 2.2M.
OUTPUT Jack – This ¼" jack is the audio output from the Nano Looper 360. The output
impedance is 470.
9V Power Jack – Plug the output of the supplied AC adapter into the 9V power jack
located at the top of the Nano Looper 360. The Nano Looper 360 draws 90mA at 9VDC
with a center negative plug. The Nano Looper 360 accepts Boss
®
and Ibanez
®
style AC
Adapters.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NANO LOOPER 360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electro-Harmonix NANO LOOPER 360

  • Page 1 360-seconds of loop recording time. Not only that, the available 360 seconds can be divided into 11 different Loops, so you get the most out of the available memory! You can think of the Nano Looper 360 as your very own “Loop Locker.”...
  • Page 2: Quick Start Guide

    Overdubbing will never change the length of the loop. If the loop repeats during overdubbing, the REC LED and PLAY LED will both turn off briefly. The Nano Looper 360 can overdub indefinitely, allowing you to continuously overdub new audio onto your loop.
  • Page 3: Factory Restore

    MEM LED remaining lit. LOOP MEMORY Any recorded audio is stored automatically to the Nano Looper 360’s internal memory. All recorded loops will remain in memory until they are erased. Power cycling does not erase loops unless power is cut while recording the loop. Any loop or overdub that was being recorded at the time of power loss will not be saved by the 360.
  • Page 4 WARRANTY INFORMATION Please register online at http://www.ehx.com/product-registration or complete and return the enclosed warranty card within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product that fails to operate due to defects in materials or workmanship for a period of one year from date of purchase.
