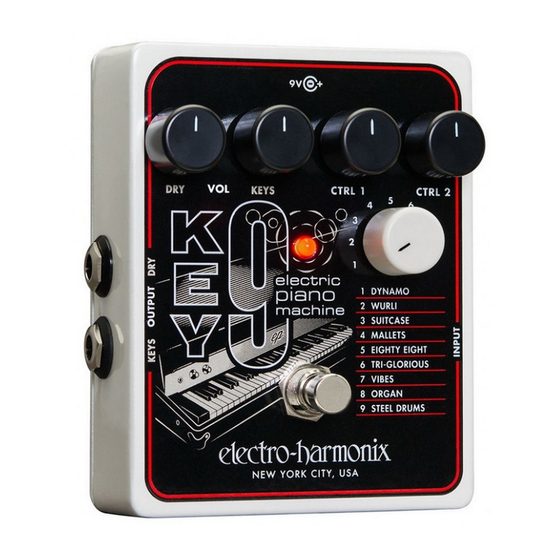

KEY9
Electric Piano Machine
Congratulations on purchasing the Electro-Harmonix KEY9 Electric Piano Machine. The
KEY9 transforms the tone of a guitar and/or keyboard into a convincing electric piano
emulation, including several variations of the classic Rhodes
The KEY9 also features lively recreations of vibes, mallets, an organ, and even steel
drums! Based on the popular EHX B9 and C9 pedals, the KEY9 swerves into electro-
acoustic territory via knobs that control DRY and KEY volume, as well as preset-specific
features that are adjusted with the CTRL 1 and CTRL 2 knobs.
WARNING: Your KEY9 comes equipped with an Electro-Harmonix 9.6DC-200BI power supply
(same as used by Boss ® & Ibanez ® : 9.6 Volts DC 200mA). The KEY9 requires 100mA at 9VDC
with a center negative plug. Using the wrong adapter or a plug with the wrong polarity may
damage your KEY9 and void the warranty.
GETTING STARTED
Connect the supplied power adapter to the 9V power jack. Plug your instrument into
the INPUT jack; connect your amp to the KEYS OUTPUT jack. Set the DRY knob to
minimum and all the other top row knobs to about mid position. Select the preset
named DYNAMO and step on the footswitch to turn on the LED. Play your instrument
and adjust controls to your liking.
DRY VOLUME KNOB
Sets the output volume of the untreated instrument signal at the KEYS OUTPUT jack.
KEYS VOLUME KNOB
Controls the overall volume of the selected KEYS preset.
CTRL 1 & CTRL 2 KNOBS
See the preset descriptions on the next page for details.
DRY OUTPUT JACK
The DRY OUTPUT jack outputs the signal present at the INPUT jack through a buffer
circuit. The dry signal is outputted regardless if the KEY9 is in Effect or Bypass mode.
KEYS OUTPUT JACK
The KEYS OUTPUT jack sends the mix set by the DRY and KEYS VOLUME controls.
BYPASS FOOTSWITCH
Press the BYPASS footswitch to toggle the KEYS OUTPUT jack between buffered Bypass
and Effect mode. The status LED lights when in Effect mode.
® and Wurlitzer ® sounds.
