O P E R A T I N G I N S T R U C T I O N S

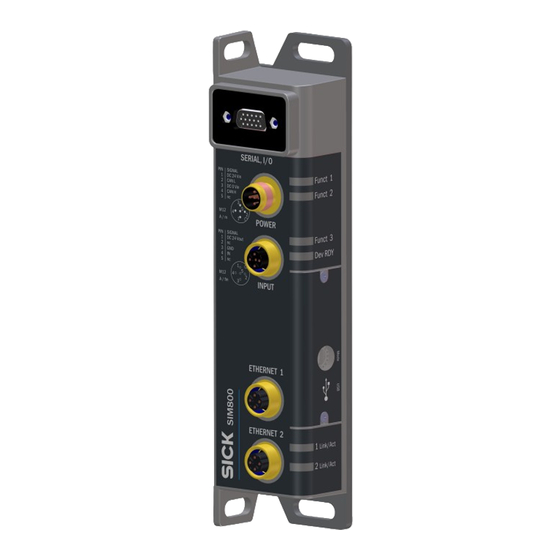

SIM800
Sensor Integration Machine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIM800 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK SIM800

Summary of Contents for SICK SIM800

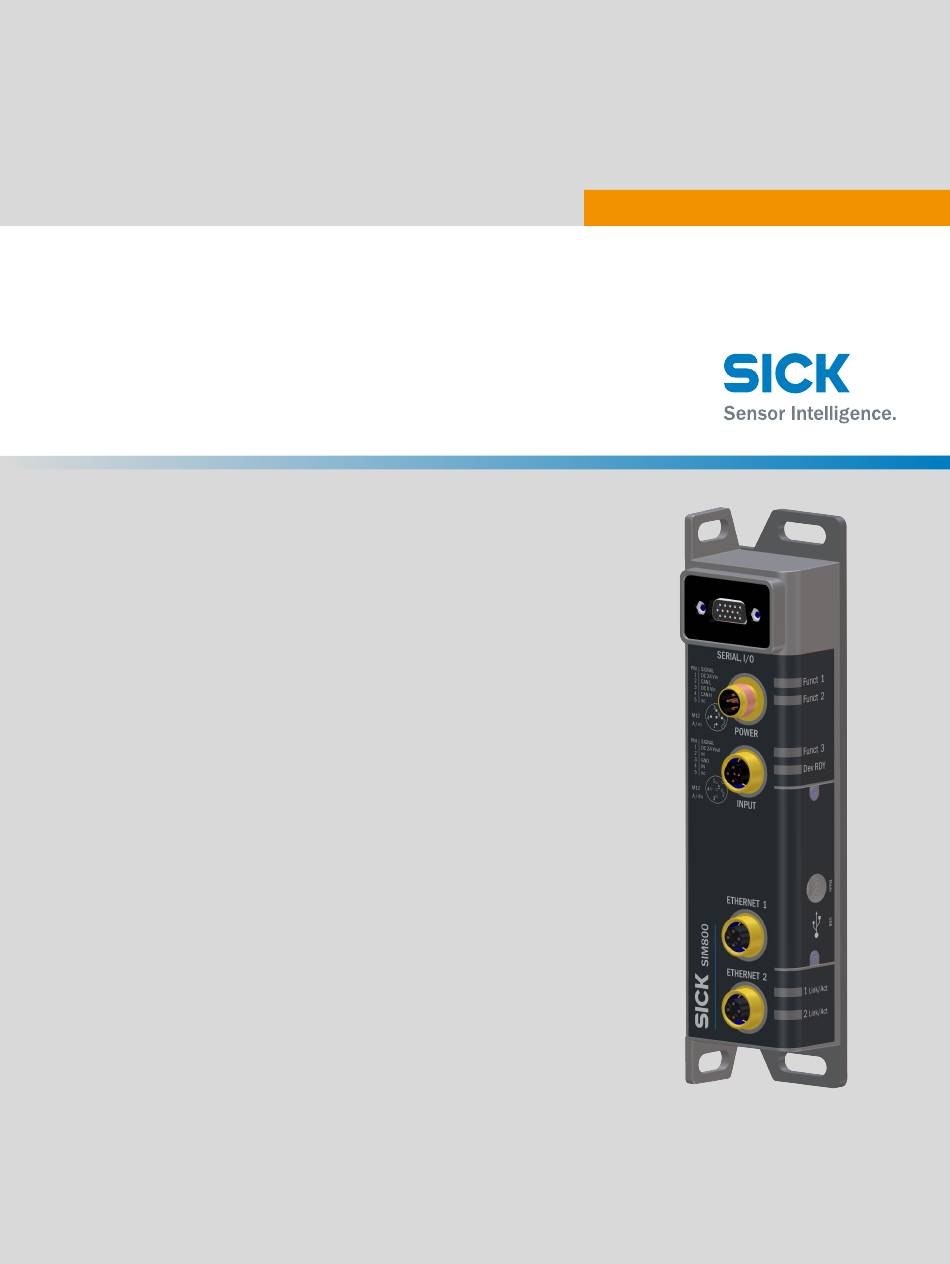

  • Page 1 O P E R A T I N G I N S T R U C T I O N S SIM800 Sensor Integration Machine...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Connecting voltage supply............... Commissioning.................. 20 Preparatory commissioning..............Operation.................... 21 Status LEDs....................8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...
  • Page 4 11.4 Ambient data..................... Annex....................26 12.1 Dimensional drawings................12.2 Licenses....................O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...

  • Page 5: About This Document

    … highlights useful tips and recommendations as well as information for efficient and trouble-free operation. 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 6: Further Information

    Certificates (e.g., declaration of conformity) • Other publications • Software • Accessories O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...

  • Page 7: Safety Information

    Any use of accessories not specifically approved by SICK AG is at your own risk. 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 8: Cybersecurity

    NOTICE Modifications and conversions to the device may result in unforeseeable dangers. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...

  • Page 9: Requirements For Skilled Persons And Operating Personnel

    Safety requirements relating to work on electrical systems must be complied with. ■ 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...
  • Page 10 The product is fitted with LEDs in risk group 0. The accessible radiation from these LEDs does not pose a danger to the eyes or skin. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK...

  • Page 11: Product Description

    PC, or tablet. The application software (app) is developed in SICK AppStudio. SICK AppSpace 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 12: Preset Ethernet Interfaces

    The individual IP addresses can be changed using the “SICK AppManager” software tool. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...

  • Page 13: Transport And Storage

    For storage periods of longer than 3 months, check the general condition of all components and packaging on a regular basis. 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 14: Mounting

    Use self-locking or lock nuts on mounting sites that are exposed to vibrations to prevent the holding plates from loosening. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK...

  • Page 15: Electrical Installation

    If customers assemble the cables: crimping tool, ferrules, soldering iron, and other installation material 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 16: Overview Of Connections

    Observe the requirements for the design of overcurrent protective devices according to EN 61010, "Technical data", page O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...
  • Page 17 INPUT connection (digital input) Figure 5: Female connector, M12, 5-pin, A-coded 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 18: Connecting Peripheral Devices

    Customer assembly of the cables is only necessary in special cases. Ensure a sufficient length of cable is provided, e.g., for strain-relief clamps. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK...
  • Page 19 Have the user connect the voltage supply. Have the user activate the voltage. 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 20: Commissioning

    The device requires a certain start-up time. The readiness is indicated by the green "Dev RDY" LED. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK...

  • Page 21: Operation

    Ethernet. Connection established with Ethernet. Data transmission via Ethernet. 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 22: Maintenance

    Recommended: At least every 6 months. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...

  • Page 23: Decommissioning

    Separate the recyclable materials by type and place them in recycling containers. ■ 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 24: Technical Data

    “INPUT” connection: 1 x digital input Details "Pin assignment", page 16 O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK Subject to change without notice...

  • Page 25: Mechanics And Electronics

    Storage temperature –35 °C ... +70 °C Permissible relative humid‐ 90%, non-condensing 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...

  • Page 26: Annex

    URL: <device ip>/license/COPYING Printed copies of the license texts are also available on request. O P E R A T I N G I N S T R U C T I O N S | SIM800 8028935//2023-09-26 | SICK...
  • Page 27 ANNEX 8028935//2023-09-26 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM800 Subject to change without notice...
