UG-631
7. The message in Figure 7 appears when the installation is
complete.

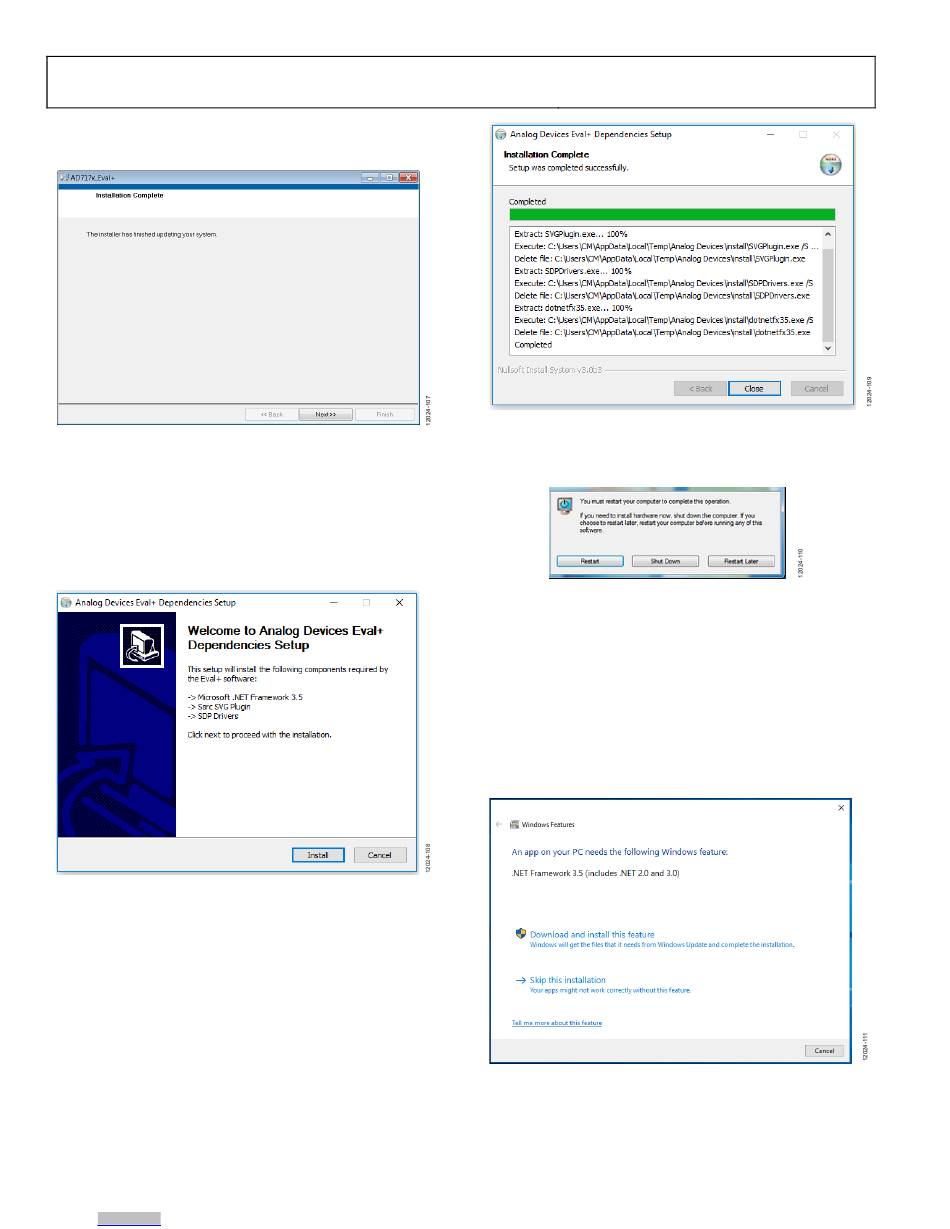

Figure 7. AD717x Eval+ Installation Complete
Installing the Eval+ Dependencies
After installation of the evaluation software is complete, a
welcome window displays to install the Eval+ Dependencies.
1. With the SDP-B board still disconnected from the USB
port of the PC, make sure all other applications are closed,
then click Install.
Figure 8. Eval+ Dependencies Setup, Beginning the Drivers Installation
2. The Ssrc SVG plug-in will install first, then the
drivers, and finally the .Net Framework.
3. If using Windows 8 or Windows 10 see the Installing the
.Net Framework v3.5 on Windows 8 and Windows 10
section.
4. To complete the drivers installation click Close. This closes
the installation setup wizard.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Figure 9. Eval+ Dependencies Setup, Completing the Driver Setup Wizard
5. Before using the evaluation board, the user must restart
the PC.
Installing the .Net Framework v3.5 on Windows 8 and
Windows 10
Windows 8 and Windows 10 have a built in installer for the .Net
Framework v3.5. In order to run this software the user will need an
internet connection and may need administrator privileges.
Complete the following steps to install the software. If unable to
install the .Net Framework contact your system administrator.
1. When the Eval+ Dependencies installer reaches the .Net
Framework, the window shown in Figure 11 will appear.
SDP-B
2. Follow the steps in the installation wizard to complete the
installation.
Rev. A | Page 8 of 34
EVAL-AD7173-8SDZ User Guide
Figure 10. Restarting the PC
Figure 11. Restarting the PC
