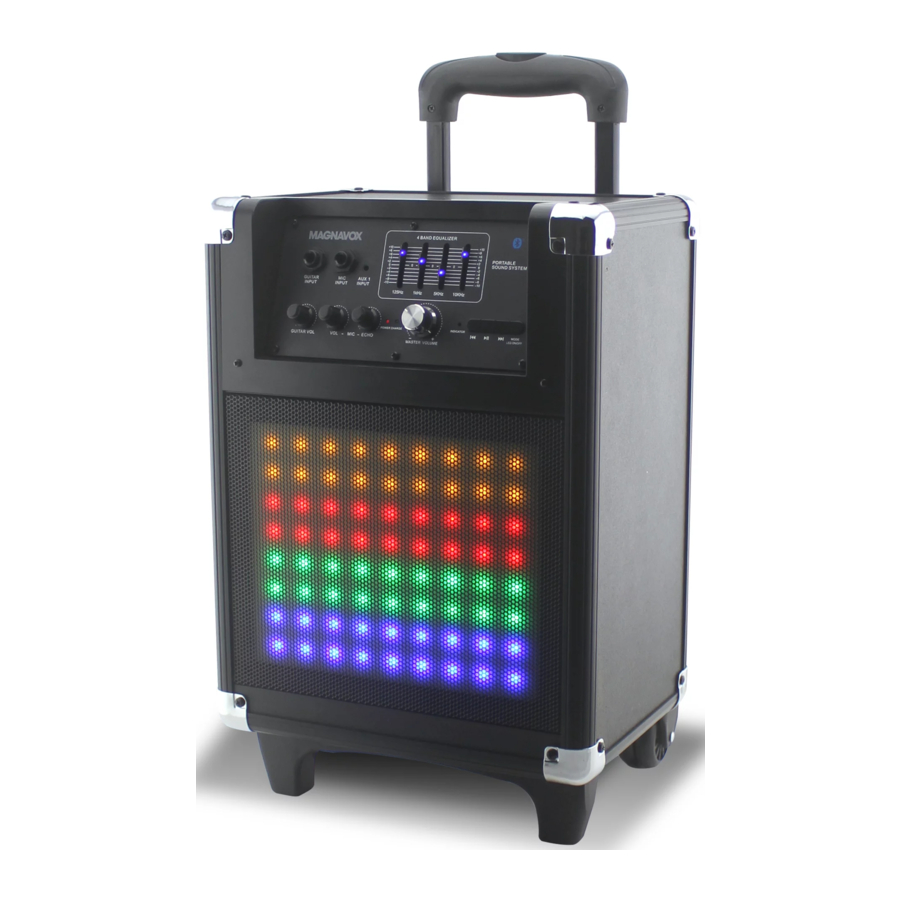

Magnavox MHT825 - Rolling Portable Speaker System with Color Changing Lights Manual

LOCATION OF CONTROLS

1. GUITAR INPUT Jack
2. MIC (Microphone ) INPUT Jack
3. AUX 1 INPUT Jack
4. 4 BAND EQUALIZER
5. GUITAR VOL (Volume) Control Knob
6. MIC VOL (Microphone Volume) Control Knob
7. MIC ECHO (Microphone Echo Effect) Control Knob
8. POWER Indicator
9. CHARGE Indicator
10. MASTER VOLUME Control Knob
11. INDICATOR
12. Button
13. Button
14. Button
15. MODE - LED ON/OFF Button
16. AUX 2 Jacks
17. Main Power Switch (POWER ON - POWER OFF - CHARGE)
18. DC IN Jack
19. Carry Handle

POWER SOURCE

The unit has a built-in Sealed Lead Acid rechargeable battery, recharge it before use or when it is drained as follows:

1. Connect the small plug from the supplied AC/DC adaptor to the DC IN Jack on the rear of unit. Connect the AC/DC adaptor to a conveniently located wall socket with AC 100-240V—; 50 or 60Hz.
2. Switch the Main Power Switch on the rear Of unit to CHARGE position, CHARGE Indicator on front panel will illuminate,
3. When finished charging, the CHARGE Indicator will turn off. Then switch the Main Power Switch on the rear of unit to POWER OFF position and/or unplug theACIDC adaptor from the unit and wall outlet.


Notes:
Your battery will last longer if you're following these simple guidelines for caring and storing.

1. Before first time use, charge it approximately 12 hours until the unit is fully charged.
2. Do not charge longer than 24 hours. When finished charge; the CHARGE Indicator will turn off, Then switch the Main Power Switch on the rear Of unit to POLIER OFF position and/or unplug the AC/DC adaptor from the unit and wall outlet. Excessive charging or running the unit until the battery fully drains will damage battery. Battery life will be extended if you keep the battery fully charged.
3. During playback, you can also charge the battery at the same time,
4. Recharge and store the unit within the temperature range of 5°C—35°C (40°F—95°F).
5. Battery life naturally shortens slowly over time.
6. The rechargeable battery incorporated in this product is not user replaceable.
7. If you will not use the unit for an extended period of time, unplug the AC/DC adaptor from AC outlet.

OPERATIONS

GENERAL OPERATION:

1. Recharge the built-in battery or connect the unit to the supplied AC/DCadaptor and wall outlet as previously instructed.
2. Switch the Main Power Switch on the rear of unit to POWER ON position to power on the unit. The POW/ER Indicator on front panel Will illuminate.
3. Press and release the MODE — LED ON/OFF Button repeatedly to switch to desired playback mode. The color of the INDICATOR on front panel will change the color with your selection (see list below):

   Playback Mode:	Color of the INDICATOR on front panel
   BT (Bluetooth)	Blue
   Radio	Green
   AUX (In) 1	Red
   AUX (In) 2	White

4. During playback:
   1. Turn the MASTER VOLUME Control Knob on front panel to adjust volume level as desired.
   2. Slide the control knobs on the 4 BAND EQUALIZER up and down to enhance or reduce specific audio frequency levels as desired.
   3. Press and hold the MODE - LED ON/OFF Button to turn off the Decorative LED Lights. Press and hold again to turn it back on.
5. When finished listening, switch the Main Power Switch to POWER OFF position to shut off the unit.

NOTE:
If the unit is connecting to ACIDC adaptor and AC power, the unit will continually to charging the built-in battery. When it is fully recharged, the CHARGE Indicator will turn off. Then un plug the AC/DC adaptor from unit and AC wall outlet.

BT MODE,
BT (Bluetooth) pairing:

First time use or re-pairing the unit to new BT Device, pair as follows:

1. Power on unit and enter to BT mode as previously instructed. The color of the INDICATOR on front panel will turn to Blue and blink.
2. Power on the external 3T Device and enter to BT searching mode, Start pairing following the on screen instructions from the external BT Device. When paired, the Blue INDICATOR will stop blinking.
3. When pairing is complete you may now play music with your external BT Device.
4. During playback:
   1. Press the Button on the unit to pause, press again to resume normal playback.
   2. Press the orButtons repeatedly to skip tracks.

Notes:

• When the external BT Device searched the unit, our model number 'MHT825" will appear on the display Of external BT Device,
• If while pairing you are asked for a code please try '0000" or "1234".

Normal operation after pairing:

1. Power on the external BT Device and enter to BT mode.
2. Power on the unit and enter to BT mode as previously instructed. The color of the INDICATOR on front panel Will turn to Blue and blink.
3. Wait a few seconds until the unit is automatically paired to the external BT Device. The Blue INDICATOR will stop blinking.
4. When pairing is complete you may now play music with your external BT Device.

FM RADIO:

1. Power on the unit as previously instructed.
2. Press the MODE — LED ON/OFF Button repeatedly until the color Of the INDICATOR on front panel turns to Green.
3. Press and hold the or Buttons to automatically search and play the previous/next available FM station. Repeat the same procedures until the desired FM station was been found and play.
4. During playback, press the WI Button to pause, press again to resume.

Antennas:
This unit has a built-in FM antenna, which provides adequate reception in most areas, If reception is weak, move the unit to a different location to improve reception.

AUX (In) 1:
Listen music from an external Audio Player such as a MP3 Player. Discman...etc.

1. Connect one end of the supplied Audio Connection Cable to the Phones/AUX Out/LlNE Out Jack on the external Audio Player.
2. Connect the other end of the cable to the AUX 1 INPUT Jack on front panel as the illustrated below:

3. Power on the unit as previously instructed.
4. Press the MODE - LED ON/OFF Button repeatedly until the color of the INDICATOR on front panel turns to Red.
5. Play the music on the connected Audio Player as usual. (Make sure the volume level of the connected Audio Player is turned to high level.)

AUX (In) 2:
Listen music from an external Video/Audio Player such as a Television; DVD Player, VCR...etc.

1. Connect one end of the RCA Connection Cable (Not included) to the Audio Out Jack on the external Video/Audio Player.
2. Connect the other end of the cable to the AUX 2 Jacks on the rear of unit as the illustrated follows:

3. Power on the unit as previously instructed.
4. Press the MODE — LED ON/OFF Button repeatedly until the color of the INDICATOR on front panel turns to White.
5. Play the video/music on the connected Video/Audio Player as usual. (Make sure the volume level of the connected Video/Audio Player is turned to high level.)

SING WITH PLAYING MUSIC:
To sing with the playing music:

1. Power on the unit and play music in any mode as instructed earlier.
2. Connect the plug from the supplied Microphone to the MIC (Microphone) INPUT Jack on the front panel.
3. Turn the MIC VOL (Microphone Volume) Control Knob to adjust the sound level of microphone.
4. Turn the MIC ECHO (Microphone Echo Effect) Control Knob to adjust the echo effect of microphone.


Note:
If feedback noise (high audio frequency noise) is sounding from the speakers, turns the MIC VOL (Microphone Volume) Knob counterclockwise to reduce the microphone volume level or move the Microphone away from the speakers.

PLAY ELECTRIC GUITAR WITH PLAYING MUSIC:
To play the Electric Guitar with the playing music:

1. Power on the unit and plays music in any modes as instructed earlier.
2. Connect the plug from Electric Guitar (Not included) to the GUITAR INPUT Jack on the front panel.
3. Turn the GUITAR VOL (Volume) Control Knob to adjust the sound level of Electric Guitar,


CLEANING:

1. TO prevent fre or shock hazard, disconnect your unit from the AC wall outlet when cleaning,
2. The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use caution when cleaning and wiping the plastic parts.
3. Mild soap and a damp cloth may be used.

CARRY HANDLE:
Press the button on the handle to release the lock then pull it out or back as the illustrated below:

TROUBLESHOOTING GUIDE

Check the follows before requesting service:

GENERAL SPECIFICATIONS

Power Source: DC5V, 2A, or built-in rechargeable DC12V, 2600mAH (31.2WH)
Sealed Lead Acid battery (Recharge by DC15V, 2A, through DC IN Jack)
Radio FM Band Coverage:. 87.5-108MHz
BT Effective Range: Up to 32 Feet in open area
BT Version:... 3.0
Audio Power: 20W (RMS)
Impedance of Speakers: 2 x 3 ohms, 15W

ACCESSORIES

1 x Owner's Manual
1 xAudio Connection Cable with 3.5mm Stereo Mini Plugs
1 xAC/DC adaptor (Input: AC 100-240V-, 50/60Hz, 1.5A; Output: DC15V, 2A, )
1 x Microphone

SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
