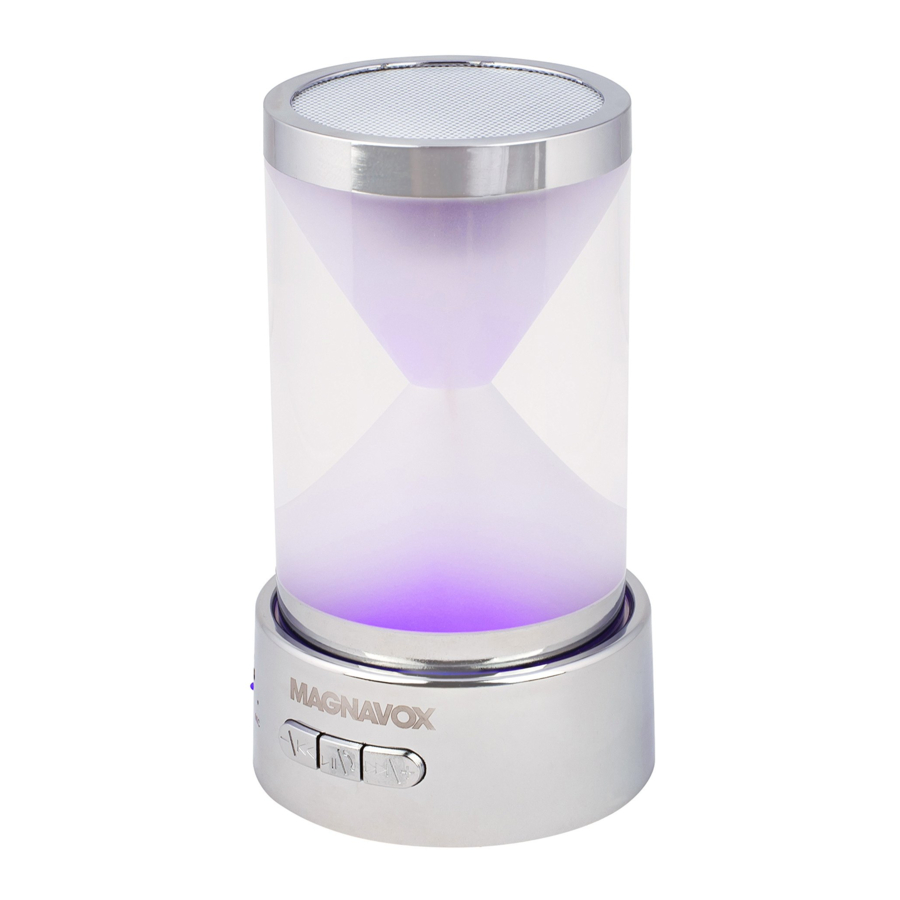

Magnavox MMA3645 - PORTABLE SPEAKER with Color Changing Lights Manual

LOCATION OF CONTROLS

1. Power ON/OFF Switch
2. AUX (in) Jack
3. DC 5V (in) Jack (USB Port, for recharge only)
4. LED Indicators
5. MIC (Built-in Microphone)
6. \ Button
7. \Button
8. \+ Button
9. Decorative Lights
10. Speaker

REMOTE CONTROL

1. Brightness Control Buttons
2. OFF Button
3. ON Button
4. Color Setting Buttons
5. Blinking Mode Setting Buttons
6. Button
7. Button
8. + Button
9. - Button
10. Button
11. (Mute) Button

POWER SOURCE

Main Unit:

The unit has a built in Li-ion rechargeable battery, recharge it before use or when it is drained as follows:

1. Connect the Micro USB Plug from the supplied USB Connection Cable to the DC 5V (in) Jack (Micro USB Port) on the unit.
2. Connect the full sized USB Plug from the supplied USB Connection Cable to the USB Port on Computer or USB Charger (Not included). Charging will automatically start. During charging, the Red LED Indicator on unit will illuminate. When finished, it will turn off. During charging, you can also play and listen music at the same time.


Notes:
Your battery will last longer if you're following these simple guidelines for charging and storing.

1. Before first time use, charge it approximately 4 hours until the unit is fully charged.
2. Recharge and store the unit within the temperature range of 5°C~35°C (40°F~95°F).
3. Do not charge longer than 24 hours. Excessive charging or running the unit until battery fully drains will damage battery. Battery life will be extended if you keep the battery fully charged.
4. Battery life naturally shortens slowly over time.
5. The rechargeable battery incorporated in this product is not user replaceable.

Remote Control:

• First time use:
  Remove and discard the insulation film as shown in the figure below:

• Replacing the button cell when it is consumed:
  1. Push and slide out the battery holder as shown in the figure to the right:
  2. Replace the button cell with a new CR2032 button cell as the polarity markings on the rear of the Remote Control.
  3. Close the battery holder.


BATTERY PRECAUTIONS:

Follow these Battery Precaution when using a battery in this device:

1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer's instructions.)
6. Do not dispose of battery in fire. Battery may explodes or leak.
7. Clean the battery contacts and also those of the device prior to battery installation.
8.
   This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, ! it can cause severe internal burn in just 2 hours and can lead to death.
   Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
   If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

EFFECTIVE DISTANCE OF REMOTE CONTROL

• When there is an obstacle between the unit and the transmitter, the transmitter may not operate.
• When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the REMOTE SENSOR of the unit, the remote operation may be unstable.


OPERATION

BT (Bluetooth) pairing:

First time use or re-pairing the unit to a new BT Device, pair as follows:

1. Power on the unit by sliding the Power ON/OFF Switch to ON position. The unit will enter to BT (Bluetooth) mode automatically. (The Blue LED Indicator will illuminate and blink.)
2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions from the external BT Device. After paired, the unit will sound a prompt tone and the Blue LED Indicator will stop blinking.
3. If pairing is complete you may now play music and answer calls with your external BT Device.
4. During playback:
   • Press the \Button on the unit or press the Button on the Remote Control to pause, press again to resume normal playback.
   • Press the (Mute) Buttons on the Remote Control to mute the sound, press again to turn the sound back.
   • Press and holding the -\ or \+ Buttons on the unit or press the +/- Buttons on the Remote Control to adjust volume level as desired.
   • Press the -\ or \+ Buttons on the unit or the / Buttons on the Remote Control repeatedly to skip tracks.I
5. If the unit is paired to a Cell Phone and a call is incoming during an active music session, press the / Button on the unit or the Button on the Remote Control to pause the music playback then speak to the built-in microphone to answer the call. When your call is complete, press the button again to disconnect or end the call and resume to music playback.
6. When finished listening, sliding the Power ON/OFF Switch to OFF position to shut off the unit.

Notes:

• When the external BT Device searched the unit, our model number "MMA3645" will appear on the display of external BT Device.
• If while pairing you are asked for a code, please try "0000" or "1234".

Normal operation after pairing:

1. Power on the unit by sliding the Power ON/OFF Switch to ON position. The unit will enter to BT (Bluetooth) mode automatically. (The Blue Indicator will illuminate and blink.)
2. Wait a few seconds until the unit is automatically paired to the external BT Device. (The Blue Indicator will stop blinking).
3. After pairing is complete you may now play music and answer calls with your external BT Device.

AUX (in):

To listen from an external Audio Player such as a MP3 Player, Discman...etc.

1. Connect one end of the supplied Audio Connection Cable to the AUX Out/Line Out/Phone Jack on the external Audio Player.
2. In power on mode, connect the other end of the cable to the AUX (in) Jack as the figure on the right. The unit will turn to AUX (in) mode automatically.
3. Play the music on the connected Player as usual. (Make sure the volume level of the connected Audio Player is turned to high level.)
4. During playback:
   • Press the\ Button on the unit or the Button on the Remote Control to mute the sound, press again to turn the sound back.
   • Press and holding the -\ or \+Buttons on the unit or press the -/+Buttons on the Remote Control to adjust volume level as desired.
5. When no longer in use, sliding the Power ON/OFF Switch to OFF position to shut off the unit.

Note:
If the Audio Connection Cable was plugged into the AUX (in) Jack, the Bluetooth function will auto cut. Unplug the Cable from the AUX (in) Jack before use Bluetooth function.

Decorative Lights:

When Power on the unit by sliding the Power ON/OFF Switch to ON position, the decorative lights will illuminate and blink. Then:

• Turn ON/OFF:
  Press the OFF Button on the Remote Control to turn it off. Press the ON Button to turn it on.
• Bright level settings:
  Press the or Button on the Remote Control repeatedly to adjust the brightness level of it as desired.
• Color settings:
  Press either one of Color Setting Buttons (Total 10 color selection buttons) on the Remote Control to set or reset the color of it as desired.
• Blinking mode settings:
  Press either one of Blinking Mode Selection Buttons (Total 4 modes selection buttons) on the Remote Control to set or reset the blinking mode of it as desired.

TROUBLESHOOTING

Check the following before requesting service:

SYMPTOM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Can't power on	Built in battery drained	Recharge the built-in battery.
Remote Control not function	Button cell drained	Replace the button cell by a new CR 2025 or CR 2032 button cell.
	The distance between the Remote Control and unit too far	Operation the Remote Control with in 6 feet
No sound or sound weak	Volume of the unit was set to minimum position	Increase the volume by press and holding the \ + Button on the unit or press the + Button on the Remote Control
	Volume level of paired/connected device is in low level	Rise the volume level of the paired/connected device
Sound distortion	Volume level too high	Reduce the volume level by press and holding the -\ Button on the unit or press the - Button on the Remote Control
	Volume level of the connected/paired device too high	Reduce the volume level of the connected/paired device
BT not functioning	The external BT Device had NOT paired to the unit	Pair the external BT Device to the unit.
	The external BT device too far from the unit	Place the external BT device close to the unit

SPECIFICATIONS

Power source: Built-in DC 3.7V, 1000mAh (3.7WH) rechargeable Li-ion Battery, Recharge by DC 5V, through DC 5V (in) Jack (Micro USB Port)
Impedance of the speakers: 3W; 4ohm
Audio power: 1.5W RMS
BT Version: 4.0
BT Operation Distance: ≥32 Feet in opera area

PACKAGE INCLUDES:

1 x User's Manual
1 x Remote Control (Uses
1 x CR2032 button cell, included)
1 x USB Connection Cable (For charging only)
1 x Audio Connection Cables with 3.5mm Plugs

MAINTENANCE

1. Do not clean the Acrylic column with organic solvents such as ethyl alcohol, ether or thinner and so on.
2. Do not use harsh or abrasive cleaning agents or solvents.
3. Do not attempt to disassemble your product.
4. Do not paint your product.
5. Do not drop, throw or try to bend your product.
6. Do not expose your product to open flames.

SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
