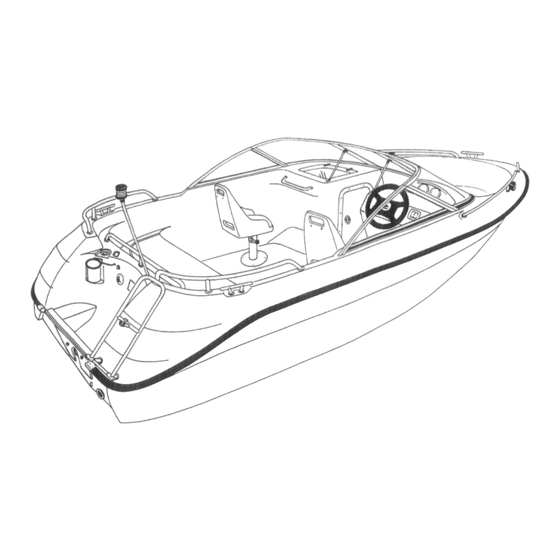

YAMARIN 53 Bow Rider
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for YAMARIN 53 Bow Rider

Summary of Contents for YAMARIN 53 Bow Rider

  • Page 1 YAMARIN 53 Bow Rider 1 (36) YAMARIN 53 Bow Rider OWNER’S MANUAL...
  • Page 2 2 (36) FOREWORD Dear Owner of the Finnish Yamarin-boat! We thank you for choosing Yamarin and wish you many pleasant experiences while on the water. The intention of this manual is to help you to operate your craft with safety and pleasure. It contains details of the craft, the equipment supplied or fitted, its systems and information on its operation, care and maintenance.
  • Page 3 Note that in some countries it is a legal requirement to wear a buoyancy aid that complies with their national regulations at all times We wish you lots of fun and hope you have a good time on board your YAMARIN! KoneKesko Marine P.O.B.

  • Page 4: Table Of Contents

    YAMARIN 53 Bow Rider 4 (36) Sisällysluettelo 1 General 1.1 Declaration of confirmity 2 Definitions 3 Warranty 4 Before use 4.1 Registering 4.2 Insurances 4.3 Training 5 Characteristics and use of your boat 5.1 General 5.2 Basic data Specifications 5.3 Maximum number of persons 5.4 Loading...
  • Page 5 YAMARIN 53 Bow Rider 5 (36) 6.1 Washing and waxing the boat 6.2 Care instructions for seat cushions 6.3 Care instructions for canopy 6.4 Care instructions for windshield 6.5 Care instructions for remote control 6.6 Care instructions for steering system 6.7 Care instructions for electrical components...
  • Page 6 YAMARIN 53 Bow Rider 6 (36) BEFORE YOU START Familiarise yourself with this owner’s manual. Always check at least the following items before leaving: Weather state and forecast − − − − Take the wind, waves and visibility into account. Are the design category, size and...

  • Page 7: General

    YAMARIN 53 Bow Rider 7 (36) General The Owner’s manual will help you to familiarise with the properties and features of your new boat, as well as with its care and maintenance. Separate manuals of the installed equipments are attached and are referred to in many sections. You can of course complement this owner’s manual by adding the manuals of the devices which are installed afterwards.
  • Page 8 YAMARIN 53 Bow Rider 8 (36) DECLARATION OF CONFIRMITY Recreational Craft • Directive 94/25/EC Manufacturer: See CIN-code and manufacturer list Module used (check): A - Aa - B+C X B+D - B+F - G - H - ----------------------------------------------------------------------------------------------------------------- THE DECLARATION IS PLACED ON THE MARKET BY...
  • Page 9 YAMARIN 53 Bow Rider 9 (36) Peter Krusberg Name: The person empowered to sign Product Manager 2005 / 01 / 27 Date (yr/mo/day): Type of craft: Deck: 01 sailboat 01 decked 02 inflatable 02 partly decked 03 other: motorboat 03 open:...
  • Page 10 YAMARIN 53 Bow Rider 10 (36) Essential requirements ISO-standards used Other normative document used General requirements (2) Hull Identification Number – CIN (2.1) ISO 100087 Builder’s Plate (2.2) ISO 11592 RSG Gguidelines Protection from falling overboard and means of reboarding …...
  • Page 11 YAMARIN 53 Bow Rider 11 (36) MANUFACTURER LIST 1.Fenix Marin Oy Lujatie 2 14500 Iittala Suomi Finland CIN: FIFNX 2. Seliö Boats Oy Yrittäjäntie 4 09220 SAMMATTI , Suomi Finland CIN: FISEL 3.Saint Boats Ky Wattitie 3 21530 Paimio , Suomi Finland CIN: FISAB &...

  • Page 12: Definitions

    YAMARIN 53 Bow Rider 12 (36) Definitions The warnings and cautions in this manual are defined as following: DANGER! Denotes an extreme intrinsic hazard exists which would result in high probability of death or irreparable injury if proper precautions are not taken.

  • Page 13: Training

    YAMARIN 53 Bow Rider 13 (36) Training It is advisable to practice boat handling. There is plenty of boating literature available. Navigation courses are arranged by local yacht clubs or authorities. Each country has also different regulations. Find out what are the needs for training in Your own area.
  • Page 14 YAMARIN 53 Bow Rider 14 (36) Note: The significant wave height is the mean height of the highest one third of the waves, which approximately corresponds to the wave height estimated by an experienced observer. Some waves will be double this height.
  • Page 15 YAMARIN 53 Bow Rider 15 (36) Specifications Boat model YAMARIN 53 Bow Rider Design category Length overall 5,19m Maximum width 2,20m Weight without 600kg engine, fluids and equipment Maximum load / 525kg/ 7 +fuel 70kg +equipment 10kg persons Maximum load in...

  • Page 16: Maximum Number Of Persons

    (e.g. hobby equipment) xx kg Example calculation: Yamarin YAMARIN 53 Bow Rider, maximum recommended load = 535kg + fuel 70kg. There is 4 adults, 2 childs, 20kg portable water tank, 10kg basic equipment and 15kg fishing equipment on board 4x75kg + 2x37,5kg + 20kg + 10kg + 15kg = 420kg Load on board 420kg <...

  • Page 17: Risk Of Flooding And Stability

    Risk of flooding and stability 5.6.1 Openings in the hull and deck Yamarin boats feature a draining plug at the lower end of transom. Draining the boat on land is done by opening the plug. NOTE! Remember to fasten the draining plug before launching the boat.

  • Page 18: Stability And Buoyancy

    YAMARIN is equipped with flotation material, which shoudn’t be reduced, by means of them the craft floats even when swamped. In maximum loading condition boat floats even when swamped Risk of fire or explosion 5.7.1...

  • Page 19: Fire Protection

    YAMARIN 53 Bow Rider 19 (36) 5.7.2 Fire protection When using YAMARIN with engine over 25kW (34hp), it shall be equipped with minimum class 8A68B effect portable fire extinguisher (rating and location) shown in your boat models figure. YAMARIN 53 Bow Rider.

  • Page 20: Operation

    5.9.1 Controls You will quickly learn how to control your YAMARIN -boat, but the ever changing weather conditions., like wind and waves, will always present new challenges for the driver. The boat has a cable steering system. The remote control combines the functions of throttle, forward and reverse gears, and trim angle adjustment.

  • Page 21: Adjusting The Trim Angle

    YAMARIN 53 Bow Rider 21 (36) 5.9.4 Adjusting the trim angle The main rules in adjusting the trim angle are the following: when raising the boat to plane, keep the "bow down" position when the boat is planing and the sea is not too rough, raise the bow until the boat begins to porpoise or the propeller looses its bite.

  • Page 22: Approaching The Dock

    Neither does the boat have a similar steering response in reverse as in forward gear. WARNING! YAMARIN 53 Bow Rider is a fast boat. It needs time to stop from planing speed. Slow down the speed in good time in advance before beaching or...

  • Page 23: Use Of Canopy

    YAMARIN 53 Bow Rider 23 (36) docking. Learn to estimate the distance the boat needs before it stops. Remember that steering control is poor, if there is no traction. WARNING! Do not try to stop the boat with your hand, and do not put your arms or legs...

  • Page 24: Respect For Environment

    YAMARIN 53 Bow Rider 24 (36) 5.10.3 Respect for environment Archipelagos and lakes are unique and their conservation is a matter of honour for boaters, too. Therefore you should avoid - fuel and oil leakages - emptying garbage and waste into the water or on the shore...

  • Page 25: Towing

    5.10.6 Trailer transport The Yamarin boats are easy boats to trailer. However, make sure that the trailer suits your boat, in other words, that it has sufficient number of supports to decrease point loads, that its capacity is sufficient for the boat, engine and accessories etc. The maximum gross trailer load is given in your car's registration certificate.

  • Page 26: Docking

    YAMARIN 53 Bow Rider 26 (36) each side so that the boat cannot sway sideways. The approximate location of the supports is shown in your boat model figure. Clean the supports from sand and dirt so that they do not scratch the bottom of the hull. Check once more that the trailer hitch is properly locked! The hoisting place should be sheltered and the slipway long enough.
  • Page 27 YAMARIN 53 Bow Rider 27 (36) keel supports should carry most of the boat's weight. Point loads should be avoided. The length of the keel supports and the dimensions of side paws should be at least as shown in following figure.

  • Page 28: Maintenance Of Boat And Equipment

    YAMARIN 53 Bow Rider 28 (36) Maintenance of boat and equipment Keep your boat clean and tidy. It will add to your comfort and safety, as well as the resale value of the boat. Familiarise yourself with the service procedures shown in the Owner’s manual of the engine (see attachment).

  • Page 29: Care Instructions For Canopy

    YAMARIN 53 Bow Rider 29 (36) Useful tip: Any mould spots on boat seats with imitation leather finish disappear when you wipe them clean with a lemon juice concentrate seasoned with a pinch of table salt. This gives the seats a fresh scent.

  • Page 30: Minor Superficial Repairs

    YAMARIN 53 Bow Rider 30 (36) Minor superficial repairs Minor damages in the gelcoat surface of the hull or deck can be repaired by yourself. However, a neat, unnoticeable repair needs skill: 1. Tape off the area around the repair.

  • Page 31: Measures Before Winter Storage

    If frost is likely, drain the sea water cooling system of the engine according to its Owner’s manual. Lift your YAMARIN out from water in good time before ice formation. Your craft is not dimensioned against sailing or storage in ice.

  • Page 32: Measures Before Launching

    YAMARIN 53 Bow Rider 32 (36) Measures before launching Repair or let to be repaired possible dents in gelcoat surface according to Chapter 6.8. At sea areas an antifouling paint should be used. Fouling of the bottom and especially the propeller increases the fuel consumption remarkably.

  • Page 33: Lay-Out

    YAMARIN 53 Bow Rider 33 (36) Lay-out General arrangement YAMARIN 53 Bow Rider YAMARIN 53 Bow Rider Seats for the maximum recommended number of persons and working decks WARNING! Be careful when you open hatches in the boat so you don't injure your fingers or toes.

  • Page 34: Fuel System

    34 (36) Fuel system YAMARIN 53 Bow Rider is equipped with a built-in-fuel tank, located under the open space floor. The tank is equipped with a service hatch, which provides an access for cleaning. A fuel filter, which also serves as a water separator, has been mounted in the fuel line. The filter must be changed at least once a year.

  • Page 35: Electrical System

    When a boat uses an electrically started engine of 15 kW (20 hp) or more, it normally needs an electrical system using a battery of its own. The electrical system installed as standard equipment in the YAMARIN 53 Bow Rider boat includes the following main components:...

  • Page 36: Wiring Diagram

    INST RUMENT LIGHT S GREY FUEL T ANK "G" FUEL + INP UT T O GAUGES T ANK YAMARIN 53 Bow Ri d er O R G Revisions PINT A S i gn. : POHJA 1 6 . 6 .2005...
