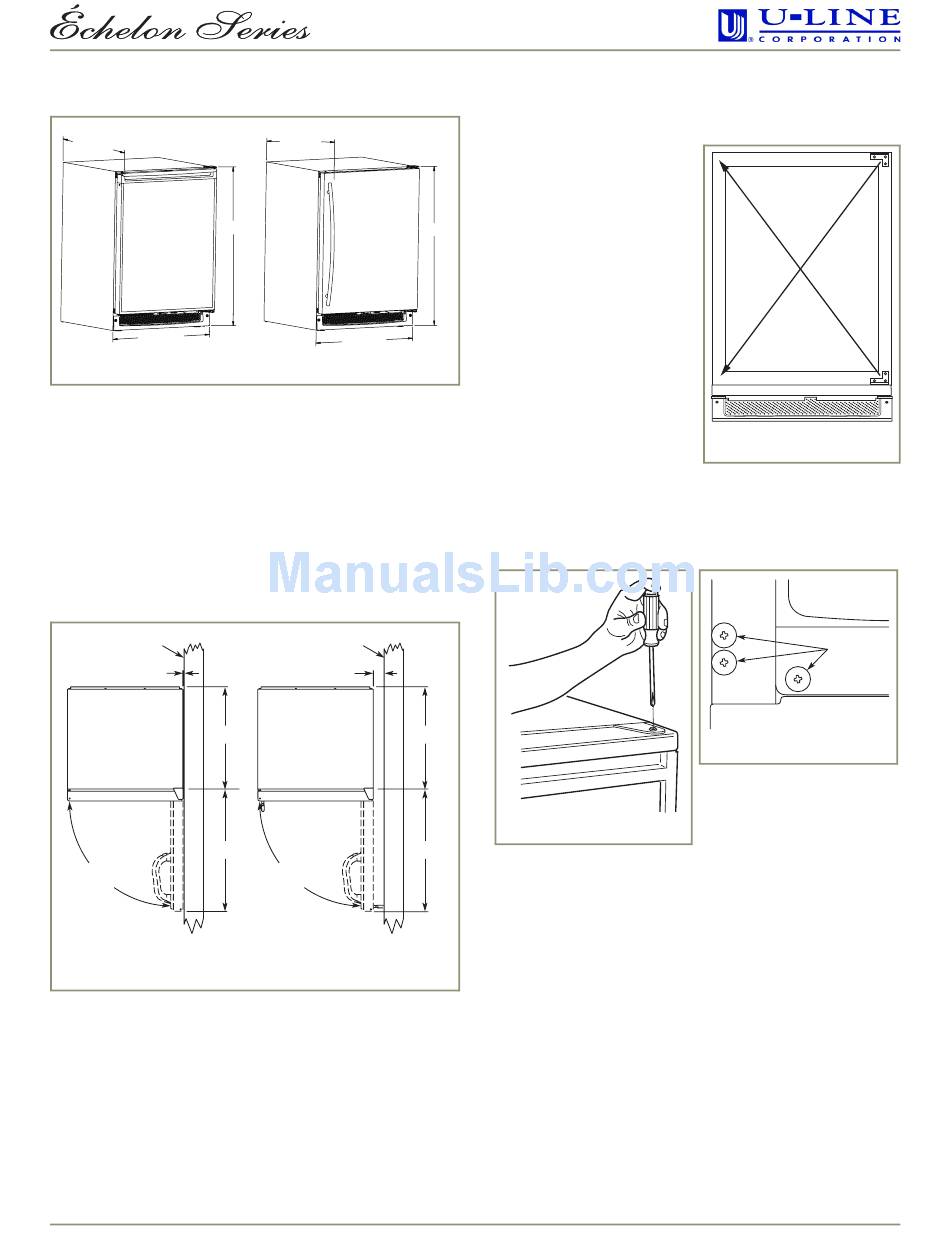

Product Dimensions

23-1/4"
Including
Handle
34-1/8"
23-15/16"
Black and White
Figure 2
Please note that the unit has adjustable feet that can add
one additional inch to height during leveling or to match
adjacent cabinets (see Figure 33 on Page 13).

Door Swing/Clearances Information

Black and White units have a zero clearance for the door
to open 90° (see Figure 3). Stainless Steel models require
a minimum of 2-1/8" door clearance to accommodate the
handle if the unit is installed next to a wall or similar type
of structure.
Wall
1/4" Min.
21"
25-1/2"
90°
Door Swing
Black and White
Figure 3
08/2006
2175R Refrigerator and 2175RF Refrigerator/Freezer
25-3/8"
Including
Handle
34-1/8"
23-15/16"
Stainless Steel
Wall
2-1/8" Min.
21"
25-1/2"
90°
Door Swing
Stainless Steel

Reversing the Door

(Black and White Units Only)
All U-Line units (except
Stainless Steel models) may
be left- or right-hand
opening. The door opening is
easily reversed by moving the
hinge hardware to the
opposite side. The top hinge
hardware will be used on the
bottom of the other side and
the bottom hinge hardware
will be used on the top of the
other side (see Figure 4).
To reverse the door:
1. Remove top hinge screw
pin from door (Phillips
screwdriver) (see Figure
5). Remove door by tilting
forward and lifting off bottom hinge pin.
2. Remove plastic screw plugs (3 each, top and bottom)
from new hinge location. Do not discard (see Figure 6).
Figure 5
ULIN_0133_A
3. Remove top hinge (3 screws), reinstall hinge screw pin,
and remount on opposite side BOTTOM (see Figure 7).
5
ULIN_0015_A
Figure 4
Screw Plugs
Figure 6
