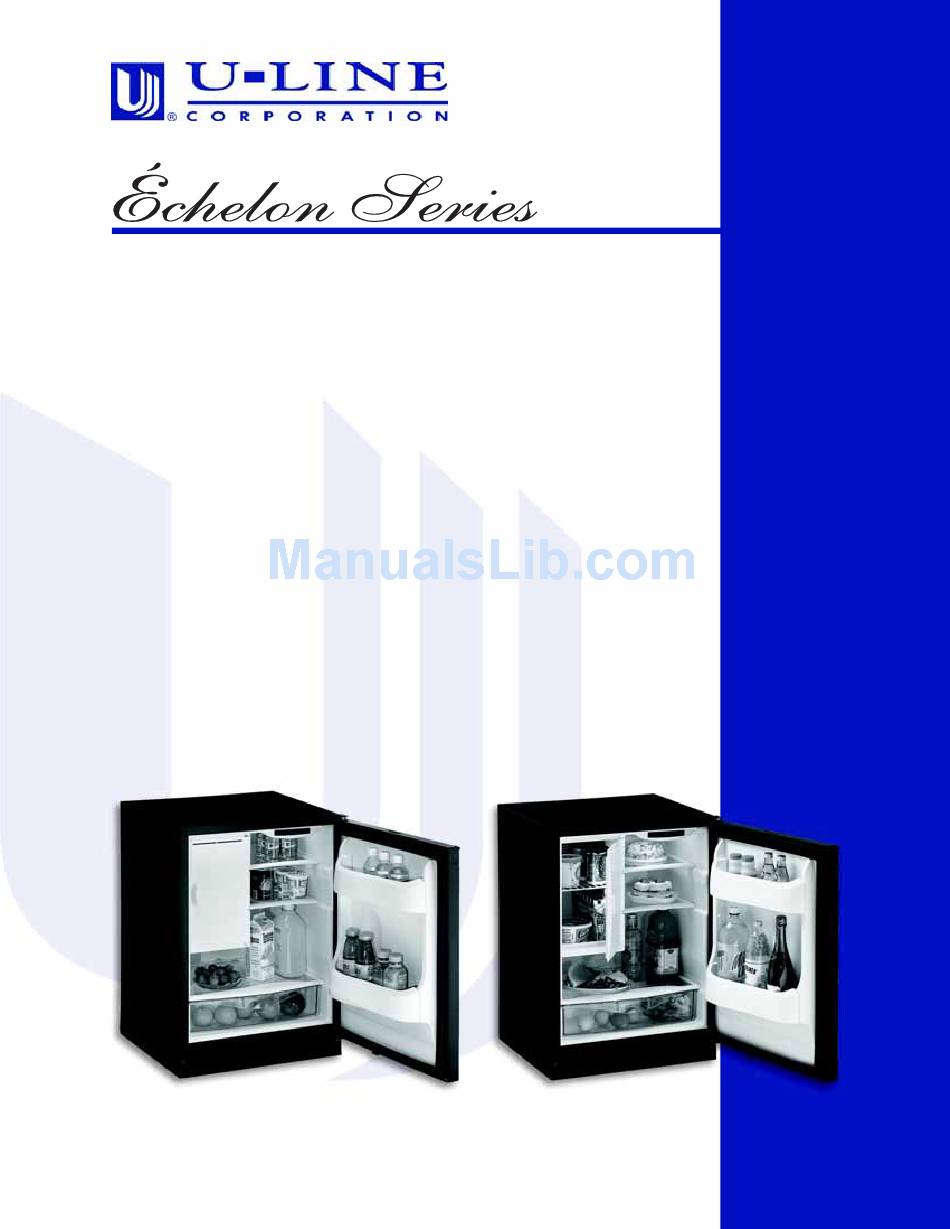

  • Page 1 Use and Care Guide ® Combo Ice Maker/Refrigerator Model: CO2175FF Refrigerator/Freezer Model: 2175RF CO2175FF 2175RF...
  • Page 2: Introduction

    If your product registration is not on file and a request for warranty coverage is received, the date of sale to the U-Line Selling Dealer or Distributor will be established as the first date of warranty coverage for your product.
  • Page 3: Table Of Contents

    Please Record Your Model Information ...2 Table of Contents ...3 Safety Precautions ...5 Safety Alert Definitions ...5 General Precautions ...5 Product Features ...6 Échelon Model 2175RF Refrigerator/Freezer, Model CO2175FF Ice Maker/ Refrigerator ...6 Operation ...7 Initial Startup ...7 Temperature Control ...7 Interior Lighting ...8 Electronic Control Panel ...8...
  • Page 4 This page intentionally left blank CO2175FF, 2175RF...
  • Page 5: Safety Precautions

    An INSTALLATION GUIDE for your unit, providing complete installation information is available from U-Line Corporation directly, and must be consulted before any installation is begun. U-Line contact information appears on the rear cover of this guide.
  • Page 6: Product Features

    -5 and +5°F, and consistent temperature control in the refrigerator. • Model 2175RF features a large vertically designed freezer compartment that provides more storage space and easier accessibility to the products within the freezer compartment. A removable white vinyl coated...
  • Page 7: Operation

    A grille, located in the base of the unit, must not be blocked at any time, or your unit will not perform as expected. Initial Startup All U-Line units are shipped with controls that are preset. No initial adjustments are required. IMPORTANT IMPORTANT •...
  • Page 8: Interior Lighting

    Temperature Display Selection U-Line products supplied for 110 VAC operation have temperatures displayed in a default Fahrenheit (°F) configuration (Figure 5, 3). Models supplied for 220 VAC operation have temperatures displayed in a default Celsius (°C) configuration.
  • Page 9: Ice Maker

    • Automatic Ice Maker: You will hear ice as it drops from the mold into the ice bin/tray. • Water Valve: After an ice maker completes a cycle, a water valve will make a buzzing sound and running water may be briefly heard. CO2175FF, 2175RF...
  • Page 10: Food Storage

    If the drawer is pulled out too far, it will come out of the cabinet, and may be damaged by falling. Outdoor, Marine and RV Usage Some U-Line models are designed to operate in outdoor, marine and RV environments. For best performance, keep the unit out of direct sunlight.
  • Page 11: Product Disposal

    For best results use Claire Stainless Steel Polish and Cleaner, which can be purchased from U-Line Corporation (P/N 173348). Comparable products are acceptable. Frequent cleaning will remove surface contamination that could lead to rust.
  • Page 12: Maintenance

    Maintenance Proper maintenance of your U-Line product will ensure efficiency, top performance and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or other special considerations. Defrosting...
  • Page 13 Use only genuine U-Line replacement parts. U-Line ice maker parts are not the same as standard FSP Whirlpool parts. Using non U-Line parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the warranty.
  • Page 14: Door Alignment Check And Adjustment

    Be sure that bosses on closers (Figure 18, 1) align with holes in the door and bottom cabinet hinge plates. Mount door and install top hinge pivot pin. CO2175FF, 2175RF ULIN_0201_A Figure 17 ULIN_0004_A...
  • Page 15: Door Reversal

    3. Remove top hinge (three screws) (Figure 20, 2) and reinstall hinge screw pin (Figure 20, 1). ULIN_0015_A 4. Install the removed top hinge mount on opposite side BOTTOM (Figure 22). ULIN_0003_A CO2175FF, 2175RF ULIN_0002_A Figure 21 ULIN_0005_A Figure 22 ULIN_0004_A...
  • Page 16: Door Shelf Removal/Insertion

    To install the door shelf: 1. Holding shelf in center, align notches (Figure 25, 1) in shelf with bosses (Figure 25, 2) in door. 2. Tilt shelf at a 15°-20° angle and slide onto bosses at the desired location. CO2175FF, 2175RF ULIN_0039_A Figure 25...
  • Page 17: Glass Shelf Removal/Installation

    3. Replace the bulb only with a genuine U-Line P/N 31317 replacement. 4. Replace the lens by first inserting the tab side back into the housing at a slight angle.
  • Page 18: Service

    7 Service Before Calling for Service If your U-Line product appears to be malfunctioning, read through the OPERATION section of this guide to ensure that the function of all controls are clearly understood. If the malfunction persists, the TROUBLESHOOTING GUIDE...
  • Page 19: Troubleshooting Guide

    24 hours for temperature to stabilize. Carefully bend tubing away from cabinet and components. Soft sounds from the fan and water/dropping sounds from the ice maker will be heard. Set control to warmer setting (See OPERATION). Properly check temperature (See OPERATION). CO2175FF, 2175RF...
  • Page 20 Set cube size smaller (See MAINTENANCE; ICE MAKER; ICE CUBE THICKNESS ADJUSTMENT). Clean condenser (See MAINTENANCE; CONDENSER CLEANING). Set cube size smaller (See MAINTENANCE; ICE MAKER; ICE CUBE THICKNESS ADJUSTMENT). Push ice bucket into place. Be sure freezer door is closed correctly. CO2175FF, 2175RF...
  • Page 21: Electronic Control Quick Guide

    Release when °F flashes. Display (and cabinet light) not operable in Blackout Mode. Touch Touch Touch IMPORTANT CO2175FF, 2175RF Display Comment °F flashes after first touch, set-point saved after 5 seconds of inactivity and °F stops flashing.* For Wine Coolers, see Use and Care Manual.
  • Page 22 This page intentionally left blank CO2175FF, 2175RF...
  • Page 23: U-Line Corporation Limited Warranty

    During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Lines option, repair any product or replace any part of a product that breaches this warranty;...
  • Page 24 When you need replacement parts, always request genuine U-Line replacements be used. Visit www.U-Line.com to locate a parts distributor in your area. U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in undercounter ice makers, Combo ice maker/refrigerators, Wine Captain ®...
