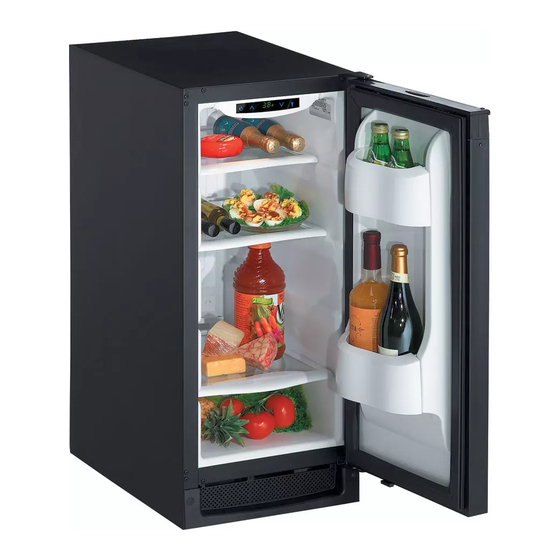

U-Line 2115R Use And Care Manual

Echelon series
Hide thumbs Also See for 2115R:

Advertisement

Use and Care Guide

Refrigerator Models:
2115R, 2175R
2115R
2175R

Advertisement

Table of Contents
loading

Summary of Contents for U-Line 2115R

  • Page 1: Use And Care Guide

    Use and Care Guide Refrigerator Models: 2115R, 2175R 2115R 2175R...
  • Page 2: Introduction

    If your product registration is not on file and a request for warranty coverage is received, the date of sale to the U-Line Selling Dealer or Distributor will be established as the first date of warranty coverage for your product.
  • Page 3: Table Of Contents

    Please Record Your Model Information ...2 Table of Contents ...3 Safety Precautions ...5 Safety Alert Definitions ...5 General Precautions ...5 Product Features ...6 Échelon Refrigerator Models 2115R, 2175R ...6 Operation ...7 Initial Startup ...7 Temperature Control ...7 Interior Lighting ...8 Electronic Control Panel ...8 Normal Operating Sounds ...9...
  • Page 4 This page intentionally left blank 2115R, 2175R...
  • Page 5: Safety Precautions

    An INSTALLATION GUIDE for your unit, providing complete installation information is available from U-Line Corporation directly, and must be consulted before any installation is begun. U-Line contact information appears on the rear cover of this guide.
  • Page 6: Product Features

    Échelon Refrigerator Models 2115R, 2175R Exclusive Features of Échelon • Model 2115R is a 3.3 cu ft (93 L) capacity unit; Model 2175R is a 5.7 cu ft (161 L) capacity unit. • Both models qualify for U.S. Government ENERGY STAR program.
  • Page 7: Operation

    A grille, located in the base of the unit, must not be blocked at any time, or your unit will not perform as expected. Initial Startup All U-Line units are shipped with controls that are preset. No initial adjustments are required. IMPORTANT IMPORTANT U-Line recommends the unit be allowed to run overnight prior to loading with product.
  • Page 8: Interior Lighting

    Temperature Display Selection U-Line products supplied for 110 VAC operation have temperatures displayed in a default Fahrenheit (°F) configuration (Figure 5, 3). Models supplied for 220 VAC operation have temperatures displayed in a default Celsius (°C) configuration.
  • Page 9: Normal Operating Sounds

    If the drawer is pulled out too far, it will come out of the cabinet, and may be damaged by falling. Outdoor, Marine and RV Usage Some U-Line models are designed to operate in outdoor, marine and RV environments. For best performance, keep the unit out of direct sunlight.
  • Page 10: Cleaning And Maintenance

    Maintenance Proper maintenance of your U-Line product will ensure efficiency, top performance and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or other special considerations.
  • Page 11 2. If the unit is not level, adjust the feet on the corners of the unit as necessary (Figure 11). 3. Check the levelness after each adjustment and repeat the previous steps until the unit is level. 2115R, 2175R CAUTION ULIN_0193_A Figure 10...
  • Page 12 Be sure that bosses on closers (Figure 15, 1) align with holes in the door and bottom cabinet hinge plates. Mount door and install top hinge pivot pin. 2115R, 2175R ULIN_0201_A Figure 14 ULIN_0004_A...
  • Page 13 3. Remove top hinge (three screws) (Figure 17, 2) and reinstall hinge screw pin (Figure 17, 1). ULIN_0015_A 4. Install the removed top hinge mount on opposite side BOTTOM (Figure 19). ULIN_0003_A 2115R, 2175R ULIN_0002_A Figure 18 ULIN_0005_A Figure 19 ULIN_0004_A...
  • Page 14 To install the door shelf: 1. Holding shelf in center, align notches (Figure 22, 1) in shelf with bosses (Figure 22, 2) in door. 2. Tilt shelf at a 15°-20° angle and slide onto bosses at the desired location. 2115R, 2175R ULIN_0039_A Figure 22...
  • Page 15 3. Replace the bulb only with a genuine U-Line P/N 31317 replacement. 4. Replace the lens by first inserting the tab side back into the housing at a slight angle.
  • Page 16: Service

    7 Service Before Calling for Service If your U-Line product appears to be malfunctioning, read through the OPERATION section of this guide to ensure that the function of all controls are clearly understood. If the malfunction persists, the TROUBLESHOOTING GUIDE...
  • Page 17: Troubleshooting Guide

    Defrost unit manually (See MAINTENANCE; DEFROSTING). Adjust door (See MAINTENANCE; DOOR ALIGNMENT CHECK AND ADJUSTMENT and DOOR REVERSAL). Reposition or remove item(s). Carefully bend tubing away from cabinet and components. Set control to warmer setting (See OPERATION). Properly check temperature (See OPERATION). 2115R, 2175R...
  • Page 18: Electronic Control Quick Guide

    Release when °F flashes. Display (and cabinet light) not operable in Blackout Mode. Touch Touch Touch IMPORTANT 2115R, 2175R Display Comment °F flashes after first touch, set-point saved after 5 seconds of inactivity and °F stops flashing.* For Wine Coolers, see Use and Care Manual.
  • Page 19: U-Line Corporation Limited Warranty

    During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Lines option, repair any product or replace any part of a product that breaches this warranty;...
  • Page 20 When you need replacement parts, always request genuine U-Line replacements be used. Visit www.U-Line.com to locate a parts distributor in your area. U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in ® undercounter ice makers, Combo ice maker/refrigerators, Wine Captain refrigerators, refrigerated drawers and refrigerator/freezers.
