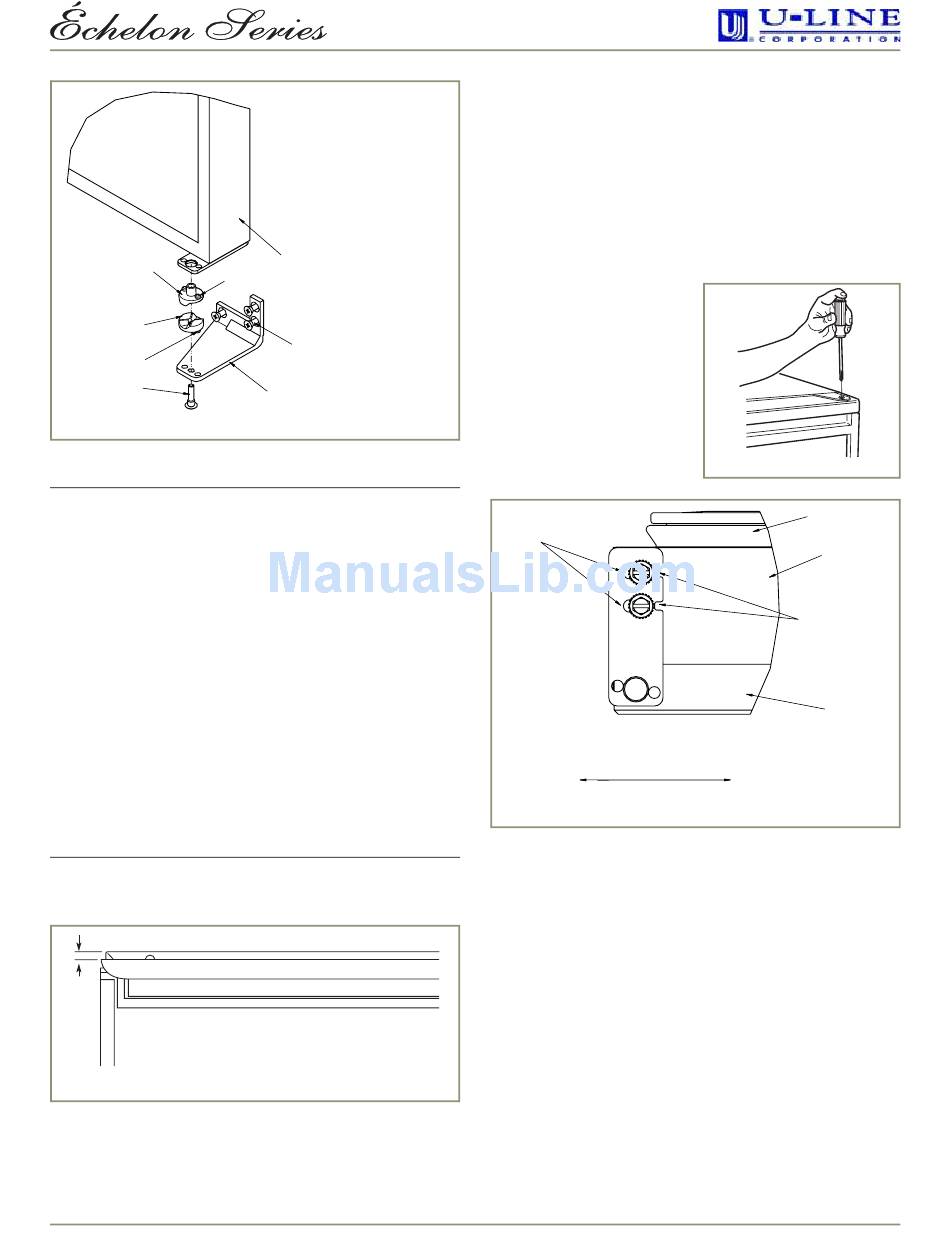

Adjusting Door Alignment; Checking Door Alignment - U-Line Echelon 2115R Installation Instructions Manual

Door Closure Top
Boss
Door Closure
Bottom
Boss
Pivot Post
Figure 12
IMPORTANT
Pivot posts must be cleaned. Closers must also be clean
and greased to ensure proper operation.
5. Place the modified door onto the pivot post.
6. Position door and install the pivot post into the top
hinge (using the Phillips screwdriver).
7. Adjust door as needed for proper closure.
8. Check to see that light goes off when the door closes.
9. Reinstall the door shelves by lining up the bosses and
first pushing straight in, then down at a 45° angle.

Checking Door Alignment

The unit's door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment or during door panel installation.
IMPORTANT
Properly aligned, the door should be 1/8" below the top of
the unit's cabinet, NOT flush with the top (see Figure 13).
1/8"
Figure 13
1. Compare the top edge of the door to the top edge of
the cabinet.
08/2006
Existing Door
#8-32 x 1/2" Flat Head Screw
Three Places
Wood Panel Bottom Hinge Plate
(5/8" Longer than Existing Bottom Hinge Plate)
2. If the door edge is 1/8" below and parallel to the top of
the cabinet, the door is aligned. If it is not, note
whether the side opposite the hinge needs to be moved
UP or DOWN, and use the following procedure.
Note: If door is adjusted correctly, but panel is not square
with the adjacent cabinets, slight adjustments can be
made by drilling the holes in the vinyl coated steel panel
slightly oversized. See Figure 6 on Page 3.

Adjusting Door Alignment

1. Remove top hinge screw
pin (Phillips screwdriver,
see Figure 14). Remove
door by tilting forward
and lifting off bottom
hinge pin.
2. With door upside-down,
loosen but do not remove
the two screws on the
door's bottom hinge plate.
Slotted
Mounting
Holes
Raise
Outside
Door Edge
Figure 15
3. See Figure 15. If the top far edge of the door needs to
move UP, move the hinge plate toward the outside of
the door and retighten screws. If the top far edge of the
door needs to move DOWN, move the hinge plate
toward the inside of the door and retighten screws.
4. Mount the door to recheck alignment and repeat Steps
2 and 3 if further adjustment is necessary.
5. When top edge of door is parallel to top edge of
cabinet, remove the door and ensure the two screws
are secure.
6. Remove the door closers from the bottom hinge, clean
thoroughly and lubricate the mating surfaces with
petroleum jelly.
5
Figure 14
Door Gasket
Existing Door
Notches
(Must Face Toward
Center of Door)
Wood Overlay
Lower
Outside
Door Edge
www.U-LineService.com
