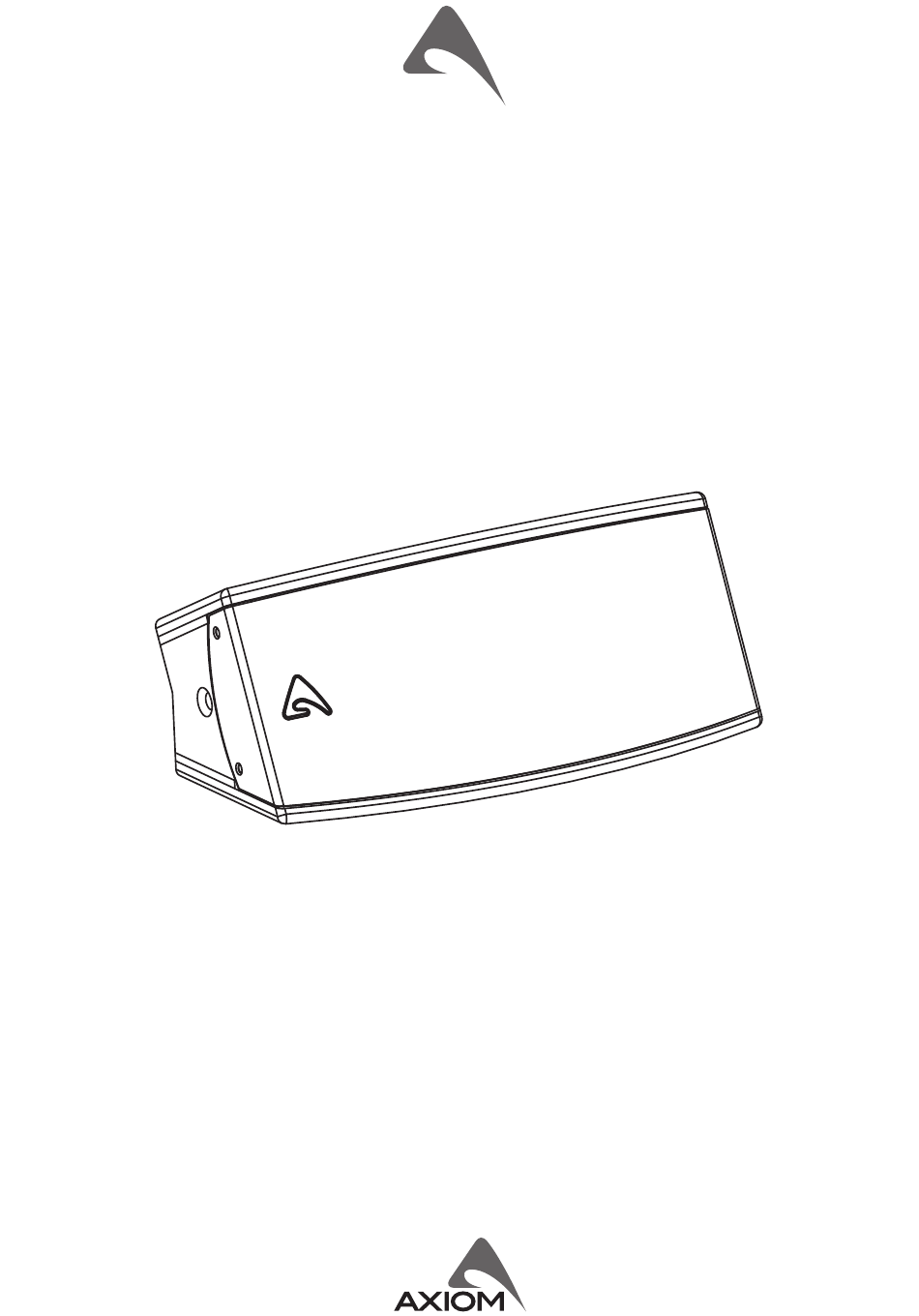

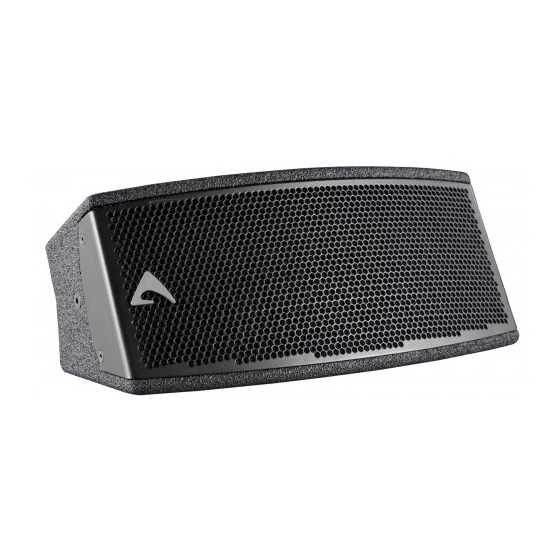

- Page 1 ED23PMKII passive near-field point source loudspeaker USER MANUAL revision 2023-09-15...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents
Two Neutrik® speakON™ NL4 connectors provide input and link connections. To extend the system’s low frequency response the ED25P can be complemented by subwoofers from the Axiom SW series such as the SW210P or SW18P. -
Page 5: Mechanical Drawing
MECHANICAL DRAWING M5 Flying Point M8 Flying Point M8 Flying Point 32 cm 19,8 cm 12.6" 7.8" OPTIONAL ACCESSORIES KPTED23 Wall or Truss Mounting “C” bracket. KPTLTP Wall Mounting bracket. PLH295 Ø 48-51mm truss tube aluminium half coupler PLH295BK with M10 x 50 built-in bolt and fastening nut. Also available with black finish. -
Page 6: Input
(pass thru) LINK Power output in parallel with the INPUT socket, for connecting the unit to another speaker. The number of ED23PMKII cabinets that can be connected in parallel depends on the amplifier load capacity. Note: there is no silk-screen printing on the speaker, the illustration above is only representative of the internal connection, both speakon connectors on the sides of the speaker can be used as INPUT or LINK. -
Page 7: Kpted23 Wall Or Truss Mounting
KPTED23 WALL or TRUSS MOUNTING Using the “C” shape bracket the ED23PMKII loudspeaker can be installed to walls or mounted to trusses in combination combining with a PLH295. It allows to aim the speaker in one direction, vertical or horizontal. - Page 8 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
