Axiom ED60P User Manual

KEY FEATURES
• Near-field and mid-field sound reinforcement applications
• Asymmetric HF coverage pattern
• Rotatable HF Horn for optimal horizontal coverage
• Water-repellent treatment of LF loudspeaker
INTRODUCTION
ED point source systems are designed for indoor and outdoor sound reinforcement
applications ranging from clubs, bars and restaurants to theatres, live music venues, houses
of worship and theme environments. Passive ED series loudspeaker systems are easy to set
up and simple to operate.

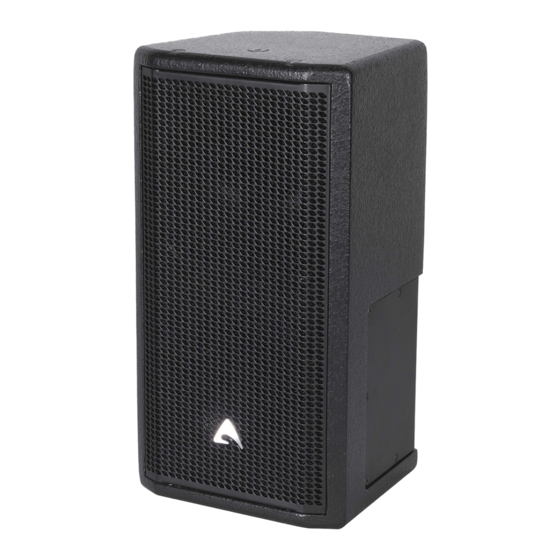

The ED60P consists of an 6.5" LF drive unit and a 1" HF compression driver loaded by an
asymmetric HF horn in a compact enclosure, designed for many multi-purpose sound

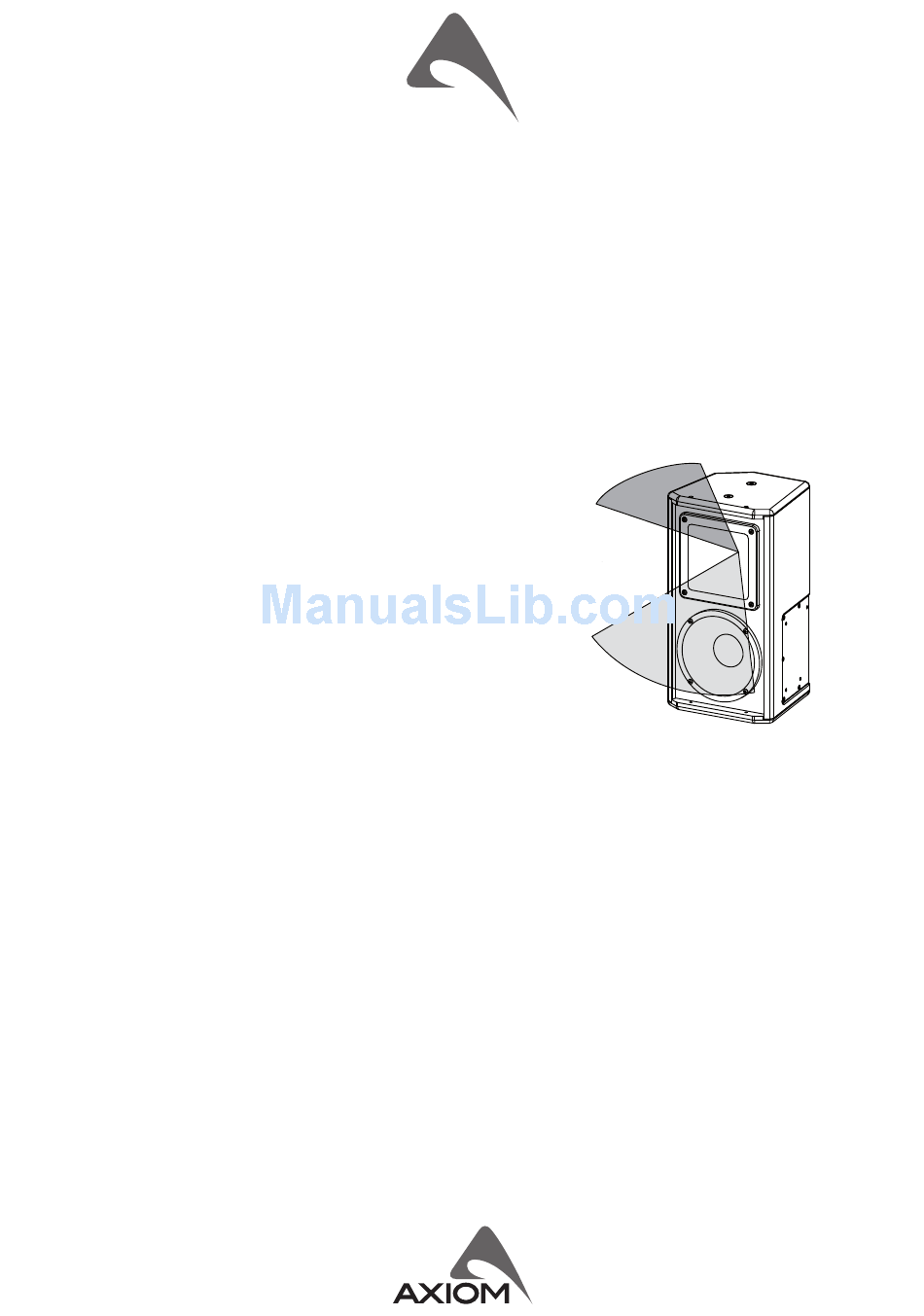

reinforcement activities. The asymmetric HF coverage pattern, varying from 120° horizontal
in the lower part of the horn for more effective near field coverage, and narrowing to 70°
horizontal at the top of the horn for more focused coverage in the far field. The result is
more accurate coverage of a typical auditorium than is possible with a fixed horizontal
coverage device. The HF horn is also rotatable through 90° by simply removing four screws
and realigning the horn, so that coverage can also be optimised for stage monitor use. This
rotatable horn feature also makes it possible to maintain the ideal coverage pattern when the
cabinet is installed in a horizontal (landscape) orientation. Its asymmetric dispersion pattern
provides optimal coverage of typical rectangular venues, with wider dispersion at the front
and narrower dispersion at the rear.
This versatile loudspeaker can also be used as a low profile stage monitor with its 35°
tapered side, and in this situation the HF horn can be rotated to maintain the best coverage
pattern for performers both near to and further away from the monitor. ED60P cabinet is
an unobtrusive and compact format designed for a multitude of near field applications such as theatre under-balcony fill, stage front fill, delay
speaker, bar and restaurant audio, and discreet stage monitor. A pole mount socket make this a very versatile loudspeaker in both portable and
permanently installed applications.
TECHNICAL SPECIFICATION
Acoustical
System type
Low frequency transducer
High frequency transducer
Frequency response
Sensitivity (2.83 V @ 1m, 2 Pi)
Horizontal Coverage Angle
Vertical Coverage Angle
Maximum Peak SPL @ 1m
Electrical
Nominal Impedance
Minimum Impedance
Power Handling (AES)
Power Handling (prgm)
revision 2017-07-18

USER MANUAL

ED60P
passive point source loudspeaker
Point Source Loudspeaker
with asymetric HF Horn
6.5" (165 mm), 1.5" (38 mm) voice coil, 16Ω
1" compression driver, 1" (25 mm) aluminium
voice coil, PEPT diaphragm, 8Ω
85 Hz – 18 kHz (-6dB)
92 dBSPL
70 to 120° (-6 dB)
60° (-6 dB)
114 dB
16Ω
13.2 Ω @ 200Hz
100 W
200 W
• High quality, low distortion drivers
• Audiophile-grade passive crossover network
• 35° monitor taper
• Various rigging hardware
LF Power Compression
Connectors
Connector Type
Input Wiring
Mechanical
Width
Height
Depth
Taper angle
Construction
Paint
Suspension system
Suspension
Net Weight
h70°
h120°
@ -10 dB Power (20 W) = 0.7 dB
@ -3 dB Power (100 W) = 1.8 dB
@ 0 dB Power (200 W) = 3.5 dB
Neutrik® Speakon® NL4 x 2
Pin 1+/1- (Pin 2+/2- pass thru)
210 mm (8.3")
390 mm (15.3")
190 mm (7.5")
35°
15 mm phenolic birch plywood
Black textured paint (or White)
Rigging points
Optional brackets
5 Kg (11 lbs)
