Summary of Contents for Axiom ED150P

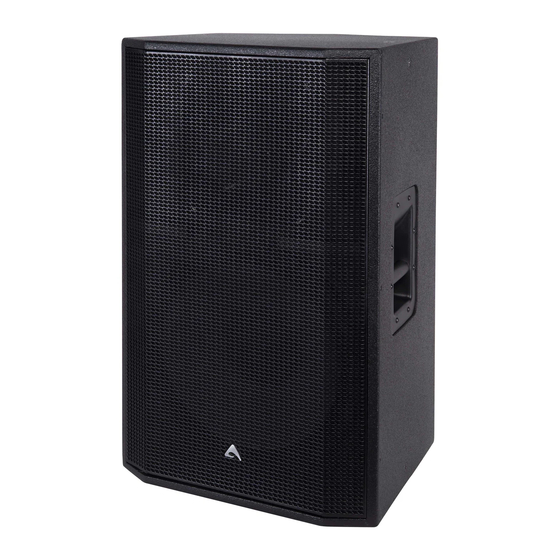

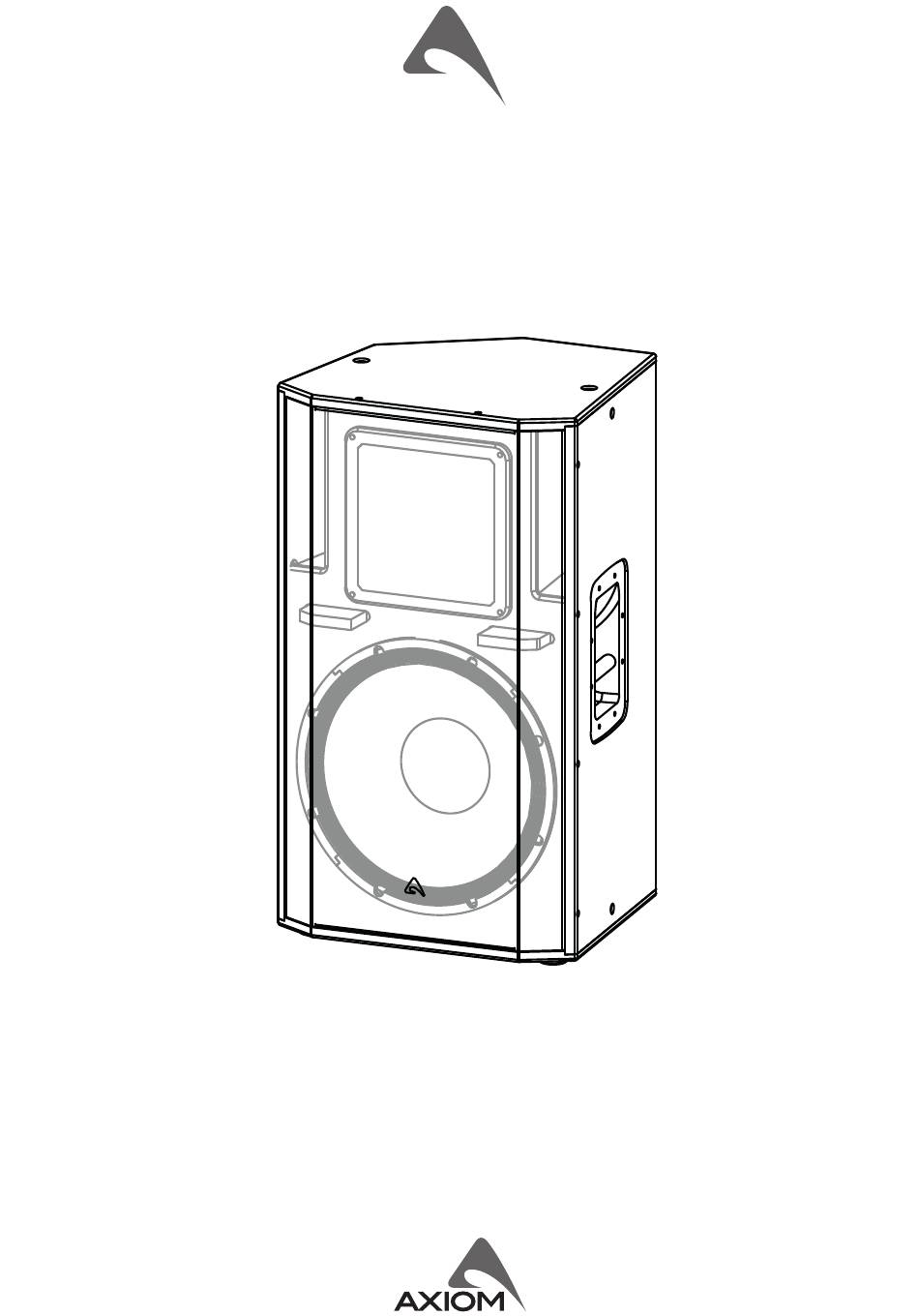

- Page 1 ED150P passive point source loudspeaker USER MANUAL revision 2023-08-31...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents
Passive ED series loudspeaker systems are easy to set up and simple to operate. The ED150P consists of an 15” LF drive unit and a 1.4” HF compression driver loaded by an asymmetric HF horn in a compact enclosure, designed for many multi-purpose sound h60°... -
Page 5: Mechanical Drawing
SPARE PARTS NL4MP Neutrik Speakon® panel socket 98DRI2065 1.4’’ - 2.4” VC compression driver - 8 ohm 91CR0073 ED150P Crossover PCBA 98MBN2065 titanium diaphragm for 1.4” driver 98NEOS15SW8 15’’ woofer - 3” VC - 8 ohm... -
Page 6: Input
INPUT Power input for the external amplifier. The ED150P includes a passive crossover for filtering the signal, it includes also an internal protection that limit for excessive power on the HF section and if the signal persists for a long time period it excludes the HF section. The connections are the following:... -
Page 7: Kpted150B Wall Or Truss Mounting
KPTED150B WALL or TRUSS MOUNTING Using the “C” shape bracket the ED150P loudspeaker can be installed to walls or mounted to trusses in combination combining with two PLH300. It allows to aim the speaker in one direction (vertical or horizontal) in 21 steps (0°, ±5°, ±10°, ±15°, ±25°, ±30°, ±40°, ±45°, ±55°, ±70°, ±85°). - Page 8 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
