Axiom ED120A User Manual

KEY FEATURES

• Near-field and mid-field sound reinforcement applications
• Asymmetric HF coverage pattern
• Rotatable HF Horn for optimal horizontal coverage
• Water-repellent treatment of LF loudspeaker

INTRODUCTION

ED point source systems are designed for indoor and outdoor sound reinforcement applications
ranging from clubs, bars and restaurants to theatres, live music venues, houses of worship and theme
environments. ED120A is a powered loudspeaker system able to deliver consistently repeatable
performance, due to the PROEL CORE digital signal processing and to the integrated Class D amplifier
module.

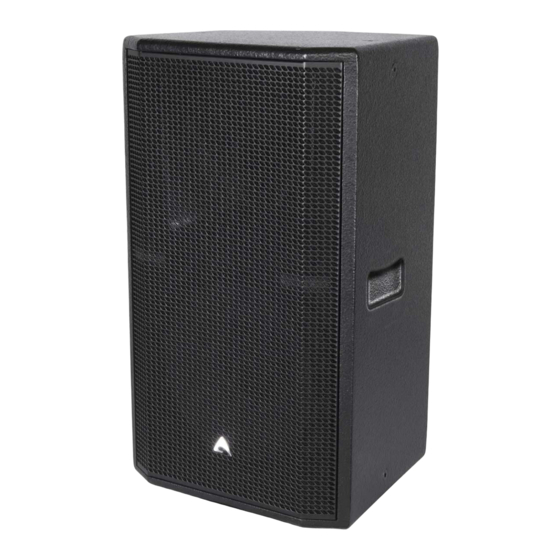

The ED120A consists of an 12" LF drive unit and a 1.4" HF compression driver loaded by an asymmetric
HF horn in a compact enclosure, designed for many multi-purpose sound reinforcement activities. The

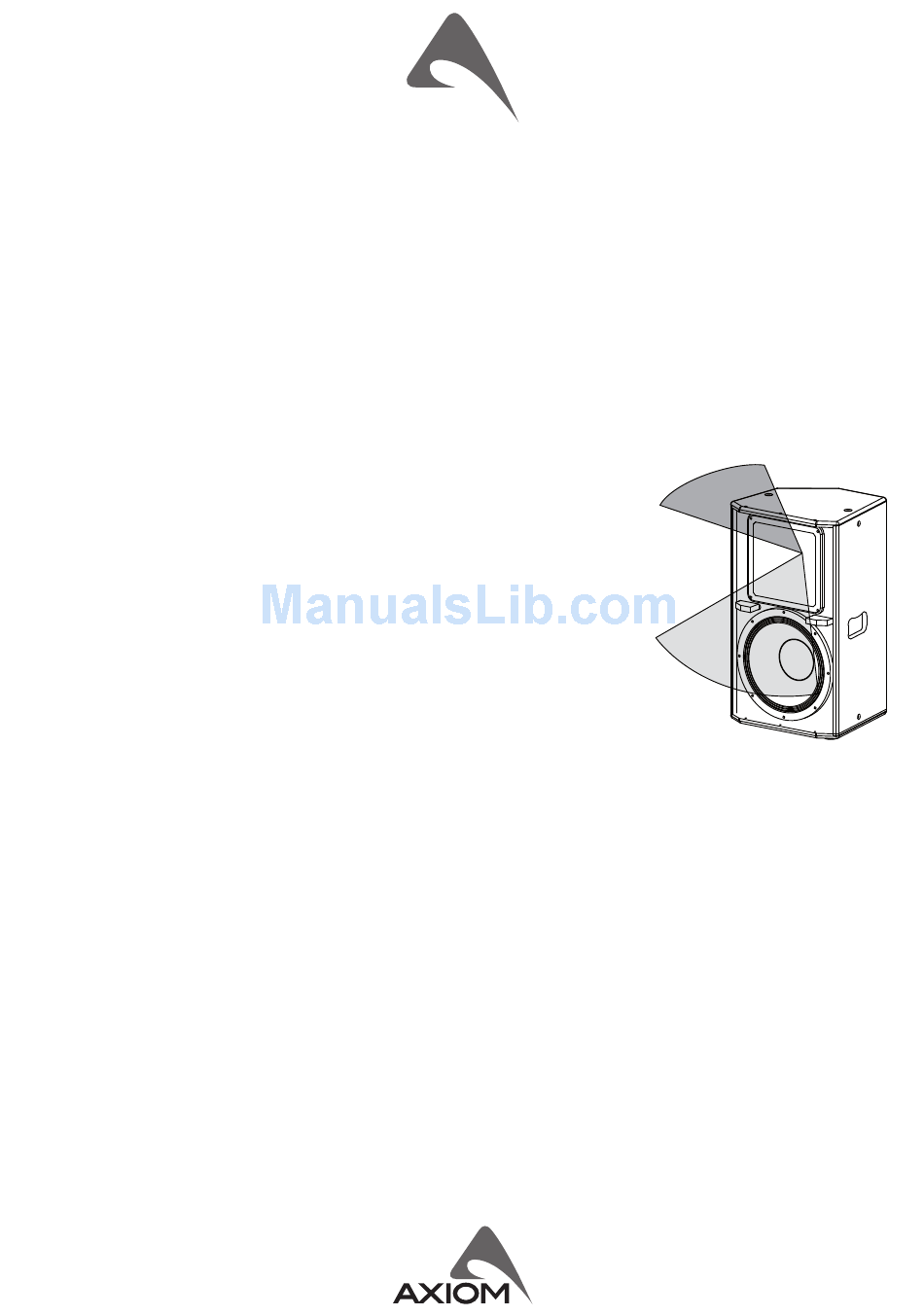

asymmetric HF coverage pattern, varying from 100° horizontal in the lower part of the horn for more
effective near field coverage, and narrowing to 60° horizontal at the top of the horn for more focused
coverage in the far field. The result is more accurate coverage of a typical auditorium than is possible
with a fixed horizontal coverage device. The HF horn is also rotatable through 90° by simply removing
four screws and realigning the horn, so that coverage can also be optimised for stage monitor use. This
rotatable horn feature also makes it possible to maintain the ideal coverage pattern when the cabinet
is installed in a horizontal (landscape) orientation. Its asymmetric dispersion pattern provides optimal
coverage of typical rectangular venues, with wider dispersion at the front and narrower dispersion
at the rear.
This versatile loudspeaker can also be used as a low profile stage monitor with its 35° tapered side, and
in this situation the HF horn can be rotated to maintain the best coverage pattern for performers both
near to and further away from the monitor. ED120A cabinet is an unobtrusive and compact format
designed for a multitude of near field applications such as theatre under-balcony fill, stage front fill, delay speaker, bar and restaurant audio,
and discreet stage monitor. A pole mount socket make this a very versatile loudspeaker in both portable and permanently installed applications.

TECHNICAL SPECIFICATION

Acoustical
System type
Low frequency transducer
High frequency transducer
Frequency response
Horizontal Coverage Angle
Vertical Coverage Angle
Maximum Peak SPL @ 1m
Electrical
Input Impedance
Input Sensitivity
Signal Processing
Direct access Controls
* Nominal consumption is measured with pink noise with a crest factor of 12
dB, this can be considered a standard music program.
revision 2017-07-18

USER MANUAL

ED120A
passive point source loudspeaker
Point Source Loudspeaker
with asymetric HF Horn
12" (300 mm), 3" (75 mm) ISV aluminium
voice coil, 4Ω
1.4" (35.5 mm) compression driver, 2.4"
(60 mm) aluminium voice coil, Titanium
diaphragm, 8Ω
65 Hz – 17 kHz (-6dB Processed)
60 to 100° (-6 dB)
60° (-6 dB)
128 dB
20 kΩ balanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit floating
point SHARC DSP, 24 bit AD/DA converters
4 Presets: Standard, Long Throw, Down Fill-
Single Box, User.
Network Termination, GND Link
• High quality, low distortion drivers
• PROEL CORE DSP and integrated Class D amplifier module
• 35° monitor taper
• Various rigging hardware
Remote Controls
Network protocol
Amplifier Type
Output Power
Mains Voltage Range (Vac)
Mains Connector
Consumption*
IN / OUT Connectors
IN / OUT Network Connectors
Mechanical
Width
Height
Depth
Taper angle
Construction
Paint
Suspension system
Suspension
Net Weight
h60°
h100°
PRONET control software
CANBUS
Class D amplifier with SMPS
900W + 300W
230 V~ ±15% or 115 V~ ±15% 50/60 Hz
PowerCon® (NAC3MPA + NAC3MPB)
575 W (nominal) 1200 W (max)
Neutrik XLR-M / XLR-F
ETHERCON® (NE8FAV)
360 mm (14.2")
610 mm (24")
310 mm (12.2")
35°
15 mm phenolic birch plywood
Black textured paint (or White)
Rigging points
Optional brackets
19 Kg (41.8 lbs)
