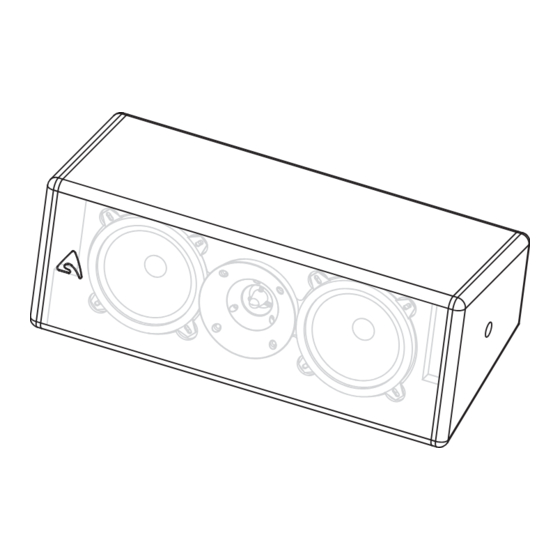

- Page 1 ED25P passive near-field point source loudspeaker USER MANUAL revision 2023-09-19...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents
Due to its very low profile, the ED25P is an ideal stage lip monitor and is especially useful for fashion show catwalks where it can provide unobtrusive inwards/ outwards coverage for both audience and presenters. -
Page 5: Mechanical Drawing
SPARE PARTS NL4MP Neutrik Speakon® panel socket 98ALT200001 5.25’’ woofer - 1.5” VC - 8 ohm 91CRO039AR1 98DRI025C ED23P/ED25P Crossover PCBA 1’’ HF driver - 1” VC - 8 ohm with Wave Guide... -
Page 6: Input
(pass thru) LINK Power output in parallel with the INPUT socket, for connecting the unit to another speaker. The number of ED25P cabinets that can be connected in parallel depends on the amplifier load capacity. Note: there is no silk-screen printing on the speaker, the illustration above is only representative of the internal connection, both speakon connectors on the sides of the speaker can be used as INPUT or LINK. -
Page 7: Kpted25B Wall Or Truss Mounting
KPTED25B WALL or TRUSS MOUNTING Using the “C” shape bracket the ED25P loudspeaker can be installed to walls or mounted to trusses in combination combining with a M12 ALISCAF (not supplied). It allows to aim the speaker in one direction, vertical or horizontal. - Page 8 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
