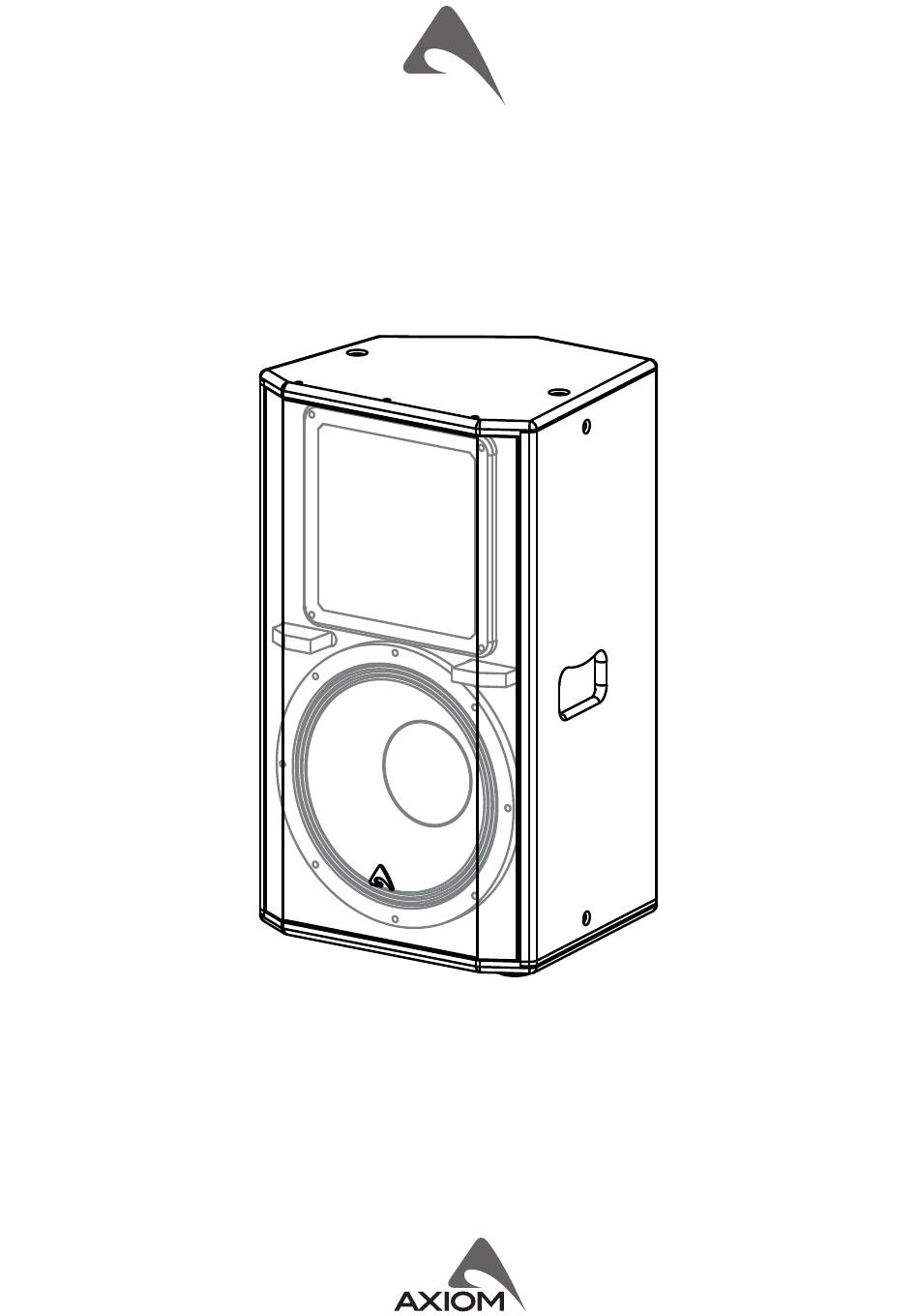

- Page 1 ED120P passive point source loudspeaker USER MANUAL revision 2023-08-31...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 DECLARATION OF CONFORMITY The product is in compliance with: RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU. The product is in compliance with: S.I. 2012/3032 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase.
-
Page 4: Table Of Contents

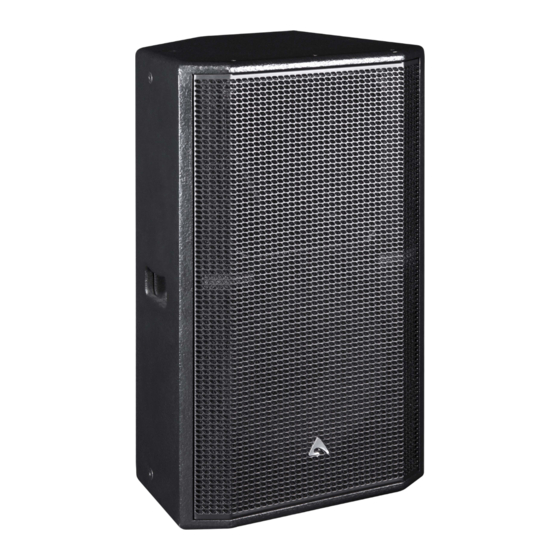

Passive ED series loudspeaker systems are easy to set up and simple to operate. The ED120P consists of an 12” LF drive unit and a 1.4” HF compression driver loaded by an asymmetric HF horn in a compact enclosure, designed for many multi-purpose sound h60°... -
Page 5: Mechanical Drawing
SPARE PARTS NL4MP 98DRI2065 Neutrik Speakon® panel socket 1.4’’ - 2.4” VC compression driver - 8 ohm 91CR0072 98MBN2065 ED120P Crossover PCBA titanium diaphragm for 1.4” driver 98ED120WZ8 12’’ woofer - 3” VC - 8 ohm... -
Page 6: Input
VERTICAL POSITION INPUT FOH CONFIGURATION Power input for the external amplifier. The ED120P includes a passive crossover for filtering the signal, �ght dispersion HORIZONTAL POSITION HORIZONTAL POSITION it includes also an internal protection that limit for excessive power on the HF section and if the signal... -
Page 7: Kpted120B Wall Or Truss Mounting
KPTED120B WALL or TRUSS MOUNTING Using the “C” shape bracket the ED120P loudspeaker can be mounted to walls or truss combining it with two PLH300: It allows to aim the speaker in one direction (vertical or horizontal) in 15 steps (0°, ±10°, ±15°, ±25°, ±30°, ±40°, ±55°, ±70°). - Page 8 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
