Page 3: Before Use

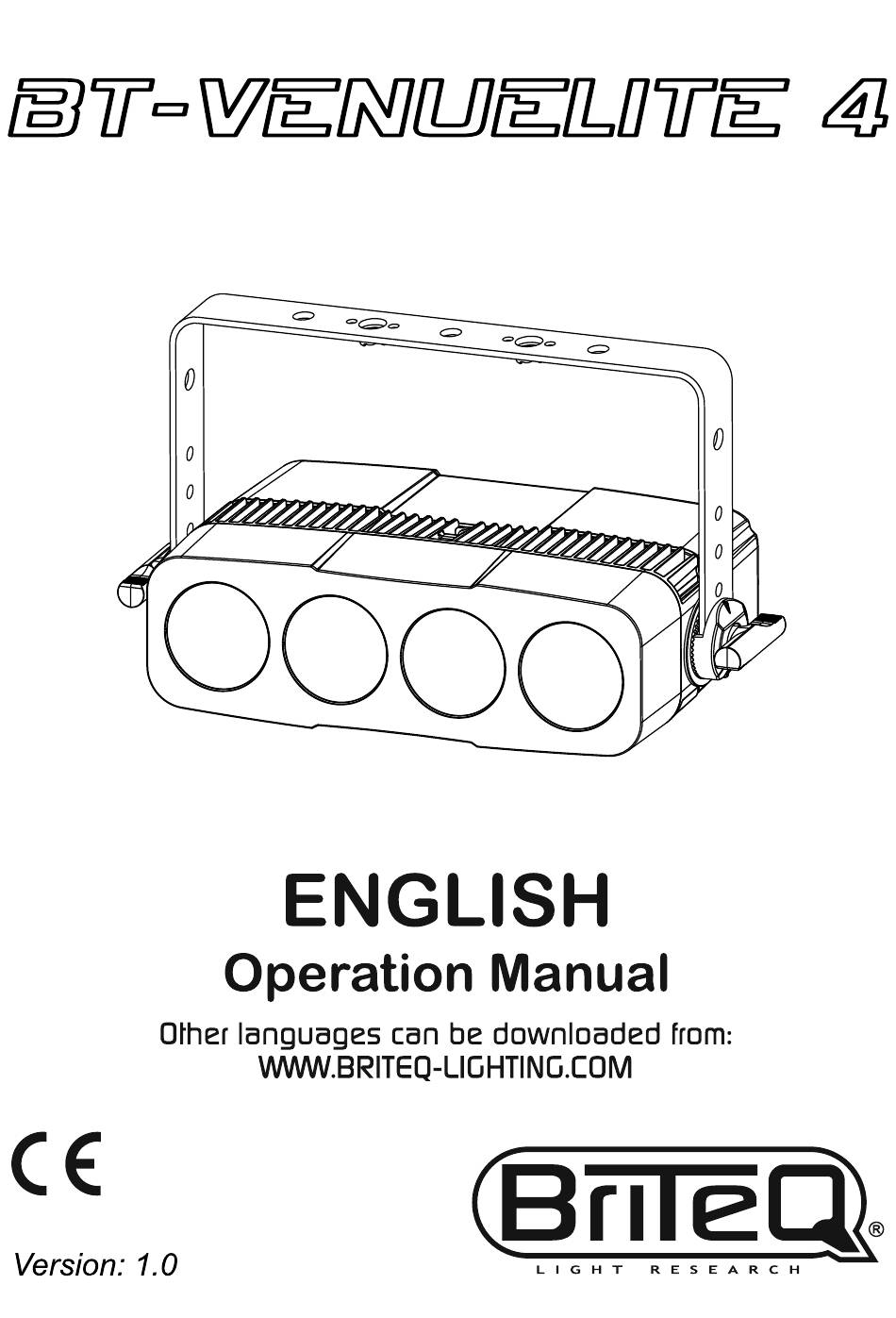

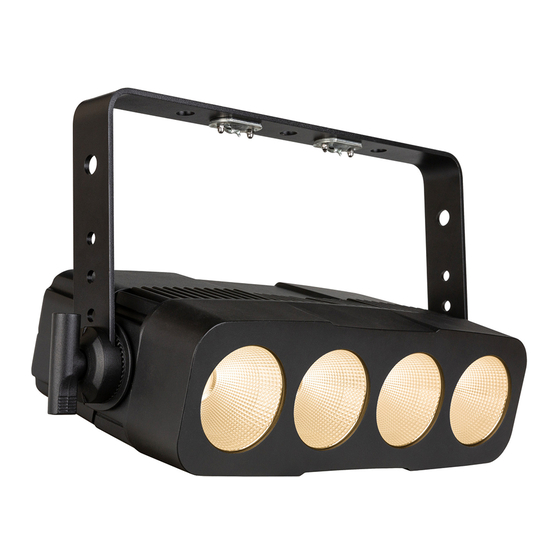

ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • This stylish 4-cell white projector has some very interesting features that make it extremely suitable for lighting in auditoriums, concert halls, art galleries, museums, and many more. -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/12 BT-VENUELITE4 ®... - Page 5 (optional) WTR-DMX DONGLE from BRITEQ and you will get wireless DMX! Follow the ® procedure in the user manual supplied with the WTR-DMX DONGLE from BRITEQ . The separate WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: 4645) •...
-
Page 6: Overhead Rigging
LOAD ? SETUP MENU Default Settings USER Defaults LOAD / SAVE ? Battery Power: xx.xV / yyy% LED Temperature xxx °C SETUP MENU TOTAL Usage Time xxxx Hrs Information Error Messages ********** Firmware Version V x.xx BRITEQ 4/12 BT-VENUELITE4 ®... -
Page 7: Dmx Address
• Use ▼/▲ buttons to select the desired dimmer level: 026 (10%) → 204 (80%) Notes: In stand-alone mode, the emergency light cannot be used! With a fully charges battery the emergency light works for almost 2hours at 80%. To extend this, simply reduce the dimmer level to minimum 10%. BRITEQ 5/12 BT-VENUELITE4... -
Page 8: Dimmer Speed
Used to make easy firmware updates using a standard USB-memory. • Insert the USB-memory on the back panel (see below how to prepare the USB-memory ) • Press the ▼/▲ buttons to browse the menu until the required function shows up. BRITEQ 6/12 BT-VENUELITE4... -
Page 9: Factory Reset
Important notes on preparing the USB-memory: Use a (small capacity) USB-memory stick and format the memory stick in FAT32 format Download the “update-file” (V4-V****.CKF) from the BT-VENUELITE4 product page on the Briteq website: save it to the root of the USB-memory. -
Page 10: Electrical Installation
• Remove the metal plate (C) and swap the standard reflectors against the reflectors (24° or 60°) from the optional reflector set. • Repeat the actions in reverse order to close the projector again. • Done. BRITEQ 8/12 BT-VENUELITE4 ®... -
Page 11: Installing The Optional Battery
000-255 Dimmer cell 1 (0-100%) controls cell 1 individually 000-255 Dimmer cell 2 (0-100%) controls cell 2 individually 000-255 Dimmer cell 3 (0-100%) controls cell 3 individually 000-255 Dimmer cell 4 (0-100%) controls cell 4 individually BRITEQ 9/12 BT-VENUELITE4 ®... -
Page 12: Maintenance
• The DMX-controller asks each RDM device for some basic data so it knows which devices are connected. The projector will respond: • Device name: BT-VENUELITE4 • Manufacturer: ® Briteq • Category: LED Dimmer • Firmware: x.x.x.x (firmware version of the projector) • DMX address: xxx (current DMX start address of the projector) •... -
Page 13: Specifications
For use with: shielded DMX-grade cable Ø: 7 mm DMX channel modes 3 modes: 1, 2, 4 channels Wireless DMX Using an optional WTR-DMX DONGLE More information: https://briteq-lighting.com/wtr-dmx-dongle Lamp type 4pcs 30W Beam angle 45° standard reflectors Optional reflector set 4pcs: 24°(B05182) or 60° (B05183) - Page 14 BT-VENUELITE4 REFL.CUPS 24DEG (order code: B05182): 24° reflector cups, 4pcs (without frame) BT-VENUELITE4 REFL.CUPS 60DEG (order code: B05183): 60° reflector cups, 4pcs (without frame) LUX CHARTS The information might be modified without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 12/12 BT-VENUELITE4...
-
