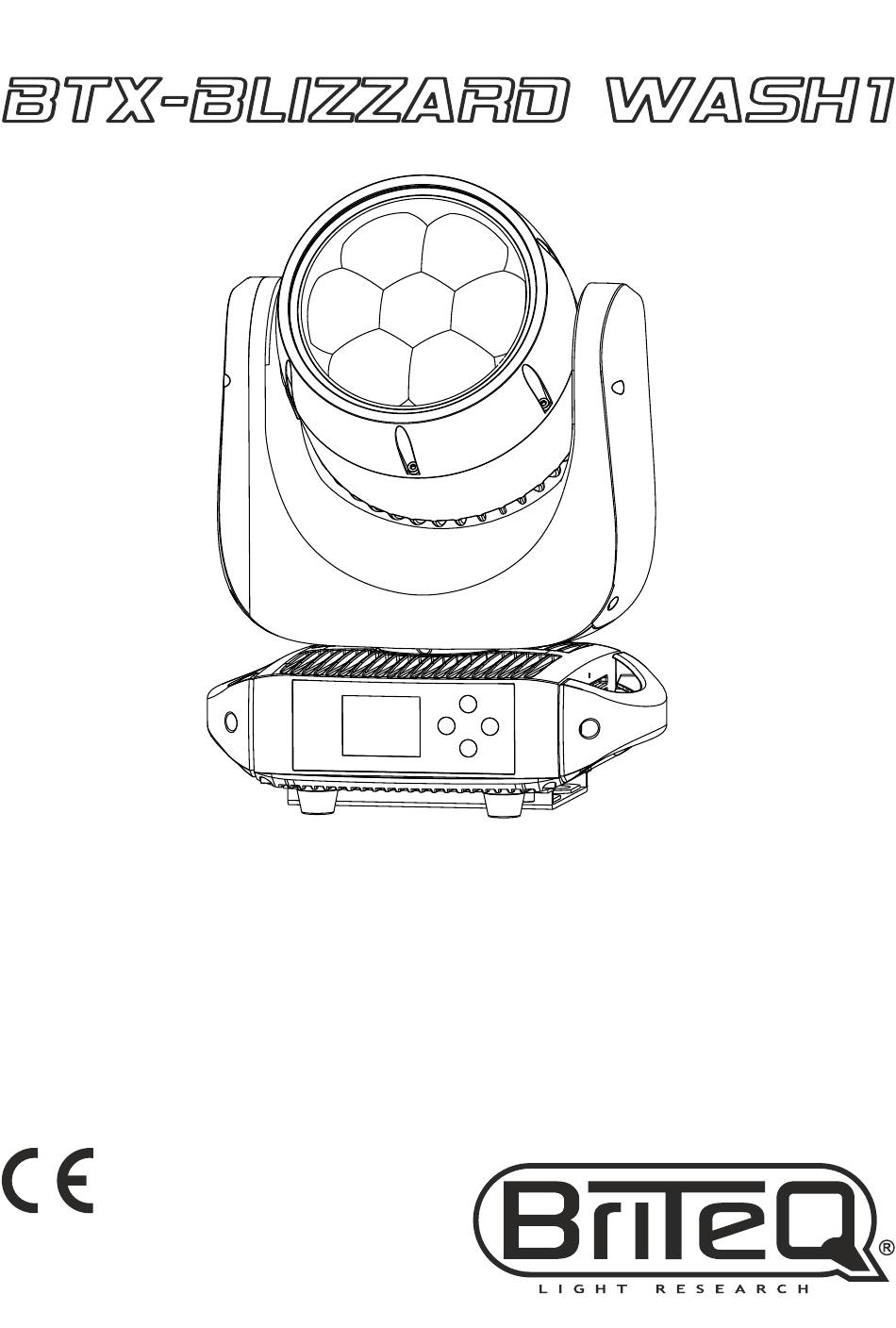

- Page 1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.BRITEQ-LIGHTING.COM Version: 1.0...
-
Page 3: Before Use

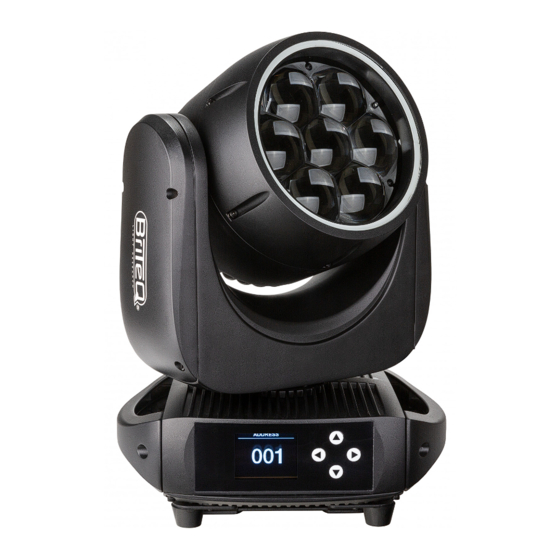

ENGLISH OPERATION MANUAL OPERATION MANUAL ® Thank you for buying this Briteq product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES • Extremely compact and powerful moving wash, equipped with 7x40W OSRAM ®... -
Page 4: Safety Instructions
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. BRITEQ 2/17 BTX-BLIZZARD WASH1 ®... -
Page 5: Overhead Rigging
• Fix the Truss hooks to the optional omega brackets with screw and locking nut. • Fasten the omega brackets on the bottom of the base by inserting quick-lock fasteners into the holes of the base and tighten fully clockwise. (you should hear or feel a ‘click’) BRITEQ 3/17 BTX-BLIZZARD WASH1 ®... -
Page 6: Electrical Installation
SETTING MENU Press [Settings] on the display to open the setup menu. Use the [UP/DOWN], [MODE] and [ENTER] buttons to navigate. Menu Sub-menu/Item Address 001-512 HSIC Tour * Person TR16 Pixel DMX512 * Runmode AUTO BRITEQ 4/17 BTX-BLIZZARD WASH1 ®... - Page 7 PT encoder On * WDMX reset only XLRDMX Signal WMX to XLR DMX Off * Green User Color Cali Calibration Blue White Factory calibration Tilt Zoom Green Blue Edit Edit1-2 Step1-30 Lime Strobe Preset Color RedRing BRITEQ 5/17 BTX-BLIZZARD WASH1 ®...
- Page 8 • Use the up/down buttons to select the correct DMX address DMX512 : Fixture reacts to DMX AUTO : Fixture steps automatically through pre-programmed steps Custom1/Custom2 : Fixture steps automatically through user-programmed steps • Press the right button to confirm. BRITEQ 6/17 BTX-BLIZZARD WASH1 ®...
- Page 9 • Press the up/down buttons to select OPTION and hit the right button to select • Press the up/down buttons to select the LED PWM option and hit the right button to select. • Use the up/down buttons to select the correct frequency BRITEQ 7/17 BTX-BLIZZARD WASH1 ®...
- Page 10 • Press the up/down buttons to select OPTION and hit the right button to select • Press the up/down buttons to select the PT ENCODER option and hit the right button to select. • Use the up/down buttons to select ON/OFF • Press the right button to confirm. BRITEQ 8/17 BTX-BLIZZARD WASH1 ®...
- Page 11 • Press the right button to open the menu. (Enter the password if prompted) • Press the up/down buttons to select the MANUAL option and hit the right button to select. • Press the up/down buttons to select the CHANNEL option and hit the right button to select. BRITEQ 9/17 BTX-BLIZZARD WASH1 ®...
- Page 12 Displays the current fixture firmware version Displays the RDM information of the fixture RDM UID: 0x21220048xxxx RDM Label: BTX-BLIZZARD WASH1 SYSTEM ERROR Displays possible system errors UPDATE SOFTWARE Used to calibrate the base pan/tilt position • Insert USB-C drive into the USB-C port on the back •...
- Page 13 2. When the bottom is removed you see the empty battery slot. 3. Insert the battery (model: 18650 * 3,7V Li-ion) into the slot. Pay attention to the correct direction and polarity. 4. Put the bottom plate back and fix screw the 8 hex screws tightly. BRITEQ 11/17 BTX-BLIZZARD WASH1 ®...
-
Page 14: Dmx Channels
Blue1 fine Lime1 Lime1 fine Red2 Green2 Blue2 Lime2 Dimmer Dimmer fine Hue fine Saturation Strobe Color preset Zoom Halo Red Halo Green Halo Blue Halo color presets Halo FX FX speed Halo Dimmer Control BRITEQ 12/17 BTX-BLIZZARD WASH1 ®... - Page 15 6000K 160-174 6500K 175-189 7000K 190-204 8000K 205-255 10000K Zoom 000-255 Halo Red 000-255 Halo Green 000-255 Halo Blue 000-255 000-009 Open 010-174 Color preset Halo color presets 175-179 Open 180-248 No function 249-255 Open BRITEQ 13/17 BTX-BLIZZARD WASH1 ®...
-
Page 16: Maintenance
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly. • The interior of the device should be cleaned annually using a vacuum cleaner or air-jet. BRITEQ 14/17 BTX-BLIZZARD WASH1 ®... -
Page 17: Specifications
RGBL LEDs Size: 290 x 227 x 375 mm Weight: 10 kg All the information is subject to change without prior notice You can download the latest version of this user manual on our website: www.briteq-lighting.com BRITEQ 15/17 BTX-BLIZZARD WASH1 ®... - Page 18 Color 12 Turquoise 0,235 0,36 121-135 No Function 136-140 Color 13 L728 Steel Green 0,256 0,302 141-145 Color 14 L117 Steel Blue 0,223 0,278 146-150 Color 15 L354 Special Steel Blue 0,173 0,265 151-155 No function BRITEQ 16/17 BTX-BLIZZARD WASH1 ®...
- Page 19 Honey yellow 130-134 Color25 Light pin 135-139 Color26 Deep orange 140-144 Color27 Lemmon 145-149 Color28 Golden yellow 150-154 Color29 Pastel orange 155-159 Color30 Cream 160-164 Color31 Melon yellow 165-169 Color32 Luminous orange 170-174 Color33 Luminous yellow BRITEQ 17/17 BTX-BLIZZARD WASH1 ®...
-
Page 20: Mailing List
