3.5.12 Configuring VLAN Settings
Admins can configure VLAN Settings. VLAN Settings allow you to configure the VLAN mode
Manual, CDP only or LLDP only. Note that LLDP switch information is retrieved (for location
purposes) when parameter network/lan/lldp/enabled=1 (even when VLAN is retrieved from CDP or
VLAN is disabled or VLAN is Manual).

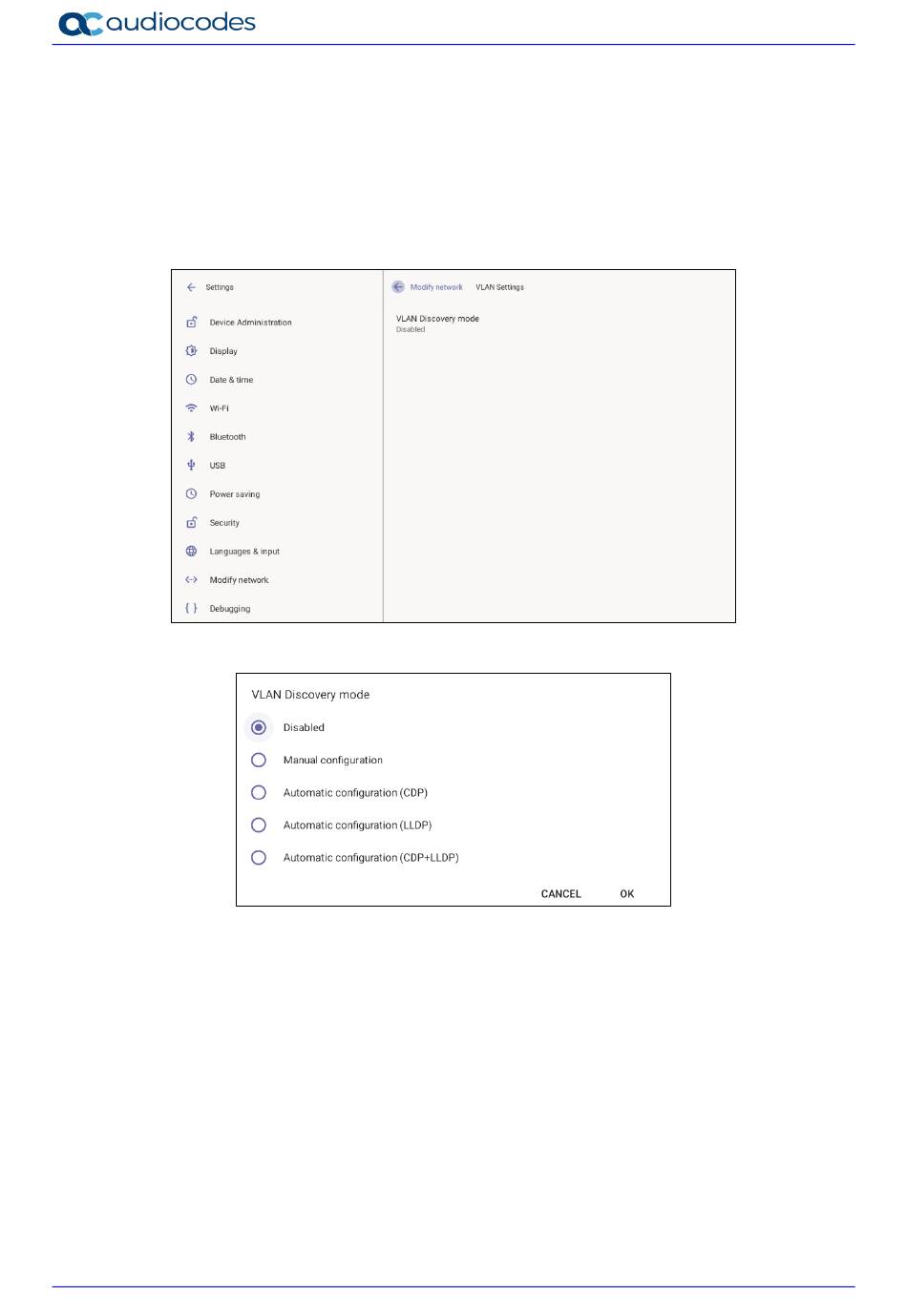

To configure VLAN settings:
1.
Under 'Device admin settings', tap VLAN Settings.
2.
Tap VLAN Discovery mode.
•
Cisco Discovery Protocol (CDP) is a Cisco proprietary Data Link Layer protocol
Link Layer Discovery Protocol (LLDP) is a standard, layer two discovery protocol
•
3.
Select the mode you require and then tap OK. If you select Manual configuration, this screen
opens:
User's Manual
28
RX-PANEL
Document #: LTRT-18290
