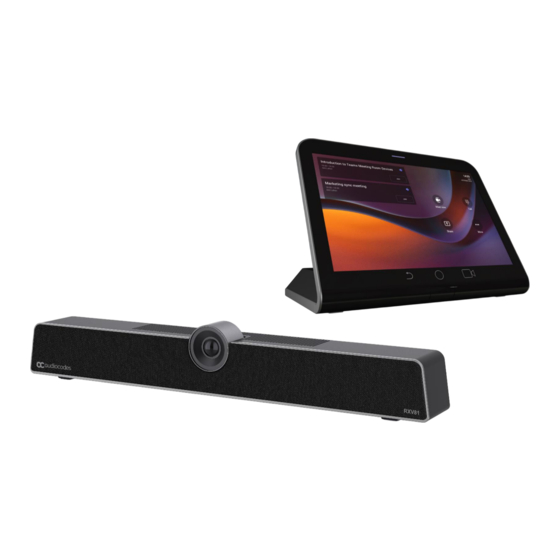

Mtr on android video collaboration bar with rx-pad meeting room controller
Hide thumbs Also See for RXV81:
Table of Contents

Advertisement

Quick Links

Download this manual
User's & Administrator's Manual
Room Experience (RX) Suite
RXV81 MTR on Android™ Video
Collaboration Bar with RX-PAD
Meeting Room Controller
Version 2.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RXV81 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AudioCodes RXV81

Summary of Contents for AudioCodes RXV81

  • Page 1 User's & Administrator’s Manual Room Experience (RX) Suite RXV81 MTR on Android™ Video Collaboration Bar with RX-PAD Meeting Room Controller Version 2.4...

  • Page 3: Table Of Contents

    About Microsoft Teams ..................... 37 3.10 Signing out ......................... 37 Configuring RXV81 Settings ....................39 Device Admin Settings ...................... 42 4.1.1 Conf iguring Display ....................42 4.1.2 Conf iguring Date & Time .................... 44 Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 4 Removing Devices from Intune admin center..............76 Viewing RXV81 Status LEDs ....................81 Monitoring Device Modules States ................... 83 Using RXV81 in Ad Hoc Peripheral Mode ................ 85 Updating the RXV81 MTR Remotely ................. 89 Updating RXV81 Audio and Camera Peripherals Firmware ..........89 Replacing RC Batteries ......................
  • Page 5 Contents List of Figures Figure 3-1: Home Page .......................... 23 Figure 3-2: RXV81 Camera Settings when using RCU (not RX-PAD) ............25 Figure 3-3: Camera settings ........................26 Figure 3-4: New meeting – Invite someone ....................28 Figure 3-5: New meeting – Enter the name of a person ................28 Figure 3-6: New meeting –...
  • Page 6 Please contact your local recycling authority f or disposal of this product. Customer Support Customer technical support and services are provided by AudioCodes or by an authorized AudioCodes Service Partner. For more inf ormation on how to buy technical support f or AudioCodes products f or...

  • Page 7: Introduction

    Enhance the meeting experience with centralized device management and monitoring f rom any location. ◼ Peripheral Mode. RXV81 can be used on an ad hoc basis as a USB A/V peripheral f or any UC client. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 8: Benefits

    Hardware Features ◼ RXV81 can be used on an ad hoc basis as a USB A/V peripheral f or any UC client ◼ Wide-angle lens with 110° f ield of view (FoV) covers every seat in the meeting room. D: 120º/ H: 110º/ V: 75º...

  • Page 9: Specifications

    User's & Administrator's Manual Contents Specifications The f ollowing table shows RXV81 specif ications. Table 1-2: Specifications Feature Details ▪ Ultra HD 4k image sensor Video capabilities ▪ Super-wide angle horizontal f ield of view: 110° ▪ Lens: Fixed f ocus ▪...
  • Page 10 Simple sign-in interf ace f rom browser or smartphone with a code ‘Direct guest join’ to allow joining a third -party meeting ✓ ✓ ‘Cast inf o’ f rom mobile to the RXV81 screen over Bluetooth ✓ ‘Room remote’ using Teams mobile app allowing controlling RXV81 ✓...

  • Page 11: Security Guidelines

    Android devices can be converted into public kiosk terminals or secured work devices. ◼ Only specif ic Microsoft apps and AudioCodes signed apps that were certif ied and approved in the certif ication process can run under the Kiosk mode; even if a malicious user managed to install a new un-authorized app on the f ile system –...

  • Page 12: Screen Lock

    1.7.2.4 AudioCodes Private Key The system sof tware on the device is signed with AudioCodes private key – users can replace the complete sof tware only with new sof tware that is also signed by the AudioCodes private key. This prevents the user f rom replacing the complete OTA package of the device with any new system sof tware unless this sof tware has been f ully signed by AudioCodes.

  • Page 13: Sandboxing

    AudioCodes Native Teams devices run Android which has integral procedures f or protecting and securing user data. 1.7.2.14 Device File System The device f ile system is encrypted on the RXV81 device – customers may enf orce a policy of device encryption via Microsof t Intune. 1.7.2.15 Debugging Interface ◼...

  • Page 14: Audiocodes Root Ca Certificate

    RXV81 MTR on Android Video Collaboration Bar 1.7.4 AudioCodes Root CA Certificate -----BEGIN CERTIFICATE----- MIIDMTCCAhmgAwIBAgIBATANBgkqhkiG9w0BAQsFADAfMQwwCgYDVQQKEwNBQ0wx DzANBgNVBAMTBlJvb3RDQTAeFw0wMDAxMDEwMDAwMDBaFw0zMDAxMDEwMDAwMDBa MB8xDDAKBgNVBAoTA0FDTDEPMA0GA1UEAxMGUm9vdENBMIIBIjANBgkqhkiG9w0B AQEFAAOCAQ8AMIIBCgKCAQEA6GK495KUCXAm/UE17G4/cjnZN4LNaxYEYzbfZL0a EhgSKYt/LQ+iUcDhojsneusNgrcGkpwKklKsGsvGWmSRNULV01CW+TX2VJN73+hh V0uzhyOIYAUhbDaoqNM6Kp5b7sJ1ew4Ig9kfd/ma9Czl5koESLlw/inLj/r+rD96 mUcPElWrKspv7Qy4I14fsK/yMArixRopTL1munVVPpSFM9Jh8IY3JHyr5CQJXKKs EhGAJsnHaRqsR2Su3X/WtslgEF+cvP34pxhlhFL29nMfnaFATSS3rgGaFlSvl1ZS esLMqkWjp9cqGYrvt7K61sYnvMMb+o/KbWqVokXb+Fr7bwIDAQABo3gwdjAMBgNV HRMEBTADAQH/MB0GA1UdDgQWBBQDXySn9hz15lDraZ+iXddZGReB+zBHBgNVHSME QDA+gBQDXySn9hz15lDraZ+iXddZGReB+6EjpCEwHzEMMAoGA1UEChMDQUNMMQ8w DQYDVQQDEwZSb290Q0GCAQEwDQYJKoZIhvcNAQELBQADggEBAI0rUywommWWJnH3 JOfKiS3+VnX5hJITZymvWanMXUz/6FonHccPXEBYTrUYwhiWx3dwELAFXDFKkxMp 0KKWZ4F39cAOLRjqhzya+xUeeJ9HQZCXYAJ6XgvTfN2BtyZk9Ma8WG+H1hNvvTZY QLbWsjQdu4eFniEufeYDke1jQ6800LwMlFlc59hMQCeJTenRx4HdJbJV86k1gBUE A7fJT1ePrRnXNDRz6QtADWoX3OmN7Meqen/roTwvLpEP22nYwvB28dq3JetlQKwu XC4gwI/o8K2wo3pySLU9Y/vanxXCr0/en5l3RDz1YpYWmQwHA8jJIu8rxdhr+VNQ Zv6R/Ys= -----END CERTIFICATE---- User's & Administrator's Manual Document #: LTRT-18259...

  • Page 15: Certificate Enrollment Using Scep

    The device supports certif icate enrollment using Simple Certif icate Enrollment Protocol (SCEP) using Microsof t’s Network Device Enrollment Service (NDES) server without using AudioCodes' OVOC, thereby allowing device certif icates and CA certif icate provisioning to be scaled to multiple devices.

  • Page 16: Provisioning Certificates In .Pfx Format

    ◼ /security/device_private_key_url = NULL ◼ security/device_certif icate/password=<pf x password> The f eature is also supported by AudioCodes’ Android Phone Utility. Note: • Certif icate loading is perf ormed using HTTP; prior to version 1.19, it was perf ormed using SCP.

  • Page 17: Connecting To Rxv81

    • Package contents • Mounting • Cabling Af ter mounting and cabling the RXV81 device as shown in the Deployment Guide, pair it with the ◼ Remote Controller (see the next section) ◼ RX-PAD (see Pairing RX-PAD with Teams Rooms on Android AudioCodes Devices ) Pairing with the RC The instructions here show how to pair RXV81 with the RC.
  • Page 18 RXV81 MTR on Android Video Collaboration Bar On the RC, simultaneously press and hold until RC and RXV81 are connected. Use the remote control to navigate to and select a language; the sign-in screen is displayed. User's & Administrator's Manual...

  • Page 19: Signing In

    Provision the device by imprinting a MAC address on it. 1. Sign in to the Teams admin center. 2. Expand Devices. 3. Select Provision new device f rom the Actions tab. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 20 RXV81 MTR on Android Video Collaboration Bar In the ‘Provision new devices’ window, you can either add the MAC address manually or upload a f ile. Manually add a device MAC address 1. From the Awaiting Activation tab, select Add MAC ID.
  • Page 21 1. Select a device f rom the Awaiting sign in tab. 2. Follow the instructions in Sign in a user, and then select Close. The tenant admin is expected to complete authentication on the device f rom any browser or smartphone. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 22 RXV81 MTR on Android Video Collaboration Bar When the tenant admin is signing in f rom Teams Admin Center, the user interf ace on the device is blocked to prevent other actions on the phone. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 23: Using General Rxv81 Functions

    Notif ication messages that pop up on the RXV81 device are seamlessly mirrored in the bundled RX-PAD. When a message pops up in the RXV81 GUI, the same is displayed in RX -PAD. The f eature streamlines user experience, allowing users to conveniently conf irm messages directly from RX-PAD and manage notif ications intuitively and ef f iciently.

  • Page 24: Configuring A Bundle

    If the alert is an action, you can perf orm the action using RX-PAD, f or example, REBOOT / DO IT LATER / COLLAPSE, as shown in the f igure below. Configuring a Bundle Admins can conf igure an RXV81 bundle. Inf ormation about available bundles can be seen here. ➢ To configure a bundle: ◼...

  • Page 25: Modifying Rxv81 Camera Settings

    User's & Administrator's Manual Contents Modifying RXV81 Camera Settings You can modif y RXV81 Camera Settings relating to the look and f eel of the video user interf ace, to suit your pref erences. ➢ To access RXV81 Camera Settings: ◼...

  • Page 26: Figure 3-3: Camera Settings

    RXV81 MTR on Android Video Collaboration Bar • For example, if a preset is conf igured to zoom in and f ocus on the whiteboard in a room, users in a video call/meeting can switch to it and later switch back to the f ull room preset or any other predef ined preset.
  • Page 27 User's & Administrator's Manual Contents Navigate to and select Reset f or the camera settings to return to their def aults. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 28: Starting A New Meeting

    RXV81 MTR on Android Video Collaboration Bar Starting a New Meeting ➢ To start a new meeting: In the home screen, navigate to and select the Meet Now option. Figure 3-4: New meeting – Invite someone In the ‘Invite someone’ f ield, enter the name of a person to invite; af ter entering the f irst letters in the name, matching contacts f rom directory are displayed.

  • Page 29: Figure 3-6: New Meeting - Select The Name Of A Person

    The server manages every aspect of the call. Select Accept. Note that according to the icon in the ‘Incoming call’ screen shown in the preceding f igure, the caller has video capability. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 30 RXV81 MTR on Android Video Collaboration Bar User's & Administrator's Manual Document #: LTRT-18259...

  • Page 31: Dialing A Number

    To dial a phone number: In the home screen, navigate to and select the Dial pad option. Figure 3-7: Dial pad Enter the digits of the destination to call and select Call. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 32: Enabling Proximity Join

    Microsof t Teams Rooms (MTRs). The MTR device is RXV81. If you bring a laptop or a Teams Mobile Client near RXV81, it’ll of f er RXV81 as the room audio device. The f igure below shows how to select the room audio device.

  • Page 33: Sharing A Whiteboard

    Contents Sharing a Whiteboard Teams meetings on RXV81 allow participants to open a virtual whiteboard – a digital canvas - on which they can sketch, illustrate, collaborate, brainstorm, plan, and share perspectives with one another in real time. The f ocus switches away f rom the presenting participant to the whiteboard. For more inf ormation about this Microsof t f eature, see here.
  • Page 34 RXV81 MTR on Android Video Collaboration Bar View the Whiteboard in the Teams desktop application or in Teams client : Edit the Whiteboard; every participant with privileges can edit it. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 35: Screen Sharing

    User's & Administrator's Manual Contents Screen Sharing RXV81 enables users to share their PC screen via the RX-PAD HDMI In port. The f eature extends HDMI In f unctionality. Note: • A short HDMI cable connects the PC/laptop to the RX-PAD HDMI In port.
  • Page 36 RXV81 MTR on Android Video Collaboration Bar ◼ Allow incoming connections on the f ollowing ports: • 80/tcp • 443/tcp • 3478/udp • 5349/tcp • 10000/udp User's & Administrator's Manual Document #: LTRT-18259...

  • Page 37: About Microsoft Teams

    Navigate to Teams admin settings > Teams sign out and conf irm in the prompt below. Optionally, remote sign-out can be perf ormed f rom Microsof t Teams admin center (TAC). Admins can provision RXV81 f rom the TAC, remotely sign in, and also sign out. ➢...
  • Page 38 RXV81 MTR on Android Video Collaboration Bar This page is intentionally lef t blank. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 39: Configuring Rxv81 Settings

    User's & Administrator's Manual Contents Configuring RXV81 Settings The section f amiliarizes you with RXV81’s settings. RXV81s are delivered conf igured with their def ault settings. Customers can customize them to suit enterprise requirements. ➢ To access device settings: In the home screen, navigate to and select the More option.
  • Page 40 RXV81 MTR on Android Video Collaboration Bar Navigate to and select Device Administration. Log in as administrator. Logging in as Administrator is required f or debugging options. It ’s password Note: protected. Def ault: 1234. Af ter logging in as Admin, you can log out | change password.
  • Page 41 The def ault password can be changed per device f rom the GUI, or via bulk conf iguration of multiple devices using Microsof t’s TAC or AudioCodes’ Device Manager. Enter a password; you’re prompted to verif y the password you entered. Criteria required for a strong password are provided (f or strengthened security) in order to Log in as Administrator: •...

  • Page 42: Device Admin Settings

    RXV81 MTR on Android Video Collaboration Bar Device Admin Settings Af ter logging in as Device Administration as shown in the previous section, you can conf igure Device Administration settings: Display, Date & Time, Wi-Fi, Camera. 4.1.1 Configuring Display Modif y these settings to suit your pref erences related to the look and f eel of the user interf ace.
  • Page 43 User's & Administrator's Manual Contents Navigate to and select Screen saver. Navigate to and select Off to switch it on and then choose the screen saver. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 44: Configuring Date & Time

    RXV81 MTR on Android Video Collaboration Bar 4.1.2 Configuring Date & Time Date and time are automatically retrieved f rom the deployed Network Time Protocol (NTP) server. ➢ To configure Date & Time: Under ‘Device admin settings’, navigate to and select Date & Time.

  • Page 45: Configuring Wi-Fi

    RXV81 can connect to an Access Point via Wi-Fi. Network administrators can conf igure Wi-Fi parameters f or RXV81. The parameters are concealed f rom the user's view. Users can enable | disable Wi-Fi in the device’s user interf ace.

  • Page 46: Manually Connecting To A Wi-Fi Network

    RXV81 MTR on Android Video Collaboration Bar 4.1.3.2 Manually Connecting to a Wi-Fi Network ➢ To manually connect to a Wi-Fi network: Note: Make sure to f irst disconnect your Ethernet cable. If it's connected, the device will not be able to connect to a Wi-Fi network.

  • Page 47: Table 4-1: Configuration File Wi-Fi Parameters

    Def ines the URL of the PAC f ile. options/proxy/auto_conf ig/pac_url network/wireless/adavanced_ Def ines the list of IP addresses that will be blocked. options/proxy/manual/exclusion_list network/wireless/adavanced_ Def ines the name of the proxy host. options/proxy/manual/proxy_ hostname Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 48 RXV81 MTR on Android Video Collaboration Bar Parameter Description network/wireless/adavanced_ Def ines the proxy port. options/proxy/manual/proxy_port Def ines the anonymous wireless users who won’t be seen. network/wireless/anon_identity network/wireless/ca_cert Def ines which CA certif icate to use. network/wireless/client_cert Def ines which client certif icate to use.

  • Page 49: Configuring Camera Settings

    Navigate to and select Camera settings; the video stream is played and the f ollowing is displayed on the right side of the screen: Create and edit presets using PTZ control. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 50: Configuring Camera Frequency

    An Auto-Framing option is available under Camera Settings. ◼ To enable Auto-Framing on RXV81 paired with RX-PAD, use the camera hard key to access the Camera Settings page. For RXV81 paired with the Remote Controller unit (RCU), long -press the RCU’s camera ◼...
  • Page 51 Camera Settings or if another end user later enters; temporary presets are only f or that meeting they were conf igured f or; new presets can be conf igured f or the new meeting. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 52 RXV81 MTR on Android Video Collaboration Bar User's & Administrator's Manual Document #: LTRT-18259...

  • Page 53: Pairing Rc With Rxv81 Via Bluetooth

    User's & Administrator's Manual Contents 4.1.6 Pairing RC with RXV81 via Bluetooth Bluetooth is currently used to pair the RC with RXV81. ➢ To pair a new device: Under ‘Device admin settings’, navigate to and select Bluetooth. Navigate to and select Pair new device.
  • Page 54 RXV81 MTR on Android Video Collaboration Bar Navigate to and select Show virtual keyboard. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 55: Modifying Ip Network Settings

    Under ‘Device admin settings’, navigate to and select Modify network. Navigate to and select: • IP Address [Read Only] • IP Settings [DHCP or Static IP] • Network state [Read Only] • Proxy Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 56 RXV81 MTR on Android Video Collaboration Bar  Manually (f rom the screen shown in the preceding f igure). Allows you to conf igure RXV81 with an HTTP proxy server. Conf igure the proxy hostname and proxy port and then navigate to and select Done. ...
  • Page 57 From version 1.19, LLDP switch inf ormation (f or location purposes) is retrieved when parameter network/lan/lldp/enabled=1 (even when VLAN is retrieved f rom CDP or VLAN is disabled or VLAN is Manual). Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 58: Configuring Call Settings

    RXV81 MTR on Android Video Collaboration Bar 4.1.9 Configuring Call Settings This setting enables the user to conf igure call-associated f unctionalities to suit personal pref erences. ➢ To configure call settings: From the home page, navigate to and select More and then navigate to and select Settings.

  • Page 59: Configuring Dscp For Qos

    Contents 4.1.10 Configuring DSCP for QoS RXV81 Teams application supports DS (Dif f erentiated Services) containing a dif f erentiated Services Code Point (DSCP) value and an ECN (Explicit Congestion Notif ication) value, f or monitoring Quality of Service (QoS).
  • Page 60 RXV81 MTR on Android Video Collaboration Bar The f igure below shows the recommended DSCP setting f or Video. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 61: Debugging

    Launch mobile teams (see under Launch Mobile Teams) • Debug Recording (see under Debug Recording) • Erase all data (see under Erase all data (f actory reset) • Screen Capture (see under Screen Capture) Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 62: Log Settings | Collecting Logs

    RXV81 MTR on Android Video Collaboration Bar 4.1.11.1 Log Settings | Collecting Logs Device diagnostics (Logcat) can be collected using the Microsof t Admin Portal. For support purposes, general logs can be collected also using the Microsof t Admin Portal. The logs can help debug Teams application issues and also f or issues related to the device.
  • Page 63 User's & Administrator's Manual Contents Note: The preceding figure is f or illustrative purposes. It shows an AudioCodes phone. The same screen is displayed f or RXV81. Click the icon. Diagnostics Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 64: Remote Logging

    RXV81 MTR on Android Video Collaboration Bar Click Proceed; the logs are uploaded to the server. Click the History tab. Click Download to download the logs. 4.1.11.2 Remote Logging Remote Logging via Syslog provides the same log level as Device Diagnostics (perf ormed via the Microsof t Admin Portal) with some additional inf ormation that may be relevant to device issues (not Teams application issues).

  • Page 65: Diagnostic Data

    ◼ logcat.log 4.1.11.4 Reset configuration Admin users can opt to ‘clean up’ their conf iguration history and return RXV81 to an Out of Box Experience (OOBE). If the Teams app isn't running well, this might help. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 66: Restart Teams App

    Reproduce the issue (logs are saved to the device so you f irst need to reproduce the issue and then get the logs). Log in to RXV81 as Administrator and then go back. Navigate to and select the Debugging option.

  • Page 67: Launch Mobile Teams

    This f eature enables Admin users to perf orm media/DSP debugging. Note: DSP recording can be activated on the f ly without requiring the network administrator to reset the phone. ➢ To reset the configuration: Navigate to and select Debug Recording. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 68: Erase All Data (Factory Reset)

    RXV81 MTR on Android Video Collaboration Bar Navigate to and select Voice record to enable the f eature. Navigate to and select Remote IP address to input the IP address of the device whose traffic you want to record. Navigate to and select Remote port and input it (Def ault: 5000).

  • Page 69: Performing Recovery Operations Using Power Button

    The f ollowing f igure shows the power button. ➢ To perform recovery operations: Disconnect the power cord f rom RXV81 while long-pressing the power button f or as long as is required f or the action (see Table 4-2 below f or the available actions - see the Action column - and durations –...

  • Page 70: Restoring Rxv81 Firmware Via Usb Disk

    RXV81 MTR on Android Video Collaboration Bar Restoring RXV81 Firmware via USB Disk For recovery purposes, f irmware can be applied to RXV81 f rom a USB disk. ➢ To apply the firmware from the USB disk: Enter recovery mode by pressing f or 2-4 seconds the power button as shown in Table 4-2 above (Action: ENTER_RECOVERY);...

  • Page 71: User Settings

    Under ‘User’, navigate to and select Accessibili ty. Adjust the settings to suit personal requirements. 4.4.3 Setting Live Captions Live Captions can be set in regular one-on-one calls as well as in Teams meetings. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...

  • Page 72: Enabling Display Of Meeting Name Using Exchange Online Powershell

    RXV81 MTR on Android Video Collaboration Bar 4.4.4 Enabling Display of Meeting Name using Exchange Online PowerShell here f or inf ormation about how to access the exchange instance (the tenant). Admin must set the two parameters indicated in the f igure below to ‘False’: ‘Identity’...

  • Page 73: Hiding Names And Meeting Titles

    To reboot: ◼ Under ‘User’, navigate to and select Reboot. 4.4.7 Viewing About RXV81 The ‘About’ screen gives you quick access to inf ormation about RXV81 deployment. ➢ To access the About screen: Navigate to and select About device. Version 2.4...
  • Page 74 RXV81 MTR on Android Video Collaboration Bar Navigate to and select Status. View RXV81’s f irmware inf ormation. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 75: Enrolling A Device With Intune Policies

    User's & Administrator's Manual Contents Enrolling a Device with Intune Policies Two ways are av ailab le to enroll an AudioCodes Teams Android-based device in Intune: Create a dynamic group – see below ◼ ◼ Create an exclusion group – see below 4.5.1...

  • Page 76: Removing Devices From Intune Admin Center

    RXV81 MTR on Android Video Collaboration Bar Removing Devices from Intune admin center You can remove devices f rom Intune admin center when the maximum capacity of signed -in devices is reached. ➢ To remove devices from Intune admin center: Go to Microsof t 365 admin center [portal.of fice.com] and log in with an Administration account.
  • Page 77 User's & Administrator's Manual Contents From the 'OS' drop-down under the Basics tab, select Android (device administrator). From the 'Device action' drop-down, select Delete. Click Next. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 78 RXV81 MTR on Android Video Collaboration Bar Select the devices to delete (i.e., to remove f rom Intune admin center), and then click Select. User's & Administrator's Manual Document #: LTRT-18259...
  • Page 79 Note: It may take some time to completely sync the devices with the account so af ter delet- ing the devices wait f or 30 minutes bef ore signing in. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 80 RXV81 MTR on Android Video Collaboration Bar This page is intentionally lef t blank. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 81: Viewing Rxv81 Status Leds

    5. Viewing RXV81 Status LEDs Viewing RXV81 Status LEDs Use the f ollowing f igure and table as ref erence to determine RXV81 status when viewing LEDs. Table 5-1: Viewing RXV81 LEDs to Determine Status Red / white / red & white...
  • Page 82 RXV81 MTR on Android Video Collaboration Bar This page is intentionally lef t blank. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 83: Monitoring Device Modules States

    6. Monitoring Device Modules States Monitoring Device Modules States AudioCodes provides out-of -the-box troubleshooting capability: Admins can monitor the state of the device’s modules f rom the System State page. If initial provisioning is unsuccessf ul or if admin encounters an issue related to the network / connection to Device Manager, the f eature gives admin an indication as to why.
  • Page 84 RXV81 MTR on Android Video Collaboration Bar Note: • Each state displays its operational result: Successf ul or Failed • For some states, the reason of f ailure will be displayed as well. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 85: Using Rxv81 In Ad Hoc Peripheral Mode

    Using RXV81 in Ad Hoc Peripheral Mode In addition to standalone mode, RXV81 can be used in ad hoc peripheral mode. In this mode, you can connect RXV81 to a BYOD (Bring Your Own Device) (PC/laptop) running a UC client; the BYOD displays meeting video and content and meetings are controlled via the BYOD (join, accept, manage participants).
  • Page 86 RXV81 MTR on Android Video Collaboration Bar View peripheral ad hoc mode displayed on RXV81 as f ollows: View ad hoc peripheral mode displayed on RXV81 bundled with the Remote Controller Unit (RCU) as shown in the f igure below.
  • Page 87 On your TV, make sure to select the HDMI source that is connected to your laptop. Note that you can still use your RXV81 RC to increase or decrease volume, mute or unmute audio, and switch the camera on or of f .
  • Page 88 RXV81 MTR on Android Video Collaboration Bar This page is intentionally lef t blank. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 89: Updating The Rxv81 Mtr Remotely

    Updating RXV81 audio and camera peripherals f irmware is a saf e and streamlined process. Peripherals are updated at the same time as the RXV81 f irmware update; audio and camera peripheral updates are integrated directly within the RXV81 f irmware update process to ensure a saf e overall update experience f or the RXV81 device, prioritizing device integrity.
  • Page 90 RXV81 MTR on Android Video Collaboration Bar View the notif ication 'AudioCodes RXV81 Camera is being updated, do not reboot the device'. Click OK; view the f ollowing: User's & Administrator's Manual Document #: LTRT-18259...
  • Page 91 User's & Administrator's Manual 8. Updating the RXV81 MTR Remotely Af ter the camera update, view the notif ication 'AudioCodes RXV81 Audio is being updated, do not reboot the device'. Click OK; view the f ollowing: Af ter the audio update, view a 'Restarting...’ notif ication.
  • Page 92 RXV81 MTR on Android Video Collaboration Bar This page is intentionally lef t blank. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 93: Replacing Rc Batteries

    9. Replacing RC Batteries Replacing RC Batteries [Only applies to users who acquired the RC bundle] If the RC batteries run low, the RXV81 application notif ies you about the issue. A notif ication is sent to the screen/TV as well as to AudioCodes’...

  • Page 94: Restarting / Rebooting Rxv81

    RXV81 MTR on Android Video Collaboration Bar Restarting / Rebooting RXV81 RXV81 sometimes needs to be restarted / rebooted, f or example, af ter inserting the Bluetooth dongle. ➢ To restart / reboot RXV81: ◼ Long-press the RC power on/of f button f or about f ive seconds (only applies to users with an -or- ◼...

  • Page 95: Rx-Pad Meeting Room Controller

    RX-PAD Meeting Room Controller Pairing Guide f or instructions how to pair the controller with RXV81. AudioCodes’ RX-PAD is a center-of -room intelligent touch controller that provides access to the RXV-81 meeting room. RX-PAD enables capabilities such as one-click collaboration initiation with an integrated calendar, content sharing and camera adjustments, and more.

  • Page 96: Using Rx-Pad To Adjust Rxv81 Camera Settings

    RX-PAD, tap the camera icon (labeled 3 in the preceding f igure). View the camera settings menu and a preview of the room in which RXV81 is located. In the Camera Settings page, adjust the Brightness, Contrast, Saturation, Zoom and Tilt.
  • Page 97 User's & Administrator's Manual 10. RX-PAD Meeting Room Controller Optionally, save the current settings in the running preset, or save them in a separate preset using the Create New Preset button. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 98 RXV81 MTR on Android Video Collaboration Bar This page is intentionally lef t blank. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 99: Remote Controller (Rc)

    (very much like touch control). See also Section 4.1.5. ◼ The keys on the remote controller (Mute, Teams) are illuminated. Note: The remote controller f lashes if the connection to RXV81 f ails. Version 2.4 RXV81 MTR on Android Video Collaboration Bar...
  • Page 100 RXV81 MTR on Android Video Collaboration Bar This page is intentionally lef t blank. User's & Administrator's Manual Document #: LTRT-18259...

  • Page 101: Android-Based Teams Devices Parameters

    Listed here are the conf iguration f ile parameters currently supported by Android -based Teams devices. They're in AudioCodes’ UC version f ormat. The parameters are comprised of Microsof t conf iguration prof ile settings and AudioCodes’ device-specif ic parameters.
  • Page 102 Website: https://www.audiocodes.com/ ©2024 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights, and AudioCodes Room Experience are trademarks or registered trademarks of AudioCodes Limited.
