AudioCodes RX-PANEL Meeting Room Panel
Physical Description

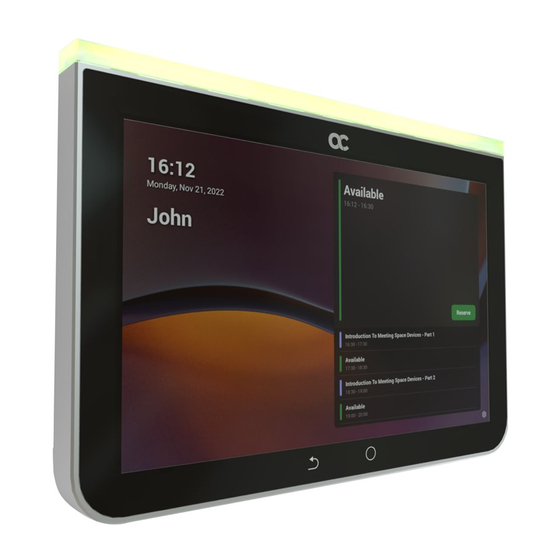

The figure below shows AudioCodes' RX-Panel Meeting Room Panel. See
Checklist: Shipped Items
Make sure you received the following in the shipped box:
Ethernet cable
4 screws, 4 wall anchors, 1 template (for concrete wall mount)
Glass-mounting bracket (for glass partition mount) + adhesive tapes
Note: Power Supply (PS) is not supplied but can be ordered separately
Positioning
Position the device at the entrance to a conference room. Mount the device on a:
concrete wall -or-
glass partition
Quick Guide
P a g e
here
| 1
for more information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AudioCodes RX-PANEL
Summary of Contents for AudioCodes RX-PANEL
- Page 1 AudioCodes RX-PANEL Meeting Room Panel Quick Guide Physical Description The figure below shows AudioCodes’ RX-Panel Meeting Room Panel. See here for more information. Checklist: Shipped Items Make sure you received the following in the shipped box: Ethernet cable 4 screws, 4 wall anchors, 1 template (for concrete wall mount) ...
- Page 2 Use the supplied template to mark locations for 4 wall anchors; insert the 4 screws into them. • Glass partition (see figure below right): Attach the adhesive strips to the bracket, fix the bracket to the glass and hang RX-Panel on it. • Cabling The figures below show the RX-Panel rear connector ports.
- Page 3 Powering up Connect the RX-Panel LAN/PoE to any PoE Ethernet switch; the unit powers up. Managing RX-Panel RX-Panel is managed by AudioCodes’ One Voice Operations Center | Device Manager. Management includes: Firmware management / upgrade Alarm management ...
- Page 4 Use this table as reference to the preceding figure: Description Space availability status LED, viewable from a distance: Green = meeting space available; optionally reserve it right now Red or purple = meeting space unavailable Flashing red is a system status alert indicating, for example, recovery mode. ...
- Page 5 P a g e...
- Page 6 Specifications Feature Specification High resolution 8-inch touch LCD • Display Large, conspicuous Status LED • Concrete wall mount option • Glass partition mount option • POE or DC power enabled • Device interfaces Special touch buttons – Home and Back •...
- Page 7 FCC Caution Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 8 Website: https://www.audiocodes.com/ ©2023 AudioCodes Ltd. All rights reserved. AudioCodes, AC, HD VoIP, HD VoIP Sounds Better, IPmedia, Mediant, MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights, AudioCodes Room Experience are trademarks or registered trademarks of AudioCodes Limited.
