Item #34776-HBUB
Model #1008624855
USE AND CARE GUIDE

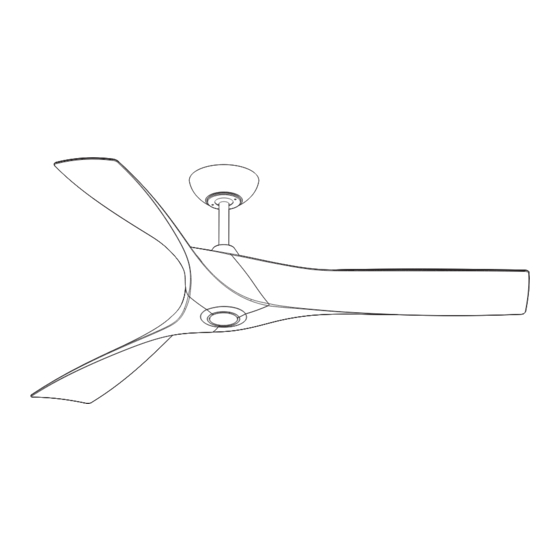

WESLEY 52 INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available
for your home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection WESLEY 1008624855
Summary of Contents for Home Decorators Collection WESLEY 1008624855

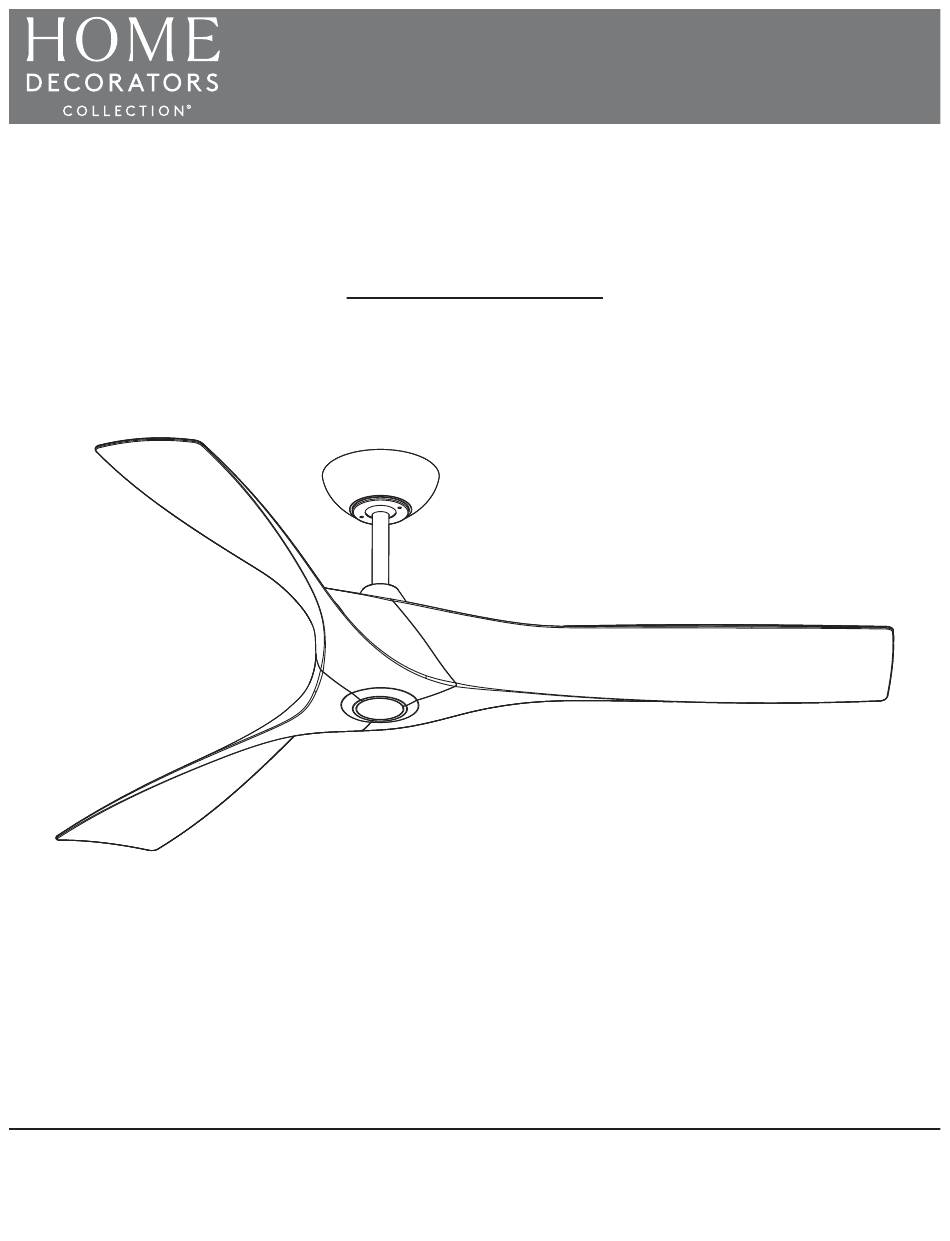

- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available...
-
Page 2: Table Of Contents
Table of Contents Assembly ............... 7 Table of Contents ............2 Safety Information ............2 Operation ..............Warranty .................3 Care and Cleaning ............Pre-installation .............. 3 Troubleshooting ............Installation ..............FCC Statement ............. Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of electrical shock or fire, do not use this fan with any solid-state fan speed To reduce the risk of electric shock, ensure electricity has control device. -
Page 3: Warranty
Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade screw with spring washer (6 preassembled) Metal washer (6 preassembled) Rubber washer (6 preassembled) Flywheel screw (6 preassembled) Wire nuts Cross pin (not to scale) (preassembled) Hitch pin (preassembled) Lock pin (not to scale) (preassembled) Hanger ball set screw (preassembled)
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS ON/OFF BREEZE 6 SPEED TIMER SUMMER WINTER FAN DIRECTION HOLD 3 SEC Part Description Quantity Part Description Quantity Fan motor assembly Blade Mounting bracket Flywheel Canopy Finial Hanger ball (preassembled) Remote control Downrod (preassembled) Wall mounting bracket Coupling cover Battery AAA 1.5 V Motor collar...
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. -
Page 7: Assembly
Assembly — Attaching the Fan Blade motor Fastening the blade assemblies to the fan motor assembly □ Please remove the paper boards between the motor and the wire box before assembly. This paper board is used paper board for protection only. wire box □... - Page 8 Assembly — Hanging the Fan Attaching the coupling cover and Attaching the downrod to the canopy to the downrod fan motor assembly □ Loosen the two fan motor assembly coupling set screws (JJ) □ Slip the coupling cover (F) and canopy (C) onto the downrod from the fan motor assembly (G) coupling.
- Page 9 Assembly — Hanging the Fan (continued) Hanging the fan assembly into the Attaching the mounting bracket to mounting bracket the outlet box □ Lift the fan assembly into position, and place the hanger WARNING: To reduce the risk of fire, electric shock, or ball (D) into the mounting bracket (B).
- Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections WARNING: To avoid possible electrical shock, ensure the electricity is turned off at the circuit breaker or main fuse box before wiring. WARNING: Check to see that all connections are tight, including the ground, and that no bare wire is visible at the Black White...
- Page 11 Assembly — Attaching the Canopy Securing the fan motor assembly to the mounting bracket □ Remove two mounting bracket screws (KK) from the mounting bracket (B). □ Attach the canopy (C) to the mounting bracket (B) by using the two mounting bracket screws (KK) previously removed.
-
Page 12: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS NOTE: On start up, your ceiling fan will oscillate back and forth. This is NORMAL OPERATION for a DC ceiling fan as it goes through its calibration cycle. The fan is NOT DEFECTIVE. □ Install two 1.5V AAA batteries(L) into the remote control (J). To prevent damage to the remote control, remove the battery if not used for long periods of time. -
Page 13: Care And Cleaning
Operation (continued) LEARNING PROCESS NOTE: After the AC power is on, do not press any other button on the remote control before pressing the ON/OFF( ) button. Doing so will cause the procedure to fail. Should you desire to use another remote control (J) unit with your new fan, install one using the steps below: □... -
Page 14: Troubleshooting
Troubleshooting WARNING: Ensure the power is off at the electrical panel box before you attempt any repairs. Refer to the section “Making the Electrical Connections” on page 10. Problem Solution Check main and branch circuit fuses or breakers. □ □ Check line wire connections to the fan and switch wire connections in the switch housing. -
Page 15: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 16 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
