Home Decorators Collection TAGER N383C-MBK Use And Care Manual

Home Decorators Collection TAGER N383C-MBK Use And Care Manual

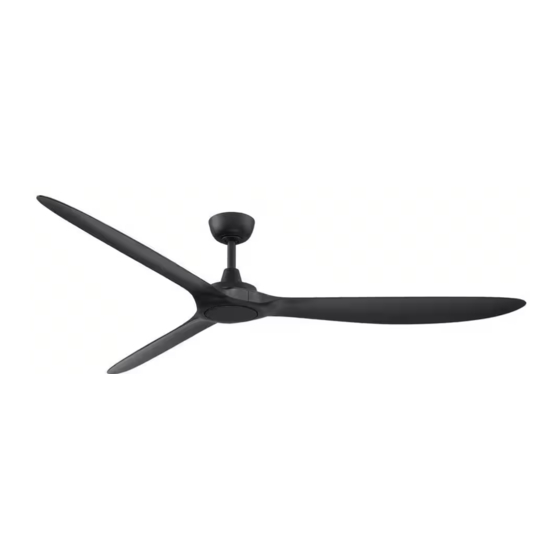

72 in. indoor/covered outdoor ceiling fan

Advertisement

INDOOR/COVERED OUTDOOR CEILING FAN
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE
72 IN. TAGER
call Hubspace Customer Service
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
Item # 1008 615 003
Model # N383C-MBK
THANK YOU
1008 614 912
1008 614 771
N383C-MBK+V8
N383C-MWH

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAGER N383C-MBK and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection TAGER N383C-MBK

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........Assembly .
  • Page 3: Warranty

    Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser.
  • Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw with lock washer (additional) 1.5V AAA battery 3-pin extension cord...
  • Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket Blade Canopy Blade support plate with screw and Canopy bottom cover (preassembled) lock washer Hanger ball/downrod assembly Decorative cover Coupling cover Receiver Fan motor assembly Remote control HOMEDEPOT.COM/HUBSPACE Please contact 1-877-592-5233 for further assistance.
  • Page 6: Installation

    Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°...
  • Page 7: Assembly

    Assembly — Attaching the Fan Blades Attaching the fan blades Preparing the canopy IMPORTANT: Make sure blade screw holes are aligning with Remove the canopy bottom cover (C) from the canopy (B) by correct holes on the motor assembly. There are alignment lines turning the canopy bottom cover (C) counterclockwise.
  • Page 8 Assembly — Hanging the Fan Assembling the fan WARNING: Failure to properly install the cotter pin (FF) could result in the fan loosening and possibly falling. NOTE: If a longer downrod (not included) is needed, take out the screw located in the hanger ball (JJ), lower the hanger ball (JJ) and remove the pin (KK).
  • Page 9 Assembly — Hanging the Fan (continued) Attaching the mounting bracket to the Hanging the fan on the mounting electrical box bracket WARNING: To reduce the risk of fire, electric shock or other WARNING: The tab in the ring must rest in the groove of the hanger ball/downrod assembly (D).
  • Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground White Black conductor WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire). Outlet Box CAUTION: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
  • Page 11 Assembly — Hanging the Fan (continued) Finishing the fan installation WARNING: Make sure the tab on the mounting bracket Outlet Box properly sits in the groove in the hanger ball before attaching the canopy to the bracket by turning the housing until it drops into place.
  • Page 12: Operation

    Operation SETTING UP THE TRANSMITTER NOTE: The remote has been pre-paired in the factory for your convenience. NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children.
  • Page 13 Operation (continued) To clear all other remotes from your fan’s memory, use the steps below: Ensure AC power to the fan is OFF to begin the learning process. Slide the dip switch in the battery compartment to the "0" position. Turn the fan’s AC power ON.
  • Page 14 Operation (continued) Power on/off Fan on and increases fan speed* LED bar Scale indicating fan speed Fan on and decreases fan speed* Comfort Breeze Timer Warm weather Cool weather (Forward) (Reverse) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions.
  • Page 15 Operation (continued) – button, decreases fan speed Pressing and releasing the - button one time will decrease the speed of the fan. Each setting decrease will cause the LED bar to dim slightly more, until the fan has reached the minimum speed setting. At that time the LED bar will be approximately 25% illuminated.
  • Page 16 Operation (continued) INSTALLING THE REMOTE CONTROL HOLDER Attach the remote control holder (PP) with the two remote control holder mounting screws (QQ). Replace the remote control holder cover (RR) into the remote control holder (PP). WARM/COOL WEATHER OPERATING INSTRUCTIONS Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, numbers of fans.
  • Page 17 Operation — Application Setup NOTE: For more information on smart remote setup, please refer to the quick start guide located in the remote pack. NOTE: To use Alexa to change the white temperature of the Questions, problems missing parts? light, please make sure the light is turned on first. Please call Hubspace Customer service 8 a.m.
  • Page 18 Operation — Voice Commands The Tager 72 in. Ceiling Fan works with Alexa and Google Assistant. This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/. Alexa Google When you want to... Ask Alexa to... When you want to...
  • Page 19: Care And Cleaning

    Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically.
  • Page 20 Troubleshooting (Hubspace Problem Solution My hubspace device is not Make sure your device is connected to a power source. connecting to Wi-Fi. Your Internet connection or Wi-Fi network may be down. My device cannot find any Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add. Wi-Fi networks.
  • Page 21 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
