Page 1

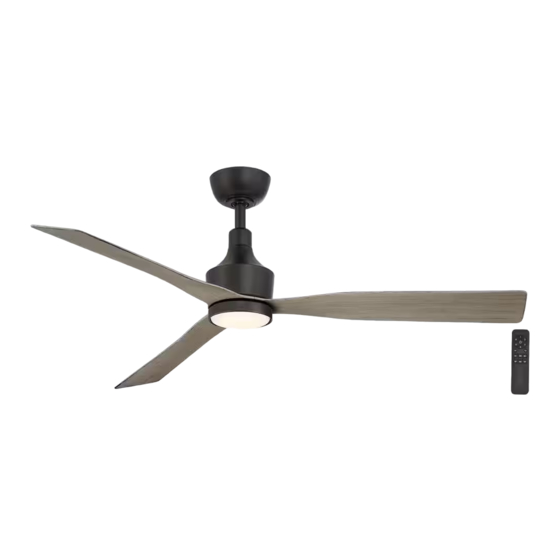

THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.
Page 4
Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw with lock washer (additional) 1.5V AAA battery 2-pin extension cord 3-pin extension cord...
Page 5
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy Blade support plate with screw and Canopy bottom cover (preassembled) lock washer Hanger ball/downrod assembly 20 watt LED light kit assembly Coupling cover Receiver Fan motor assembly Remote control HOMEDEPOT.COM/HUBSPACE Please contact 1-877-592-5233 for further assistance.
Installation MOUNTING OPTIONS WARNING: To reduce the risk of re, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°...
Assembly Preparing the canopy Preparing the motor Remove the cotter pin (GG) and clevis pin (HH), and loosen Remove the canopy bottom cover (C) from the canopy (B) by the two collar set screws (II) from the motor collar. turning the canopy bottom cover (C) counterclockwise. Take out the set screw (JJ) located in the hanger ball (KK), Remove the mounting bracket (A) from the canopy (B) by lower the hanger ball (KK) and remove the cross pin (LL).
Page 8
Assembly — Hanging the Fan Attaching the mounting bracket to the electrical box WARNING: To reduce the risk of re, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
Page 9
Assembly — Hanging the Fan Hanging the fan on the mounting bracket WARNING: The tab in the ring must rest in the groove of the hanger ball/downrod assembly (D). Failure to properly seat the tab in the groove could cause damage to the wiring. Carefully lift the fan motor assembly (F) up to the mounting bracket (A) and seat the hanger ball/downrod assembly (D) in the mounting bracket (A) socket.
Page 10
Assembly — Hanging the Fan (continued) Making the electrical connections Ground conductor White Black WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire). Outlet Box CAUTION: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
Page 11
Assembly — Hanging the Fan (continued) Installing the canopy Attaching the canopy bottom cover NOTE: Adjust the canopy mounting screws (FF) as necessary WARNING: Make sure the tab on the mounting bracket (A) until the canopy (B) and canopy bottom cover (C) are snug. properly sits in the groove in the hanger ball (KK) before attaching the canopy (B) to the mounting bracket (A) by turning the canopy housing until it drops into place.
Page 12
Assembly — Installing the Light Kit Attaching the light kit assembly to the light kit mounting plate CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not suf cient to prevent electric shock.
Operation SETTING UP THE TRANSMITTER NOTE: The remote has been pre-paired in the factory for your convenience. NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children.
Page 14
Operation (continued) Signal light Fan speed Power on/off Comfort Breeze Fan reverse Timer Correlated Color Temperature (CCT) changing Dimmer Light on/off OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions.
Page 15
Operation (continued) Comfort Breeze Pressing the button will activate the Comfort Breeze mode. If you are using Comfort Breeze mode, pressing the button or the fan speed buttons will cancel Comfort Breeze mode and resume normal fan operation. Fan reverse button (Must be pushed when the fan is in operation) Controls fan direction.
Page 16
Operation (continued) INSTALLING THE REMOTE CONTROL HOLDER Attach the remote control holder (UU) with the two remote control holder mounting screws (VV). WARM/COOL WEATHER OPERATING INSTRUCTIONS Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, numbers of fans. NOTE: The fan reverse buttons must be pressed while the fan is running.
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically.
Page 18
Operation — Application Setup NOTE: For more information on smart remote setup, please refer to the quick start guide located in the remote pack. NOTE: To use Alexa to change the white temperature of the Questions, problems missing parts? light, please make sure the light is turned on rst. Please call Hubspace Customer service 8 a.m.
Page 19
Operation — Voice Commands The Ryland 52 in. Ceiling Fan works with Alexa and Google Assistant. This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/. Google Alexa When you want to... Ask Alexa to... When you want to...
Page 20
Troubleshooting — Hubspace Problem Solution My hubspace device is not Make sure your device is connected to a power source. connecting to Wi-Fi. Your Internet connection or Wi-Fi network may be down. My device cannot nd any Make sure you have a 2.4GHz capable Wi-Fi network within range of the device you are trying to add. Wi-Fi networks.
Page 21
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modi cations to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
