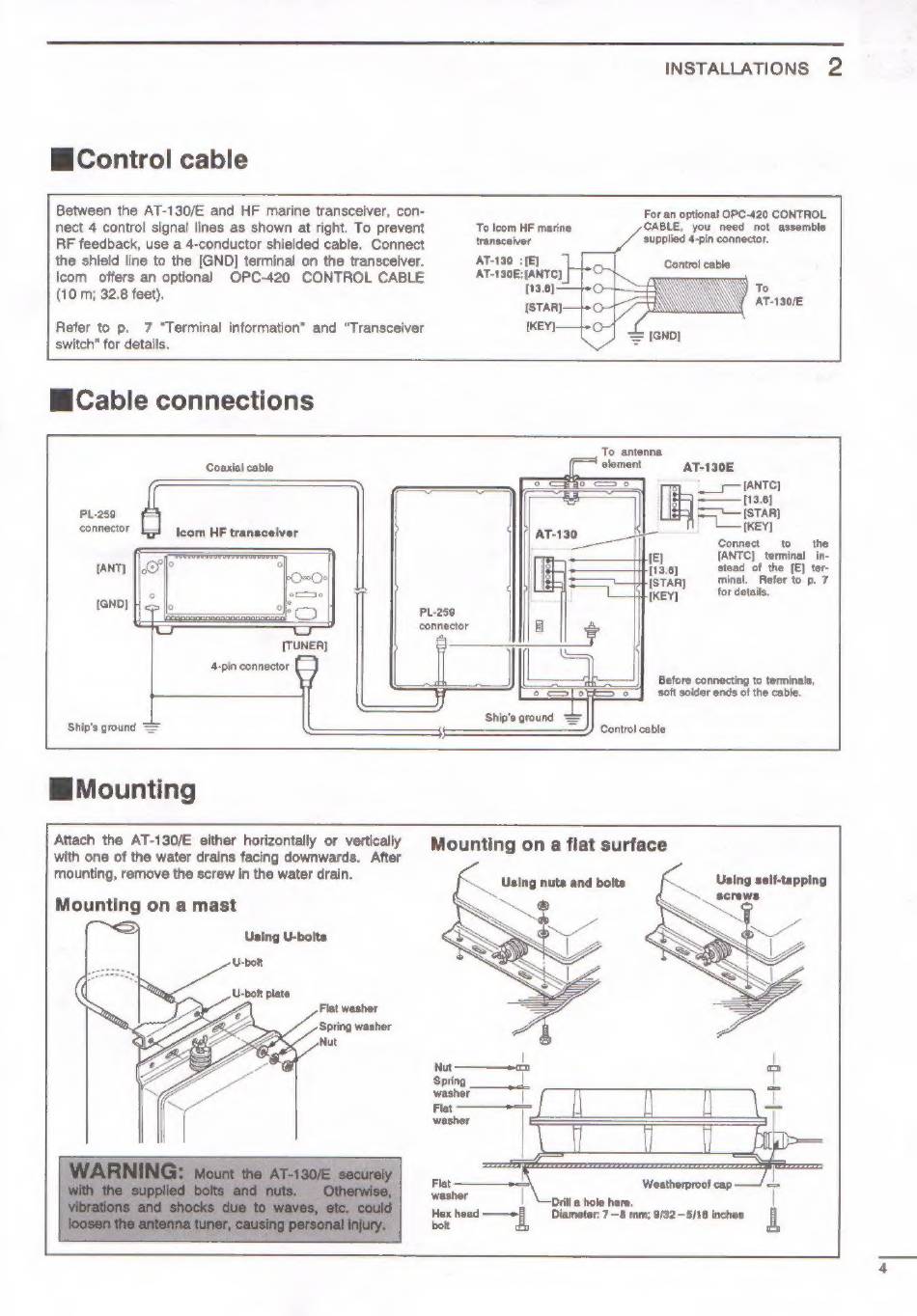

INSTALLATIONS 2
Control cable
Between the AT-130/E and HF marine transceiver, con- For an optional OPC-420 CONTROL
nect 4 contro! signal lines as shown at right. To prevent To Icom HF marine CABLE, you need not assemble
RF feedback, use a 4-conductor shielded cable. Connect transcelver supplied Acpnicp nec
the shield line to the [GND] terminal on the transceiver. AT-130 ;[E] Control cable
Icom offers an optional OPC-420 CONTROL CABLE AT-130E:(ANTC]
Refer to p. 7 "Terminal information" and "Transceiver
switch" for details.
WiCable connections
Coaxial cable
[ANTC] terminal in-
stead of the [E] ter-
minal. Refer top, 7
for details,
Before connecting to terminals,
soft solder ends of the cable.
Ship's ground =
HiMounting
Attach the AT-130/E either horizontally or vertically
with one of the water drains facing downwards. After
mounting, remove the screw in the water drain.
Mounting on a mast
Using U-boits
'Drill a hole here.
Diameter: 7-8 mm; 9/32—5/16 inches i
