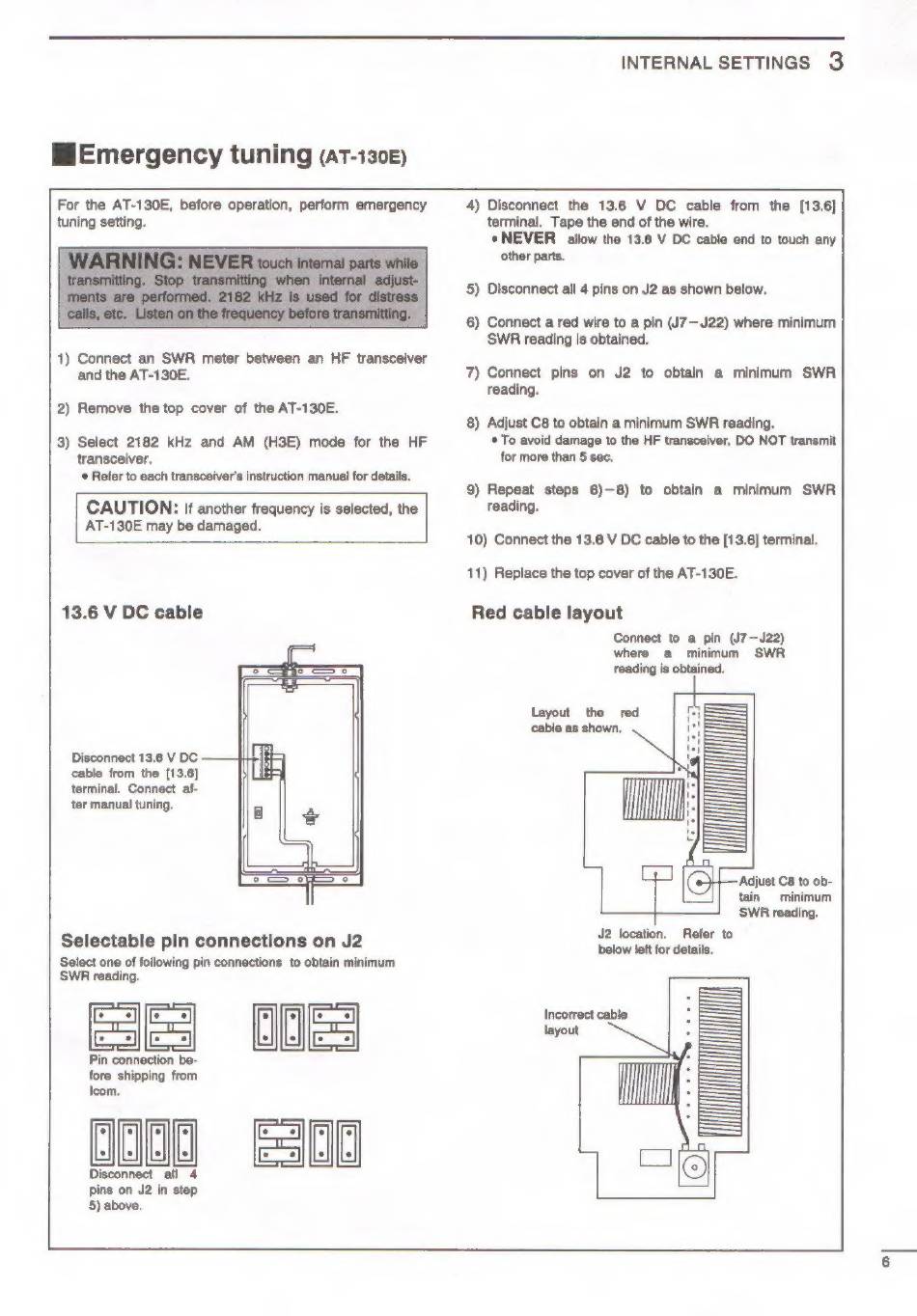

INTERNAL SETTINGS 3
Emergency tuning (at-130E)
For the AT-130E, before operation, perform emergency
tuning setting.
4) Disconnect the 13.6 V DC cable from the [13.6]
terminal. Tape the end of the wire,
¢ NEVER allow the 13.6 V DC cable end to touch any
other parts,
5) Disconnect all 4 pins on J2 as shown below.
6) Connect a red wire to a pin (J7-J22) where minimum
SWR reading is obtained.
1) Connect an SWR meter between an HF transceiver
and the AT-130E. 7) Connect pins on J2 to obtain a minimum SWR
reading.
2) Remove the top cover of the AT-130E.
8) Adjust C8 to obtain a minimum SWR reading.
3) Select 2182 kHz and AM (H3E) mode for the HF * To avoid damage to the HF transceiver, DO NOT transmit
transceiver. for more than 5 sec.
© Refer to each transceiver's instruction manual for d
9) Repeat steps 6)—8) to obtain a minimum SWR
reading.
10) Connect the 13.6 V DC cable to the [13.6] terminal.
11) Replace the top cover of the AT-130E.
13.6 V DC cable Red cable layout
Connect to a pin (J7—J22)
where a minimum SWR
reading is obtained.
Layout the red
cable as shown.
Disconnect 13.6 V DC
cable from the [13,6]
terminal. Connect af-
ter manual tuning.
Adjust C8 to ob-
tain = minimum
SWR reading.
J2 location. Refer to
Selectable pin connections on J2
below left for details,
Select one of following pin connections to obtain minimum
SWR reading.
Pin connection be-
fore shipping from
Icom.
Disconnect all 4
pins on J2 in step
5) above.
