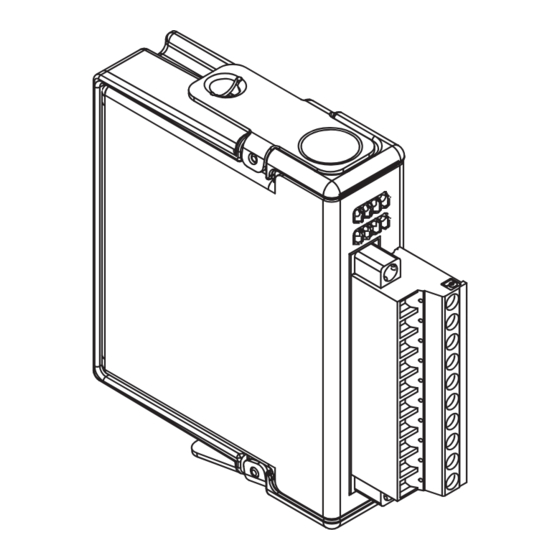

Summary of Contents for National Instruments 9472
- Page 1 (217) 352-9330 | Click HERE Find the National Instruments NI 9472 at our website:...
- Page 2 OPERATING INSTRUCTIONS AND SPECIFICATIONS NI 9472/9474 8-Channel Digital Output Modules Français Deutsch ni.com/manuals Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
-
Page 3: Safety Guidelines
This document describes how to use the National Instruments 9472 and National Instruments 9474 and includes specifications and terminal or pin assignments. In this document, the NI 9472/9474 with screw terminal and NI 9472 with DSUB are referred to inclusively as the NI 9472/9474. Visit and enter ni.com/info... -
Page 4: Safety Guidelines For Hazardous Voltages
This icon denotes that the component may be hot. Touching this component may result in bodily injury. Safety Guidelines for Hazardous Voltages You can connect hazardous voltages only to the NI 9472/9474 with screw terminal. Do not connect hazardous voltages to the NI 9472 with DSUB. - Page 5 Figure 1 shows the NI 9932 connector backshell. Note You can use the NI 9932 connector backshell only with the NI 9472/9474 with screw terminal. Figure 1. NI 9932 Connector Backshell NI 9472/9474 ni.com Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
-
Page 6: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The NI 9472/9474 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nC IIC T4 and Ex nC IIC T4 hazardous locations; and nonhazardous locations only. - Page 7 II 3G and is suitable for use in Zone 2 hazardous locations. If you are using the NI 9472/9474 in Gas Group IIC hazardous locations or in ambient temperatures of –40 °C ≤ Ta ≤ 70 °C, you must use the device in an NI chassis that has been evaluated as EEx nC IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
- Page 8 Power supply and module cables must be separated on opposite sides of the enclosure and must enter and exit through opposing enclosure walls. © National Instruments Corp. NI 9472/9474 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
- Page 9 Connecting the NI 9472/9474 The NI 9472/9474 provides connections for eight digital output channels. Vsup Vsup Vsup Vsup Vsup Vsup Vsup Vsup Vsup Figure 2. NI 9472/9474 Terminal and Pin Assignments NI 9472/9474 ni.com Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
- Page 10 COM. National Instruments recommends you provide independent COM and V wiring for each channel of the NI 9472 with DSUB to minimize current flow in the COM and wiring. The COM pins on the NI 9472 with DSUB are internally connected..
- Page 11 Connect the positive lead of the power supply to and the negative lead of the power supply to COM. The V pins on the NI 9472 with DSUB are internally connected. You can connect only one external voltage supply to the device. Refer to the...
- Page 12 You can directly connect the NI 9472/9474 to a variety of industrial devices such as solenoids, motors, actuators, relays, and lamps. Make sure the devices you connect to the NI 9472/9474 are compatible with the output specifications of the module. Refer to...
-
Page 13: Increasing Current Drive
Increasing Current Drive Each channel of the NI 9472 has a continuous output current of 0.75 A, and each channel of the NI 9474 has a continuous output current of 1 A. If you want to increase the output current to a device, you can connect any number of channels together in parallel. -
Page 14: Wiring For High-Vibration Applications
Wiring for High-Vibration Applications If an application using the NI 9472/9474 with screw terminal is subject to high vibration, National Instruments recommends that you either use ferrules to terminate wires to the detachable screw-terminal connector or use the NI 9932 backshell kit to protect the connections. - Page 15 The NI 9472/9474 is short-circuit proof in accordance with IEC 1131-2 and provides overcurrent protection. Understanding Short-Circuit-Proof Devices Each channel on the NI 9472/9474 has circuitry that protects it from current surges resulting from short circuits. Whether the module suffers damage from these overcurrent conditions depends on the following factors: •...
-
Page 16: Detecting An Overcurrent Condition
NI 9472/9474. If the power supply you are using with the NI 9472/9474 cannot supply more than 13 A, the module may be damaged if a short-circuit condition occurs. -
Page 17: Resetting Channels After An Overcurrent Condition
If the chassis supports sleep mode, refer to the software help for information about enabling sleep mode. Visit and enter for information about ni.com/info cseriesdoc C Series documentation. NI 9472/9474 ni.com Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com... -
Page 18: Specifications
The following specifications are typical for the range –40 to 70 °C unless otherwise noted. All voltages are relative to COM unless otherwise noted. The specifications are the same for the NI 9472 and the NI 9474 unless otherwise noted. - Page 19 Output impedance (R Typical ........0.07 Ω Maximum ........0.13 Ω Continuous output current (I ), per channel NI 9472........0.75 A max NI 9474........1 A max Output voltage (V ) ......V – (I · R I/O protection Voltage........
- Page 20 Output delay time (full load) NI 9472........100 μs max NI 9474........1 μs max MTBF NI 9472........1,113,301 hours at 25 °C; Bellcore Issue 2, Method 1, Case 3, Limited Part Stress Method NI 9474........479,889 hours at 25 °C;...
-
Page 21: Physical Characteristics
(0.39 in.) of insulation stripped from the end Torque for screw terminals ....0.5 to 0.6 N · m (4.4 to 5.3 lb · in.) NI 9472/9474 ni.com Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com... - Page 22 2.5 mm Weight NI 9472/9474 with screw terminal ......150 g (5.3 oz) NI 9472 with DSUB....145 g (5.1 oz) Safety NI 9472/9474 with Screw Terminal Safety Voltages Connect only voltages that are within the following limits. Channel-to-COM ......30 VDC max Isolation Channel-to-channel ....
- Page 23 This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe. Do not connect the NI 9472/9474 with screw Caution terminal to signals or use for measurements within Measurement Categories III or IV.
- Page 24 Such voltage measurements include signal levels, special equipment, limited-energy parts of equipment, circuits powered by regulated low-voltage sources, and electronics. Do not connect the NI 9472 with DSUB to Caution signals or use for measurements within Measurement Categories II, III, or IV.
- Page 25 Canada (C-UL) ......... Class I, Division 2, Groups A, B, C, D, T4; Class I, Zone 2, Ex nC IIC T4 Europe (DEMKO)......EEx nC IIC T4 NI 9472/9474 ni.com Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
- Page 26 Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Refer to the manual for the chassis you are using for more information about meeting these specifications.
-
Page 27: Shock And Vibration
Shock and Vibration To meet these specifications, you must panel mount the system. If you are using the NI 9472/9474 with screw terminal, you also must either affix ferrules to the ends of the terminal wires or use the NI 9932 backshell kit to protect the connections. - Page 28 To obtain the DoC for this product, visit , search by module number or ni.com/certification product line, and click the appropriate link in the Certification column. © National Instruments Corp. NI 9472/9474 Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
-
Page 29: Environmental Management
Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers. For additional environmental information, refer to the NI and the Environment Web page at . -
Page 30: Where To Go For Support
China RoHS compliance, go to ni.com/ environment/rohs_china Where to Go for Support The National Instruments Web site is your complete resource for technical support. At you have access to ni.com/support everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. - Page 31 Sweden 46 (0) 8 587 895 00, Switzerland 41 56 2005151, Taiwan 886 02 2377 2222, Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 NI 9472/9474 ni.com Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
- Page 32 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
